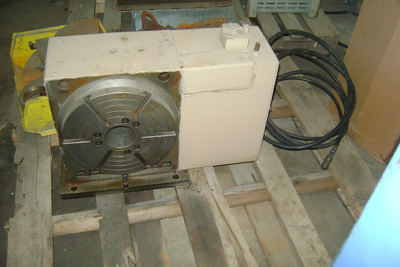

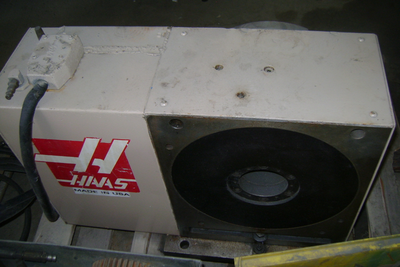

Used 2001 HAAS HRT310 | Tables, Rotary

SPECIFICATIONS:
DIAMETER -------------------------- 12.2 in
NUMBER OF STD T-SLOTS ------------- 6 @ 60°
MAX SPEED ------------------------- 0.001 TO 75°/SEC
MAX TORQUE ------------------------ 300 FT-LB
RUNOUT MAX ------------------------ 0.0010 in
BACKLASH -------------------------- 30 ARC-SEC
CENTER HEIGHT --------------------- 9.000 ± 0.001 in
GEAR RATIO ------------------------ 72:1
TIMING ---------------------------- 2:1
SPINDLE BORE ?ß-------------------- 3.250 X 9.875 in
BRAKE TORQUE @ 100 PSI/6.9 BAR ---- 500 FT-LB
MAX ROTATION/STEP ----------------- 999.999°
RESOLUTION ------------------------ 0.001°
ACCURACY (±) ---------------------- 15 ARC-SEC
REPEATABILITY --------------------- 10 ARC-SEC
WORM GEAR DIA --------------------- 9.4 in
POWER REQUIREMENT ----------------- 115 ± 10% VAC @ 15 A
AIR PRESSURE MAX ------------------ 120 PSI
OPERATING TEMP (MAX AMBIENT) ------ 100°F
DUTY CYCLE FULL/LOW SPEED --------- 50/100%
BRUSHLESS CONTROL ----------------- 14.2 LB
TABLE ----------------------------- 435 LB
FEATURES:
SIGMA 1 MOTOR
AIR
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
DELIVERY:
IMMEDIATE, SUBJECT TO PRIOR SALE
