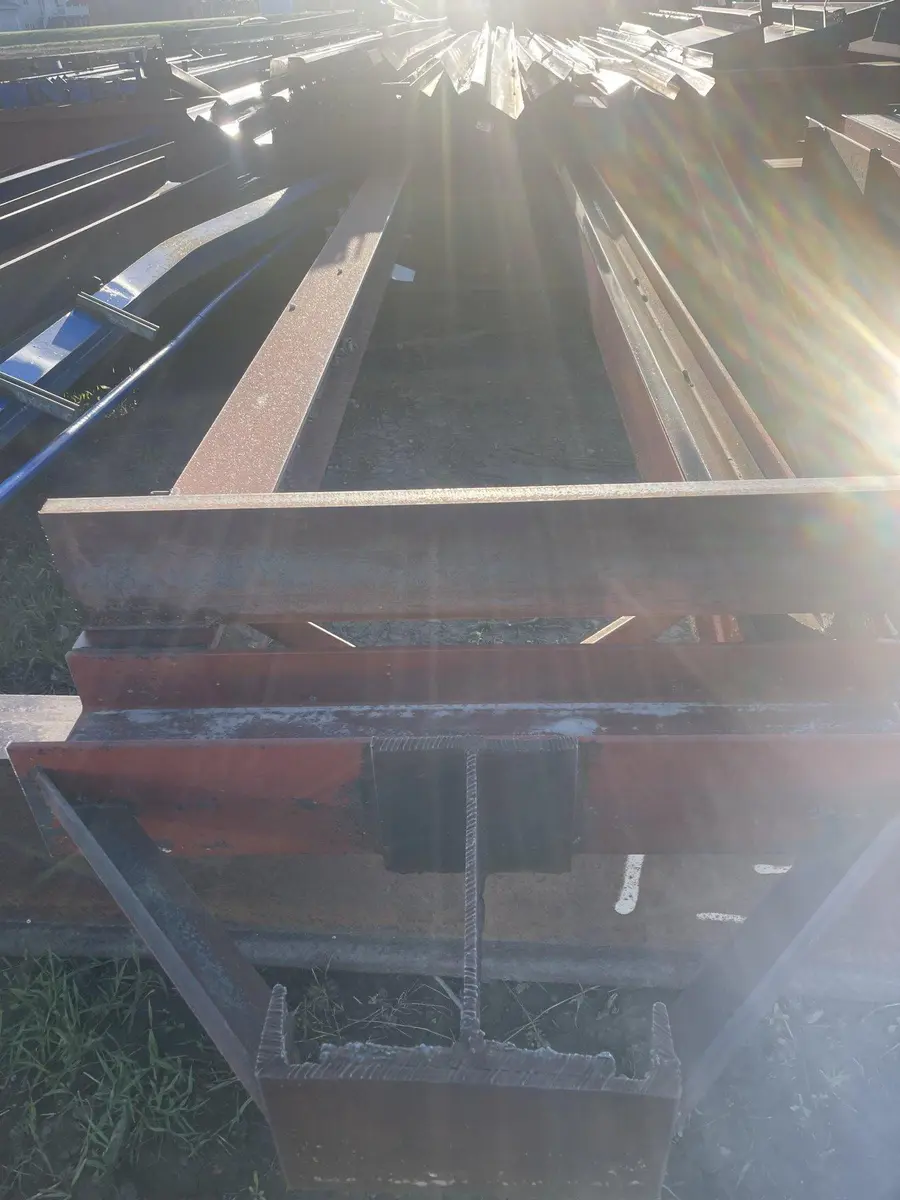

HARRINGTON 2 TON GANTRY BRIDGE CRANE

SPECIFICATIONS:
OVERALL LENGTH OF I-BEAM ----------------- 40 ft
WIDTH ------------------------------------ 16-1/2 in X 10-5/16 in
FLANGE THICKNESS ------------------------- 0.655
WEB THICKNESS ---------------------------- 0.415

OVERALL LENGTH OF CAP CHANNEL ------------ 40 ft
WIDTH ------------------------------------ 14 7/8 (LEG 3-3/8)
FLANGE THICKNESS ------------------------- TAPERED
WEB THICKNESS ---------------------------- 0.450

OVERALL LENGTH OF LEGS ------------------- 15 ft 11/12 in
WIDTH ------------------------------------ 8-5/16 in X 8 in
FLANGE THICKNESS ------------------------- 0.563
WEB THICKNESS ---------------------------- CAPPED

WIDTH OF LEGS FROM OUTSIDE OF BEAMS ------ 4 ft
LEG ANCHOR BOLT SIZE --------------------- 3/4 EACH
FEATURES:
(1) 2-TON HARRINGTON HOISTS W/ 15 ft LIFT
MODEL NER020S - S/N: NERIA-419-033073
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
DELIVERY:
IMMEDIATE, SUBJECT TO PRIOR SALE
