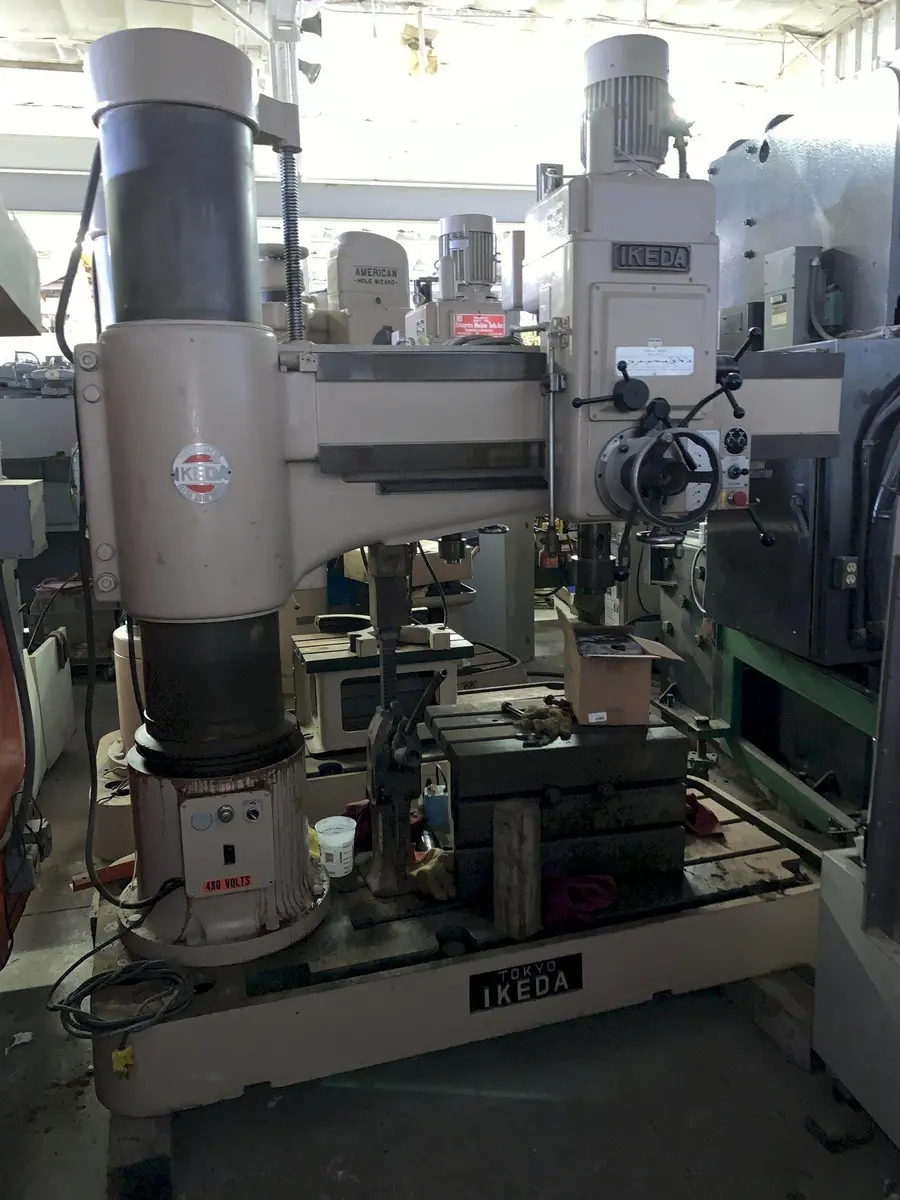

Used 1978 IKEDA RM-1375 | Drills, Radial

SPECIFICATIONS: COLUMN TO SPINDLE CENTER (MIN/MAX) -- 10 in /53.5 in
COLUMN TO SPINDLE BASE (MIN/MAX) ---- 12.5 in /54.5 in
COLUMN DIAMETER --------------------- 13-5/8 in
ARM LENGTH -------------------------- 4 ft
SPINDLE STROKE ---------------------- 14.5 in
USABLE SPACE OF BASE ---------------- 57.25 in X 36 in
HEIGHT OF BASE ---------------------- 8.5 in
BEARING DIAMETER -------------------- 2-5/8 in
QUILL DIAMETER ---------------------- 3-5/8 in
SPINDLE SPEEDS ---------------------- (12) 30-1500 RPM
MORSE TAPER SPINDLE ----------------- NO. 5
SPINDLE FEEDS ----------------------- (9) 0.003 in - 0.40 in
MOTOR ------------------------------- 7.5 HP
ELECTRICS --------------------------- 220/440V, 3 PHASE
MACHINE WEIGHT ---------------------- 8,000 LBS

EQUIPPED WITH:

T-SLOTTED BOX TABLE
POWER ELEVATION

SPECIFICATIONS SUBJECT TO VERIFICATION

DELIVERY: IMMEDIATE, SUBJECT TO PRIOR SALE
