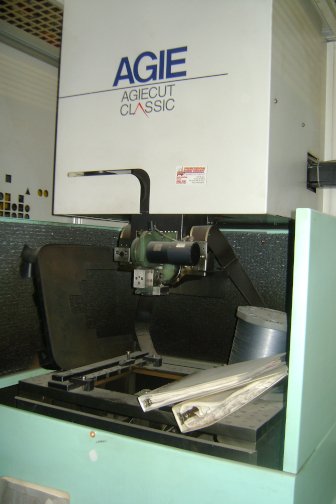

Used 2001 AGIE AC CLASSIC 2 | EDM, Conventional

SPECIFICATIONS:
EQUIPMENT DIMENSIONS ---------------- 65" X 80" X 87"
WEIGHT OF EQUIPMENT ----------------- 5,910 LBS
RUN HOURS --------------------------- 522
UTILITIES:
RATED LINE POWER -------------------- 9,7 KW
LINE VOLTAGE ------------------------ 3 X 400 V ± 10%
MAX. WORKPIECE DIMENSIONS ----------- 30" X 22" X 10"
(2S: WITH BATH, H MAX. = 150MM)
MAX. WORKPIECE WEIGHT --------------- WITH BATH 450 LBS
TRAVELS: X-AXIS TRAVEL -------------- 13.77"
Y-AXIS TRAVEL -------------- 9.84"
Z-AXIS TRAVEL -------------- 10.7"
U/V AXES ---------------------------- ± 70/ ± 70MM
MAX. TAPER <° / HEIGHT -------------- 30° / 100 MM
HIGH SPEED MOTION:
X,Y AXES --------- 35" /MIN
U/V/Z AXES ------- 24" /MIN
DRIVES: X/Y/U/V/Z AXES -------------- BRUSHLESS AC SERVOMOTORS
SURFACE FINISH -------------------- 12 RMS
TOLERANCE (STANDARD) --------------- 0.00024"
SMALLEST WIRE (STANDARD) ------------ 0.008"
CONTROL SCREEN ------------------- COLOR TFT 15" XGA
THREADABLE HEIGHT ----------------- 9.84"
FLOOR TO WP CLAMPING LEVEL ------------ 42.3"
AGIEJET WIRE THREADING SYSTEM:
THREADABLE HEIGHT ---------------- UP TO 10 in
THREADING NOZZLES----------------- 2/MM / 1MM OPTION
COMBINATION WIRE GUIDE SYSTEMS:
WIRE DIAMETER -------------------- 0.2 ÷ 0.33 MM
GUIDE ------------------------ CYLINDRICAL TO 2°
TOROIDE GUIDE -------------------- 2° ÷ 30°
WIRE DRIVE:
WIRE SPOOL ----------------------- UP TO 25 KG
WIRE TENSION --------------------- 0 ÷ 25 N
WIRE SPEED ----------------------- 60 ÷ 300 MM/S
WIRE FEED ------------------------ SEMI-AUTOMATIC
WIRE DISPOSAL -------------------- CHOPPER
WORK TANK:
DOOR ----------------------------- MANUAL DROP TYPE
ACCESSIBILITY -------------------- FRONT
CLAMPING BASE -------------------- LEFT/RIGHT BEAM WITH SUPPORTING PLATE
OPERATING MODES ------------------ AGIEDUOFLUX
FLUSHING:
PRESSURE ------------------------ 0.2 ÷ 18 BAR
PROGRAMMABLE COMBINATION --------------------- COAXIAL FLUSHING/HIGH & LOW PRESSURE/SUCTION
FILTER (2S) ------------------------ 4 CASINGS WITH 8 CARTRIDGE FILTERS
CONTROL ---------------------------- AGIECUT/AGIEVISION
EQUIPPED WITH:
- REMCOR CHILLER S/N 636-835-134
- CAMTEK MECANIC- UNIVERSAL TABLE
- AGIE JOGGER
- VOLTAGE 480
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
DELIVERY:
IMMEDIATE, SUBJECT TO PRIOR SALE
