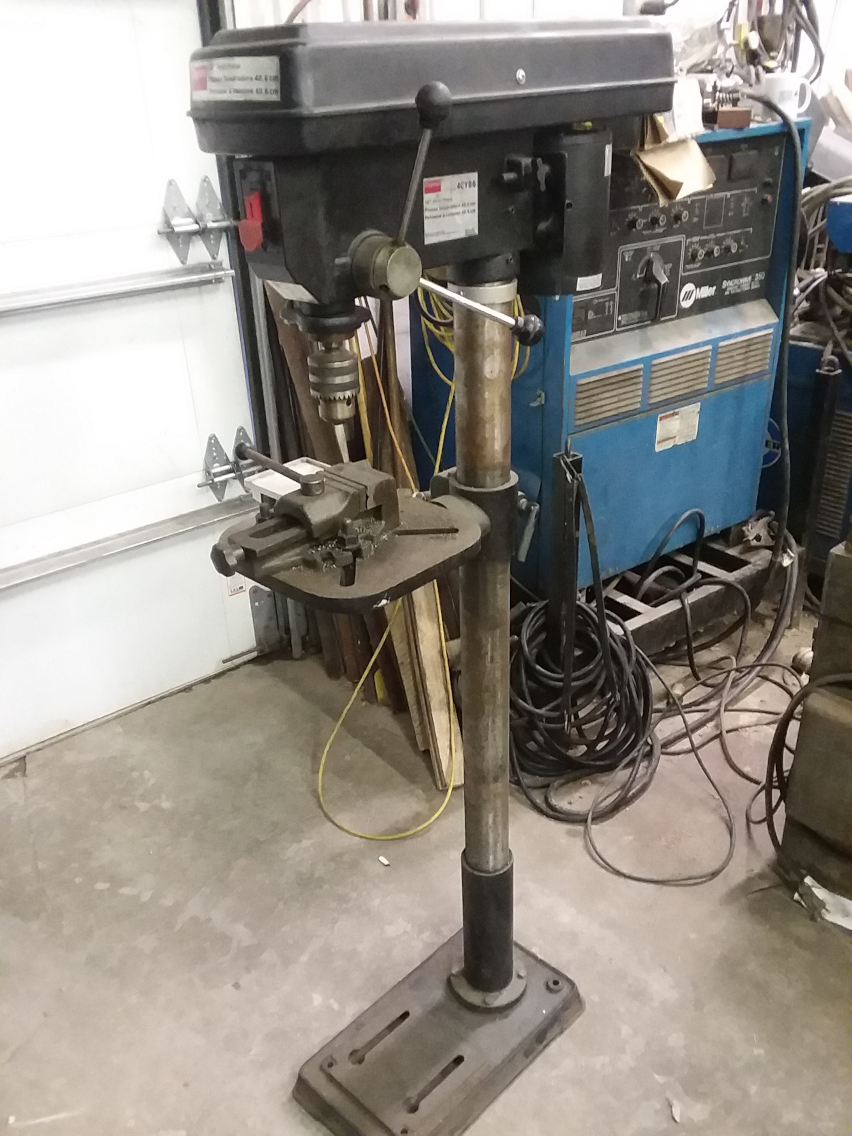

Used DAYTON 4CY856 | Presses, Drill

SPECIFICATIONS:
SWING ----------------------------- 16 IN
VOLTAGE --------------------------- 115/230
MOTOR HP -------------------------- 1/2
CHUCK SIZE ------------------------ 5/8 IN
NUMBER OF SPEEDS ------------------ 12
SPINDLE SPEED --------------------- 260 TO 3,080 RPM
CAPACITY STEEL -------------------- 1/2 IN
CAPACITY CAST IRON ---------------- 5/8 IN
SPINDLE TAPER --------------------- MT2
SPINDLE TO BASE ------------------- 47-3/4 ft
SPINDLE TO TABLE ------------------ 30-1/4 ft
SPINDLE TRAVEL -------------------- 3-1/4 IN
BASE SIZE ------------------------- 11 1/8 X 19 5/8 IN
TABLE WORK SURFACE ---------------- 10-1/2 X 10-1/2 IN
AMPS AC --------------------------- 8.6/4.3
HZ -------------------------------- 60
PHASE ----------------------------- 1
OVERALL DEPTH --------------------- 23-1/4 ft
OVERALL HEIGHT -------------------- 62 ft
OVERALL WIDTH --------------------- 13-3/4 ft
QUILL DIA. ------------------------ 1-5/8 ft
COLUMN DIA. ----------------------- 2-7/8 ft
TABLE SLOTS ----------------------- 5/8 ft W X 3-1/4 ft L
TILTING ANGLE --------------------- TABLE 45 RIGHT/LEFT AND
ROTATES A FULL 360°
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
DELIVERY:
IMMEDIATE, SUBJECT TO PRIOR SALE
