Used VERSON 2078 | Brakes, Mechanical

SPECIFICATIONS:

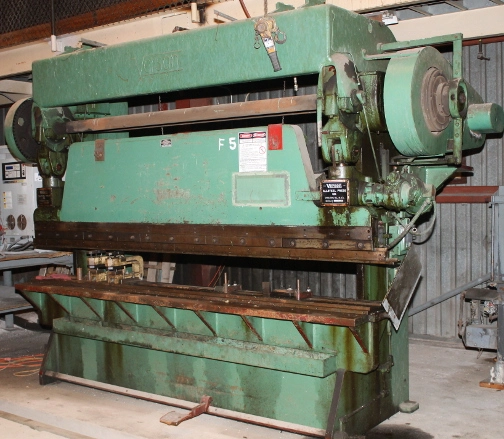

50 TON PRESS BRAKE MODEL 2078
LENGTH OF BED AND RAM ----------------------96 in
DISTANCE BETWEEN HOUSINGS-------------------78 in
STANDARD STROKE ----------------------------2 1/2 in
MAXIMUM STROKE, IN STANDARD FRAME-----------3 1/2 in
STANDARD ADJUSTMENT ------------------------3 in
STANDARD DIE SPACE FROM BED ----------------12 in
HEIGHT OF DIE HOLDER -----------------------6 1/4 in
DEPTH OF GAP -------------------------------7 in
THICKNESS OF HOUSING PLATES ----------------1 1/2 in
THICKNESS OF RAM PLATE ---------------------3 in
THICKNESS OF BED, TWO PLATES - EACH --------1 1/4 in
SPACE BETWEEN BED PLATES -------------------2 1/4 in
WEIGHT OF FLYWHEEL -------------------------400 LBS
SPEED OF FLYWHEEL - RPM --------------------760
SIZE AND SPEED OF MOTOR - H.P. AND
R.P.M.--------------------------------------3-1800
STROKES PER MINUTE--------------------------40
RATIO OF GEARING ---------------------------19:1
FLOOR SPACE OVERALL- F. TO B. X R. TO L. ---60 X 111
HEIGHT OVERALL -----------------------------85 in
WEIGHT, NET --------------------------------8000 LBS
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
DELIVERY:
IMMEDIATE, SUBJECT TO PRIOR SALE
