Used QUINCY 5120 | AIR COMPRESSORS, WATER DRIVEN
Have one to sell?
ConditionUsed
1 available

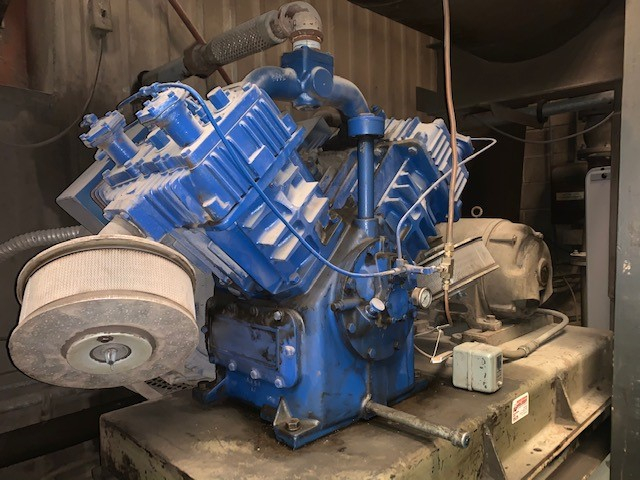

(1) PREOWNED QUINCY AIR COMPRESSOR, V PISTON, MOUNTED ON BASE, MODEL #: 5120, S/N: 850615L
SPECIFICATIONS:
1770 RPM
25 HP MOTOR 3 PHASE
TWO-STAGE BASIC COMPRESSOR
HP RANGE @ 175 PSI --------------------- 10-25
BORE L.P. ------------------------------ 6 in
BORE H.P. ------------------------------ 3-1/4 in
STROKE --------------------------------- 4 in
NUMBER OF CYLINDERS -------------------- V4
MIN/MAX RPM ---------------------------- 400/1040
ACFM @ 175 PSI MIN/MAX RPM ------------- 36.5/94.97
MAX CONT. PRESSURE --------------------- 200 PSIG
MAX INTERMIT PRESSURE ------------------ 250 PSIG
APPROX SHIPPING WEIGHT ----------------- 815 LBS
DIMENSIONS ----------------------------- 32 in X 41 in X 31 in
