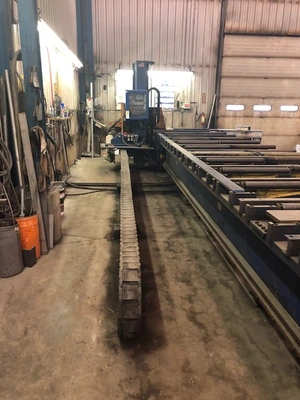

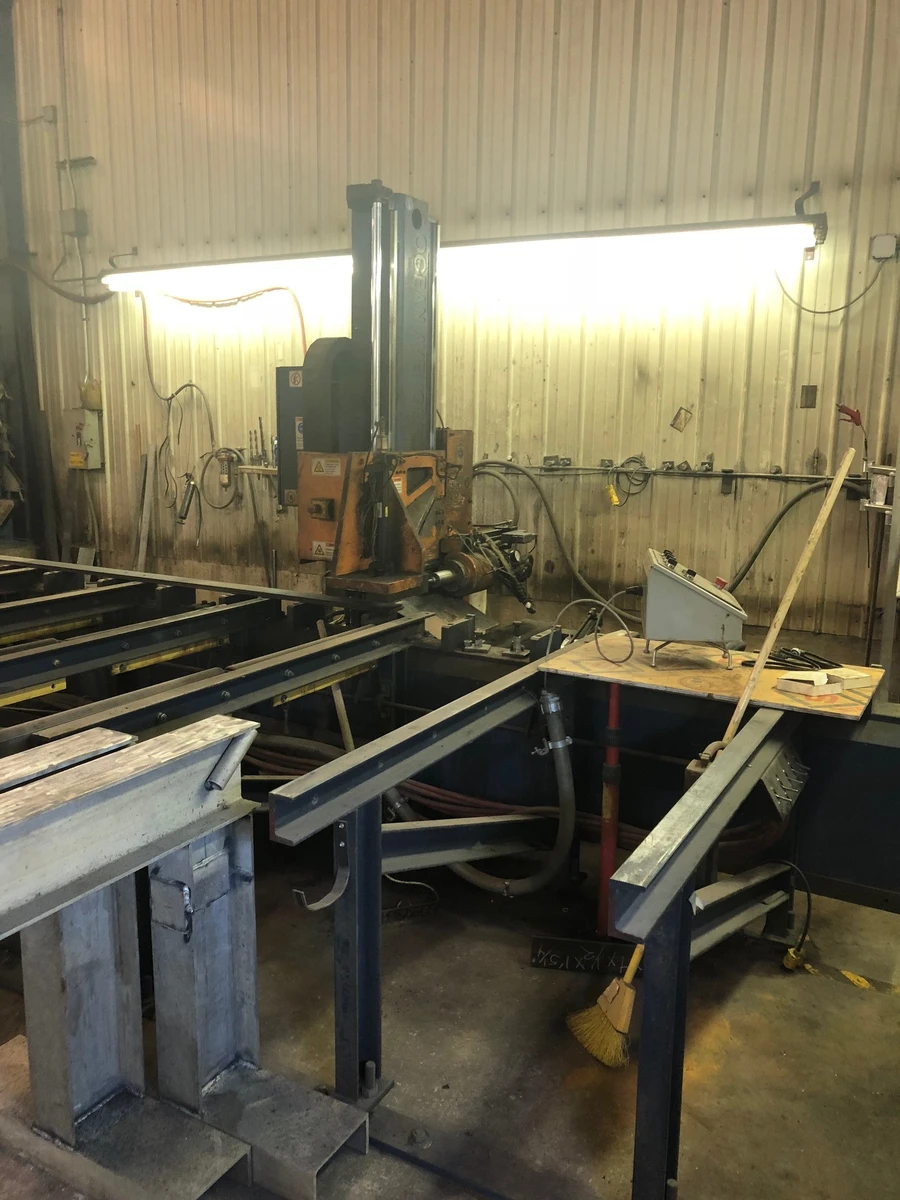

Used 2006 PEDDINGHAUS MDL1000/1B | Beam / Drill Lines

SPECIFICATIONS:
STD MFG SPECS - PLEASE VERIFY ACTUAL MACHINE
PROFILE SIZE----------------- 23" X 37- 1/8
MAX. DRILL DIAMETER---------- 1-9/16" @ 100% DUTY CYCLE
MAX. DRILL DIAMETER---------- 2" @ REDUCED PRODUCTION
MATERIAL THICKNESS----------- 1-1/4"
MAX. SPEED X-AXIS------------ 120' PER MIN.
MAX. SPEED Y-AXIS------------ 120' PER MIN.
SPINDLE MOTOR---------------- 13.5 HP DUAL-RANGE HYD-MOTOR
SPINDLE SPEEDS--------------- 200-850 RPM VARIABLE
DRILLING FEED RATE----------- 2" - 10" PER MIN. VARIABLE
MAX. SPINDLE STROKE---------- 13"

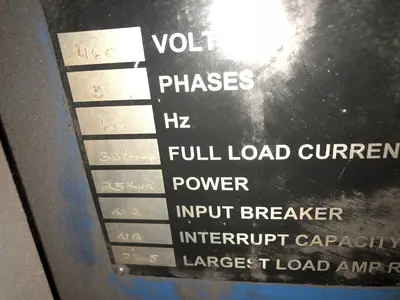

ELECTRICS ------------------- 460V, 3PH
FEATURES:
UNDER POWER FOR INSPECTIONSTD MFG SPECS - PLEASE VERIFY ACTUAL MACHINETHE OCEAN FLIPPER IS THE MOST POPULAR BEAM FLIPPING DEVICE BECAUSE IT:
* SAVES TIME, MONEY AND EFFORT IN TURNING AND POSITIONING MATERIAL.
* ELIMINATES THE NEED TO TIE UP OVERHEAD CRANES OR FORKLIFTS.
* ELIMINATES THE NEED FOR LABOR ASSISTANCE IN MATERIALHANDLING.
* MINIMIZES OPERATOR FATIGUE FROM HEAVY LIFTING AND EXCESSIVE WALKING BACK AND FORTH.
* ENSURES EASY PROFILE ALIGNMENT TO DRILL / PROCESSING LINE DATUM BLOCKS.
* KEEPS WELDERS WELDING AND NOT STANDING IDLE WAITING FOR THE CRANE.
* MAXIMIZES OPERATOR SAFETY.

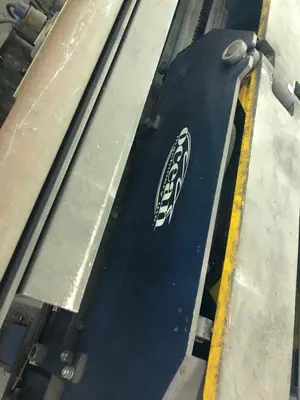

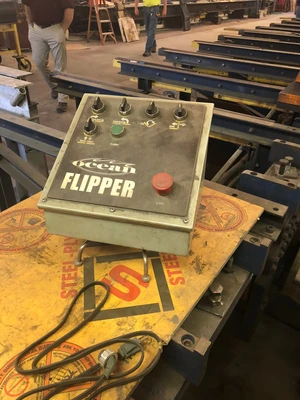

THE OCEAN FLIPPER BEAM ROTATOR WORKS WITH:
* ANY FITTING / WELDING OPERATION WHERE PROFILES NEED TO BE ROTATED FOR WELDING ATTACHMENTS.
* ANY SAW LINE, SHOT BLAST LINE OR PAINTING OPERATION WHERE BEAMS NEED TURNING PRIOR TO THE NEXT STAGE.
EQUIPPED WITH:

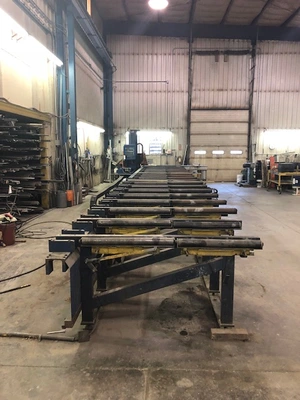

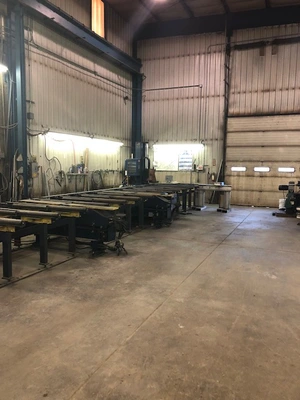

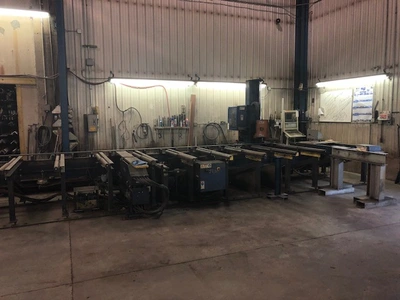

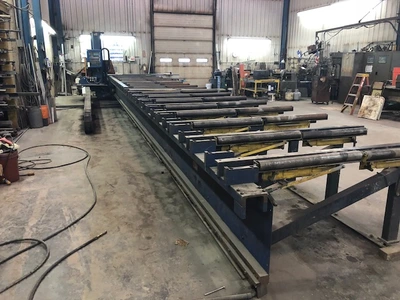

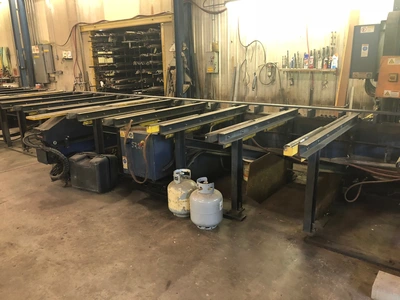

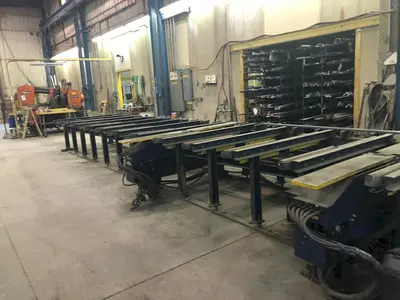

* 40' CONVEYOR WITH BEAM FLIPPER
* MAXIMUM PROFILE SIZE 36 in (914MM)
* FLIPPING CAPACITY 26,000 LBS (11,800KG)
* WORKING HEIGHT 35 in 1.5 in (890MM 38MM)
* ELECTRICAL REQUIREMENT 110V SINGLE PHASE
* ELECTRICAL REQUIREMENT (FOR OPTIONAL HYDRAULIC UNIT) 230V/460V 3-PHASE
* HYDRAULIC POWER REQUIREMENT (IF CUSTOMER SUPPLIED) 1,200 - 2,500 PSI, 15GPM MINIMUM
* HYDRAULIC TANK SIZE (IF CUSTOMER SUPPLIED) 15 GALLON TANK MIN PER PAIR

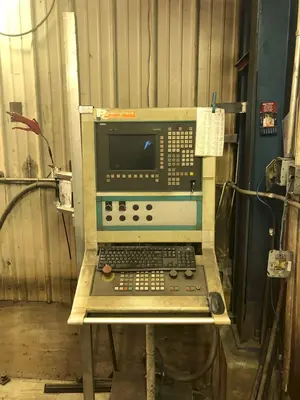

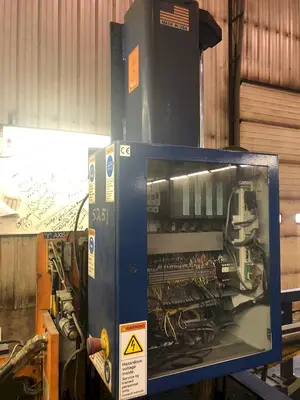

* SIEMENS SINUMERIK CNC CONTROL
* TOOL GRINDER & DRILL BITS

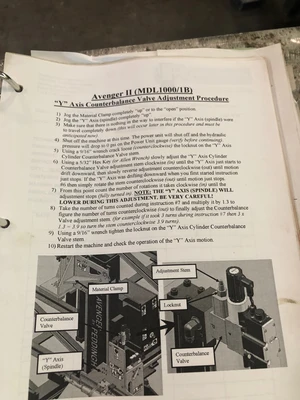

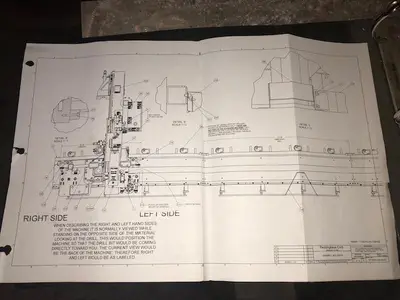

* MANUALS SPECIFICATIONS
NOTES:
SUBJECT TO VERIFICATION
DELIVERY:
IMMEDIATE, SUBJECT TO PRIOR SALE
