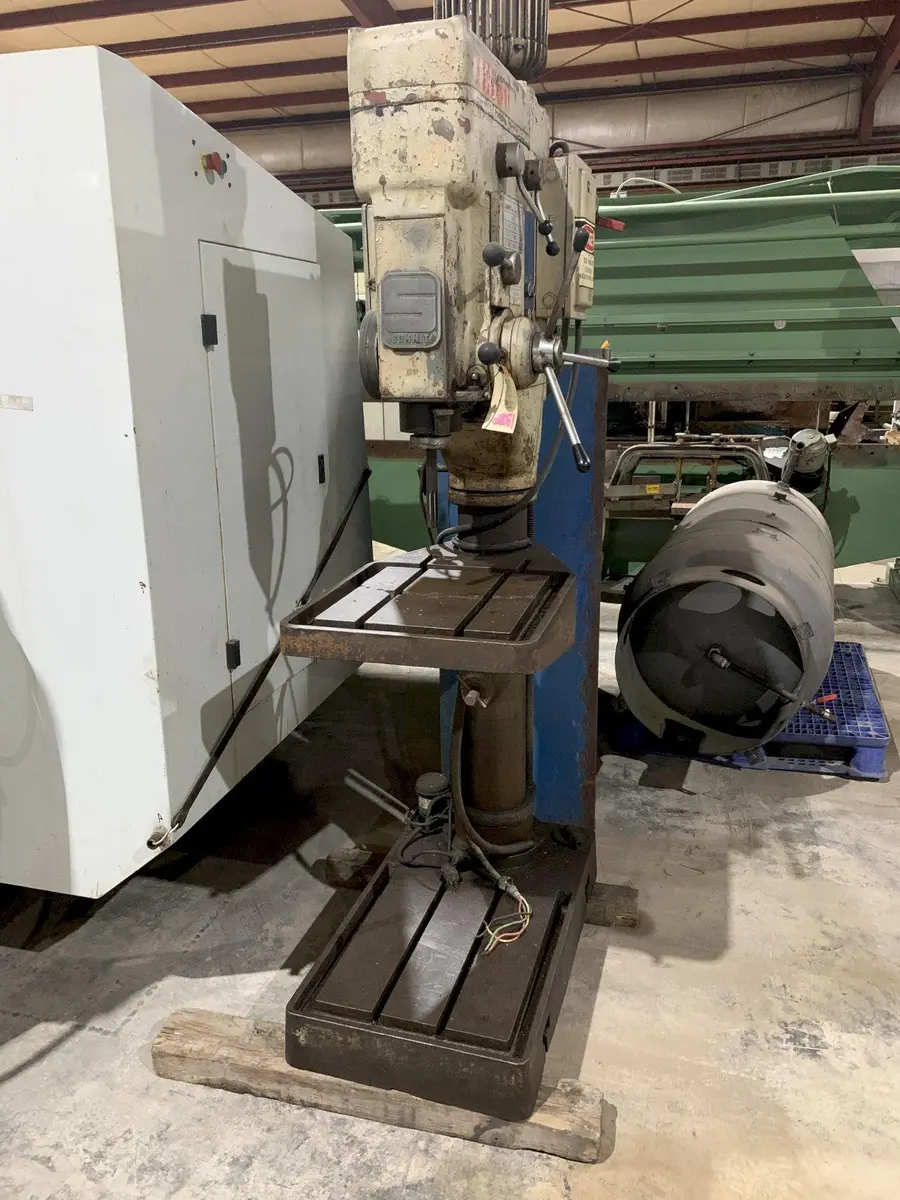

Used 1974 SUMMIT 59R | Presses, Drill

SPECIFICATIONS:
DRILLING CAPACITY IN MILD STEEL ------------ 1 3/4 in
COLUMN DIAMETER ---------------------------- 7 in
CENTER OF SPINDLE TO COLUMN ---------------- 15 1/2 in
MAXIMUM DIAMETER OF WORK PIECE ------------- 28 1/2 in
SPINDLE TRAVEL ----------------------------- 9 1/2 in
SPINDLE TAPER ------------------------------ #5 MT
SPINDLE SPEEDS (9) ------------------------- 48 - 900 RPM
SPINDLE FEEDS (4) -------------------------- .0025 - .005 IPR
TABLE SIZE --------------------------------- 16 in x 17 1/2 in
SPINDLE NOSE TO TABLE (MAXIMUM) ------------ 32 in
SPINDLE NOSE TO BASE (MAXIMUM) ------------- 45 in
SIZE OF BASE ------------------------------- 17 in X 22 in X 5 1/2 in
MAIN MOTOR --------------------------------- 4 HP
OVERALL MACHINE HEIGHT --------------------- 94 1/2 in
ELECTRICS ---------------------------------- 220/440V, 3PH
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
DELIVERY:
IMMEDIATE, SUBJECT TO PRIOR SALE
