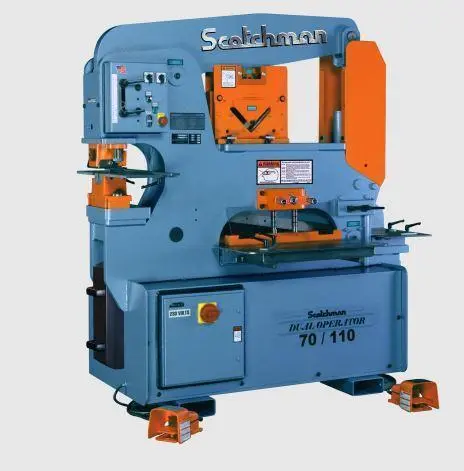

New SCOTCHMAN DO 70/110-24M | Testers, Miscellaneous

SPECIFICATIONS:
RATED ON: 65,000 PSI TENSILE A 36 MILD STEEL PUNCHING CAPACITY --------------- 70 TON, 1-1/8 in IN 3/4 in
SPECIAL TOOLING ----------------- 4 in MAX. DIA.
THROAT DEPTH -------------------- 9 in
FLAT BAR SHEAR ------------------ 110 TON
(SABRE BLADE - STD) ------------- 24 in LENGTH
                                                       1 in X 6 in
                                                       3/8 in X 24 in
ANGLE SHEAR 90° ----------------- 6 in X 6 in X 1/2 in
ANGLE SHEAR 45° ----------------- 3 in X 3 in X 3/8 in
(WITH BAR SHEAR) ---------------- 4 in X 4 in X 1/2 in
BRAKE 12 in ----------------------- 65 TON
BRAKE 24 in ----------------------- 45 TON
OPEN END BRAKE ------------------ MAX. 1/4 in X 6 in
FLAT OR ANGLE IRON PIPE NOTCHER -------------------- 3/4 in
SCHEDULE 40 I.D. ---------------- 1 in
                                                      1-1/4 in
                                                      1-1/2 in
                                                      2 in
90° V. NOTCHER ------------------ 6 in X 6 in X 5/16 in
RECTANGLE NOTCHER --------------- 3 in X 5 in X 3/8 in
                                                            3 in X 4 in X 1/2 in
V. NOTCH ------------------------ 3 in X 3 in X 3/8 in
NOTCHING IN LEG OF -------------- 6 in TO 10 in
CHANNEL SHEAR ------------------- 2 in TO 6 in ADJ.
ROUND ROD (MAX.) ---------------- 1/4 in TO 1-1/4 in , 9 CAV.
SQUARE ROD (MAX.) --------------- 1/4 in TO 1 in , 1 CAV.
SQUARE TUBE SHEAR --------------- 1/2 in TO 2 in , 12 GAUGE
OFFSET DIE HOLDER --------------- MAX. 40 TON
STROKES/MIN IN LIGHT MATERIAL --- 1/4 in STROKE [PUNCH STATION]
STROKES/MIN IN HEAVY MATERIAL --- 3/4 in STROKE [PUNCH STATION]
HYDRAULICS ---------------------- 3,000/3,000 PSI
MOTORS STANDARD ----------------- 10 HP, 3 PH, 230/460 V
MOTORS OPTIONAL ----------------- 10 HP, 1 PH, 230 V
DIMENSIONS ---------------------- 30 in X 65 in X 72-1/8 in
SHIPPING WEIGHT ----------------- 3,800 LBS.
FEATURES:
DUAL OPERATOR ALLOWS FOR TWO OPERATORS TO WORK AT THE SAME TIME AT FULL CAPACITY
KEYED PUNCH RAM FOR SAFETY
PUNCH GAUGING TABLE WITH FENCE AND SCALE
DIE HOLDER COMPLETE WITH 2 in DIE INSERT
PUNCH NUT WITH WRENCH & STRIPPER
ADJUSTABLE SWING-AWAY STRIPPER
ONE ROUND PUNCH & DIE: MAX. DIA. 1-1/4 in
PUNCH JOG CONTROL
TWO ADJUSTABLE ELECTRIC STROKE CONTROLS WITH SCALE
TWO ELECTRIC REMOTE FOOT PEDALS
TWO 2-STAGE HYDRAULIC PUMPS
TWO VALVES
NOTCHER TABLE WITH GUIDES
SHEAR TABLE WITH MITER FENCE
TOOL TABLE WORK AREA
SLUG RECEPTACLES
ELECTRICAL BOX SUPPLIED WITH EMERGENCY PALM BUTTON AND
LOCK-OUT TAG-OUT ACCOMMODATIONS
230/460 VOLT/3 PHASE ELECTRICS (MUST SPECIFY VOLTAGE)
ALL GUARDS NECESSARY TO COMPLY WITH ANSI B 11-5 STANDARDS
FORKLIFT ACCOMMODATIONS
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
OPTIONAL FEATURES:

SINGLE PHASE MOTOR, 10 HP 220 VOLT/ 60 HZ: $3,300.00
L.E.D. LIGHT PACKAGE-XL/DO (FACTORY INSTALLATION): $495.00
LASER LIGHT - BAR SHEAR (FACTORY INSTALLATION): $1,075.00
PUNCH EXTENSION TABLE: $295.00
36" PUNCH GAUGING EXTENSION – LH: $795.00
36" PUNCH GAUGING EXTENSION – RH: $795.00
85" PUNCH GAUGING EXTENSION – LH: $1,495.00
85" PUNCH GAUGING EXTENSION – RH: $1,495.00
TOOL TABLE EXTENSION W/ PUNCH & DIE DRAWER (100 LBS. MAX): $795.00
48" DELUXE BACK GAUGE: $825.00
48" ELECTRIC BACK GAUGE (XL/FI): $2,350.00
INFEED CONVEYOR (24" X 5 FOOT W / SUPPORT ARMS): $3,295.00
12" BRAKE (WITH 2" V OPENING DIES STANDARD - FOR 1/4" MATERIAL): $2,325.00
24" BRAKE (WITH 2" V OPENING DIES STANDARD - FOR 1/4" MATERIAL): $3,245.00
12" BRAKE TABLE WITH SCALE & SQUARING ARM: $425.00
24" BRAKE TABLE WITH SCALE & SQUARING ARM: $425.00
BRAKE LENGTH GAUGE WITH SCALE: $225.00
OPEN END BRAKE (MAX 1/4" X 5" FLAT OR 1/4" X 5" ANGLE IRON): $1,625.00
PIPE NOTCHER HOUSING (SEPARATE DIES REQUIRED FOR EACH SIZE): $370.00
3/4" SCHEDULE 40 PIPE UPPER & LOWER DIES – SET: $620.00
1" SCHEDULE 40 PIPE UPPER & LOWER DIES – SET: $620.00
1-1/4" SCHEDULE 40 PIPE UPPER & LOWER DIES – SET: $645.00
1-1/2" SCHEDULE 40 PIPE UPPER & LOWER DIES – SET: $645.00
2" SCHEDULE 40 PIPE UPPER & LOWER DIES – SET: $675.00
PUNCH PUSHER FOR PIPE NOTCHER: $125.00
TOOL TABLE PUSHER FOR PIPE NOTCHER: $175.00
RECTANGLE NOTCHER 2" X 2-1/2" X 3/8": $2,375.00
90 DEGREE V-NOTCHER (6" X 6" X 5/16"): $2,725.00
CHANNEL SHEAR (2" TO 6" ADJUSTABLE – MAXIMUM 5" STD CHANNEL): $4,475.00
ROD SHEAR (UP TO 1" SQUARE OR 1-1/4" ROUND): $2,325.00
SQUARE TUBE SHEAR (1/2" TO 2" – 14 GAUGE MAX): $1,595.00
PICKET TOOL HOUSING (SEPARATE DIES REQUIRED FOR EACH SIZE) *MOUNTS IN THE PUNCH STATION ONLY: $1,195.00
1/2" 14 GAUGE MAX. UPPER & LOWER DIES: $395.00
3/4" 14 GAUGE MAX. UPPER & LOWER DIES: $395.00
1" 14 GAUGE MAX. UPPER & LOWER DIES: $395.00
#45 RETAINING NUT (PUNCHING FROM 1-9/32" TO 1-9/16"): $90.00
HEAVY DUTY RETAINING NUT (OVERSIZED PUNCHING FROM 1-19/32" TO 4"): $395.00
WRENCH FOR HEAVY DUTY RETAINING NUT: $50.00
DIE INSERT FOR 2-1/2" O.D. DIES: $175.00
DIE INSERT FOR 3" O.D. DIES: $195.00
DIE HOLDER FOR 6" X 6" DIES: $595.00
OFFSET DIE HOLDER FOR FLANGE PUNCHING (2" O.D. DIES ONLY – MAXIMUM 40 TON): $850.00
STRIPPER FOR OFFSET DIE HOLDER (INCLUDES GUARD): $410.00
URETHANE PUNCH STRIPPER - #40 STANDARD PUNCHES ONLY (MAXIMUM SIZES:  3/4" ROUND, 3/4" OVAL, 11/16" SQUARE & 3/4" HEX): $75.00
URETHANE STRIPPER ASSEMBLY: $2,825.00
UNEQUAL LEG ANGLE SHEAR BLADE – 66 DEGREE - (4" X 3-1/2", 3-1/2" X 3", 3" X 2-1/2"): $495.00
UNEQUAL LEG ANGLE SHEAR BLADE – 70 DEGREE - (4" X 3", 2-1/2" X 2", 2" X 1-1/2"): $495.00
UNEQUAL LEG ANGLE SHEAR BLADE – 74 DEGREE - (6" X 4", 5" X 3-1/2", 3" X 2"): $495.00
UNEQUAL LEG ANGLE SHEAR BLADE – 80 DEGREE - (6" X 3-1/2", 5" X 3"): $495.00
UPPER ANGLE BLADE QUICK CHANGE HARDWARE: $395.00
ANGLE SHEAR (6" X 6" X 3/8" OR 5" X 5" X 1/2"): $2,295.00
ANGLE IRON MITER GUIDE: $70.00
UNISTRUT SHEAR (XL & DO) (PLEASE CALL TO INQUIRE ABOUT OTHER MATERIAL PROFILES) (MATERIAL SAMPLE REQUIRED FOR ALL ORDERS PRIOR TO ORDER APPROVAL): $CALL FOR PRICING
WELD COUPON BENDER - 6509 (MAX 3/8"X2"X7"): $1,825.00
HYD. BAR SHEAR HOLD DOWN (MUST BE FACTORY INSTALLED): $2,250.00
ECONOMY #40 PUNCH & #82 DIE PACKAGE (16TH) (RETAIL PRICE: $484, SAVINGS: $134) INCLUDES:  12SET OF ROUND PUNCHES & DIES:  5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1.: $350.00
ECONOMY #40 PUNCH & #82 DIE PACKAGE (32ND) (RETAIL PRICE: $492, SAVINGS: $142) INCLUDES:  12SET OF ROUND PUNCHES & DIES:  11/32, 15/32, 17/32, 19/32, 21/32, 23/32, 25/32, 27/32, 29/32, 31/32, 1-1/32, 1-3/16.: $350.00
ECONOMY #40 PUNCH & #82 DIE PACKAGE (METRIC) (RETAIL PRICE: $492, SAVINGS: $142) INCLUDES:  12 SETS OF ROUND, METRIC PUNCHES AND DIES:  8, 10, 12, 14, 16, 18, 20, 22, 24, 28, 30, & 32.: $350.00
DELUXE #40 PUNCH & #82 DIE PACKAGE (RETAIL PRICE: $2,192, SAVINGS: $1,042): INCLUDES: ROUNDS:  1/4, 9/32, 5/16, 3/8, 13/32, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1, 1-1/16, 1-1/8, 1-3/16, 1-1/4; SQUARES: 1/2, 3/4, 7/8; AND OVALS:  9/32 X 3/4, 5/16 X 3/4, 9/32 X 1, 5/16 X 1, 13/32 X 1, 7/16 X 1, 17/32 X 1, 9/16 X 1, 9/16 X 1-1/4, 11/16 X 1-1/4, 13/16 X 1-1/4.: $1,150.00
12" BRAKE PACKAGE (RETAIL PRICE: $2,975, SAVINGS: $500): 12" BRAKE, BRAKE LENGTH GAUGE W/SCALE, & 12" BRAKE TABLE W/SCALE & SQUARING ARM.: $2,475.00
24" BRAKE PACKAGE (RETAIL PRICE: $3,965, SAVINGS: $590): 24" BRAKE, BRAKE LENGTH GAUGE W/SCALE, & 24" BRAKE TABLE W/SCALE & SQUARING ARM.: $3,375.00
PIPE NOTCHER PACKAGE (RETAIL PRICE: $1,960, SAVINGS: $565): HOUSING, 1-1/4" SCH. 40 PIPE DIES, 1-1/2" SCH. 40 PIPE DIES, TOOL TABLE PUSHER, & PUNCH PUSHER.: $1,395.00
CHANNEL SHEAR PACKAGE (RETAIL PRICE: $5,735, SAVINGS: $240): CHANNEL SHEAR (2" TO 6" ADJUSTABLE - 5" MAXIMUM), OFFSET DIE HOLDER (FOR FLANGE PUNCHING), & STRIPPER FOR OFFSET DIE HOLDER.: $5,195.00
PRODUCTIVITY PACKAGE (RETAIL PRICE: $6,780, SAVINGS: $1,385): INFEED CONVEYOR (24" X 5' W/SUPPORT ARMS), LASER LIGHT FOR BAR SHEAR, LED LIGHT PACKAGE, PUNCH TABLE EXTENSION, 48" DELUXE BACK GAUGE, & TOOL TABLE EXTENSION W/ PUNCH & DIE DRAWER.: $5,325.00

PRODUCTIVITY PACKAGE (RETAIL PRICE: $8,305, SAVINGS: $1,755): INFEED CONVEYOR (24" X 5' W/SUPPORT ARMS), LASER LIGHT FOR BAR SHEAR, LED LIGHT PACKAGE, PUNCH TABLE EXTENSION, 48" ELECTRIC BACK GAUGE, & TOOL TABLE EXTENSION W/ PUNCH & DIE DRAWER.: $6,550.00
DELIVERY:
SUBJECT TO STOCK
