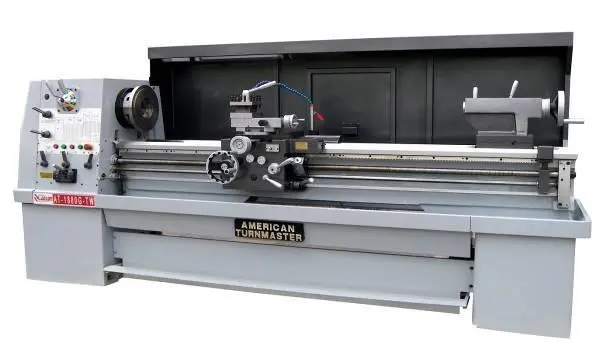

New REPUBLIC LAGUN AT-18120-G-TW | Lathes, Precision

SPECIFICATIONS:
CAPACITY:
SWING OVER BED ------------- 18"
SWING OVER CROSS SLIDE ---------------- 11"
DISTANCE BETWEEN CENTERS ----------- 119"
HEADSTOCK:
SPINDLE NOSE --------------------------- D1-8
SPINDLE BORE (MAX. BAR DIAMETER) ----- 3.15"
SPINDLE SPEED --------------------------- 16 STEPS
SPINDLE SPEED RANGE ---------------- 20-1,600 RPMS
RANGES ------------------------------------- 20-25-35-50-65-85-115-150-210-280-380-500-670-900-1,200-1,600
CARRIAGE:
LENGTH ON BED ------------------- 21"
WIDTH OF BRIDGE ------------------------ 21.33"
CROSS SLIDE TRAVEL ------------------- 11"
TOP SLIDE TRAVEL ---------------------- 5.39"
BED:
NUMBER OF V WAYS ---------------------- 3 EACH "V" WAYS
BED WIDTH ------------------------------- 13.59"
SWING IN GAP -------------------------- 28"
GAP BED LENGTH FROM FACEPLATE --------- 8"
TAILSTOCK:
QUILL DIAMETER -------------------- 3"
QUILL CENTER ----------------------- M.T. 5
QUILL TRAVEL ----------------------- 7"
FEEDS & TREADS:
RANGE OF WHIT WORTH THREADS & NO. ---------------- 2-72 T.P.I (45)
RANGE OF METRIC THREADS NO. ------------------------ 0.2/14 (39)
RANGE OF D.P. & NO ---------------------------------------- 8-44 (21)
RANGE OF M.P. & NO. --------------------------------------- 0.3-3.5 (18)
 LONGITUDINAL FEED (15) -------------------------------- 0.0015-0.04"
CROSS FEEDS (15) ------------------------------------------ 0.00075-0.02"
MOTOR:
MAIN MOTOR ----------------------------------------------- 10 HP
COOLANT PUMP ------------------------------------------ 0.15 HP
MEASUREMENTS:
LENGTH PACKED ------------------------------------------ 178"
WIDTH PACKED ------------------------------------------ 44"
HEIGHT PACKED ------------------------------------------ 66"
WEIGHT:
GROSS WEIGHT ------------------------------------------ 8,598 LBS.
EQUIPPED WITH:
CHIP AND COOLANT TRAY
FOOT BRAKE
FULL LENGTH REAR SPLASH GUARD
COMPOUND PROTECTION GUARD (WITHOUT LIMIT SWITCH)
MANUAL INDEXING SQUARE 4-POSITION TOOL POST
BACK PLATE (TO MOUNT PLAIN BACK 3 OR 4 JAW CHUCK OR FIXTURE PLATE; DOG OR FACE PLATE)
TWO (2) NO. 5 MT CENTERS AND ONE (1) MAIN SPINDLE NO. 7 MT REDUCTION SLEEVE
MATRIX DISK CLUTCH
LEAD SCREW PROTECTION COVER
HALOGEN WORK LIGHT
OPERATOR PROTECTION GUARD COMPOUND MOUNTED
TOOLBOX AND MANUALS
LEVELING PADS AND BOLTS
THREADING DIAL
INCH/METRIC DIALS ON COMPOUND AND CROSS SLIDE (DIRECT READINGS)
TAILSTOCK QUILL WITH TANG
ELECTRICS 220/440 V, 3 PHASE, 60 HZ (OTHER OPTIONS AVAILABLE)
COOLANT SYSTEM
FEATURES:

DISK CLUTCH HEADSTOCK
3 V WAYS, HARDENED AND GROUND
16 SPEED SPINDLE FROM 20 UP TO 1,600 RPM
BALANCED MAIN SPINDLE
TAILSTOCK SPINDLE WITH AMERICAN TANG

CARRIAGE WITH TURCITE TO ELIMINATE STICK SLIP, DAMP CUTTING VIBRATIONS
SAFETY CARRIAGE STOP
HEAVY CAST IRON MACHINE
OPTIONAL FEATURES:
18” LATHE ELECTRONIC VARIABLE SPEED (EVS), Headstock 10 hp motor, W/ 15 hp inverter ---------------------- $5,950.00
21” LATHE ELECTRONIC VARIABLE SPEED (EVS), Headstock 12.5 hp motor, W/ 15 hp heavy duty inverter --- $7,040.00
MATRIX DISC CLUTCH ($2,200 VALUE) NOTE: DISC CLUTCH IS REMOVED FOR EVS CONVERSION. -------- INCLUDED
SPECIAL ELECTRICS:
ALLEN BRADLEY ELECTRICS,10 HP MOTOR ------------------- $1,295.00
JIC; NFPA-79 / NEMA 12 SPECIAL ELECTRICS (NET) ------------- $4,700.00
UL CERTIFICATION (REQUIRED FOR:  EVS OPTION 20-170-C-18 OR JIC 20-289-C-18) (NET) ------- $1,500.00
STEADY REST:
STEADY REST, (3/4” TO 9” CAPACITY) WITH ROLLERS FOR 18” LATHE ----------- $1,070.00
STEADY REST, (6” TO 11” CAPACITY) WITH ROLLERS FOR 18” LATHE -------- $2,229.00
FOLLOW REST WITH BRONZE TIPS FOR 18” LATHE ----------------------- $482.00
STEADY REST, (3/4” TO 9” CAPACITY) WITH ROLLERS FOR 21” LATHE ----------$1,132.00
STEADY REST, (6” TO 11” CAPACITY) WITH ROLLERS FOR 21” LATHE ---------------- $2,336.00
FOLLOW REST WITH BRONZE TIPS FOR 21” LATHE ----------------------- $499.00
CHUCKS & FACE PLATES FOR ALL OPTIONAL CHUCKS:
10” 3 JAW CHUCK D 1-8, DIRECT MOUNT (SEMI-STEEL) --------- $1,460.00
12” 3 JAW CHUCK D 1-8, DIRECT MOUNT (SEMI-STEEL) ---------- $ 2,240.00
16” 3 JAW CHUCK D 1-8, DIRECT MOUNT (SEMI-STEEL) ---------- $4,035.00
10” 3 JAW CHUCK D 1-8, DIRECT MOUNT (STEEL BODY) ----------- $2,200.00
12” 3 JAW CHUCK D 1-8, DIRECT MOUNT (STEEL BODY) ----------- $2,800.00
16” 3 JAW CHUCK D 1-8, DIRECT MOUNT (STEEL BODY) ---------- $5,680.00
12” 4 JAW CHUCK D 1-8, DIRECT MOUNT (SEMI-STEEL) ----------- $1,984.00
16” 4 JAW CHUCK D 1-8, DIRECT MOUNT (SEMI-STEEL) ---------- $2,075.00
10” 4 JAW CHUCK D 1-8, DIRECT MOUNT (STEEL BODY) ---------- $2,815.00
12” 4 JAW CHUCK D 1-8, DIRECT MOUNT (STEEL BODY) ---------- $3,917.00
16” 4 JAW CHUCK D 1-8, DIRECT MOUNT (STEEL BODY) ---------- $4,750.00
BACK PLATE OR DOG PLATE 10", D1-8 ------------------------------ $345.00
FACE PLATE 18" FOR D1-8 SPINDLE NOSE ------------------------- $835.00
FACE PLATE 24" FOR D1-8 SPINDLE NOSE ------------------------- $2,070.00
DRILL CHUCK ½” (KEY TYPE) WITH NO.5 MORSE TAPER SHANK ----------- $345.00
DRILL CHUCK 3/4” (KEY TYPE) WITH NO.5 MORSE TAPER SHANK --------- $835.00
2-AXIS ACU-RITE T203 DIGITAL READ-OUT (D.R.O.) FOR 18/21 X 40" (INSTALLED) --------- $3,484.00
2-AXIS ACU-RITE T203 DIGITAL READ-OUT (D.R.O.) FOR 18/ 21 X 60” (INSTALLED) --------- $3,921.00
2-AXIS ACU-RITE T203 DIGITAL READ-OUT (D.R.O.)  FOR 18/ 21 X 80" (INSTALLED) --------- $4,541.00
2-AXIS ACU-RITE T203 DIGITAL READ-OUT (D.R.O.)  FOR 18/ 21 X 120" (INSTALLED) --------- $5,586.00
2-AXIS ACU-RITE T303 DIGITAL READ-OUT (D.R.O.) WITH THREAD ASSIST FOR 18/ 21 X 40" (INSTALLED), CUT METRICS THREADS & DISENGAGE ½ NUT --------- $P.O.R.
2-AXIS ACU-RITE T303 DIGITAL READ-OUT (D.R.O.)  WITH THREAD ASSIST FOR 18/ 21 X 60" (INSTALLED), CUT METRICS THREADS & DISENGAGE ½ NUT --------- $P.O.R.
2-AXIS ACU-RITE T303 DIGITAL READ-OUT (D.R.O.)  WITH THREAD ASSIST FOR 18/ 21 X 80" (INSTALLED), CUT METRICS THREADS & DISENGAGE ½ NUT --------- $P.O.R.
2-AXIS ACU-RITE T303 DIGITAL READ-OUT (D.R.O.)  WITH THREAD ASSIST FOR 18/ 21 X 120" (INSTALLED), CUT METRICS THREADS & DISENGAGE ½ NUT --------- $P.O.R.
2-AXIS FAGOR 40I DIGITAL READ-OUT (D.R.O.) WITH CONSTANT SURFACE SPEED (C.S.S.) FOR EVS LATHES 18/21X40" (INSTALLED) (4 GEAR RANGE) ------------ $4,116.00
2-AXIS FAGOR 40I DIGITAL READ-OUT (D.R.O.) WITH CONSTANT SURFACE SPEED (C.S.S.) FOR EVS LATHES 18/21X60" (INSTALLED) (4 GEAR RANGE) ---------- $4,472.00
2-AXIS FAGOR 40I DIGITAL READ-OUT (D.R.O.) WITH CONSTANT SURFACE SPEED (C.S.S.) FOR EVS LATHES 18/21X80" (INSTALLED) (4 GEAR RANGE) ----------- $5,092.00
2-AXIS FAGOR 40I DIGITAL READ-OUT (D.R.O.) WITH CONSTANT SURFACE SPEED (C.S.S.) FOR EVS LATHES 18/21X120" (INSTALLED) (4 GEAR RANGE) --------- $6,083.00
2-AXIS NEWALL DP700 DIGITAL READ-OUT (D.R.O.) FOR 18/21 X40" (INSTALLED) ------------ $3,881.00
2-AXIS NEWALL DP700 DIGITAL READ-OUT (D.R.O.) FOR 18/21 X 60" (INSTALLED) ------------ $3,881.00
2-AXIS NEWALL DP700 DIGITAL READ-OUT (D.R.O.) FOR 18/21 X 80" (INSTALLED) ------------ $4,570.00
2-AXIS NEWALL DP700 DIGITAL READ-OUT (D.R.O.) FOR 18/21 X 120" (INSTALLED) ------------ $5,906.00
OTHER ACCESSORIES:
CUSTOM PAINT COLOR ------------ $895.00
TAPER ATTACHMENT, TELESCOPIC TYPE, TRAVEL 15” – 8 DEGREES ------------ $1,748.00
LIVE CENTER, MT #5 ------------ $498.00
2-SPEED GEARBOX FOR THE TAILSTOCK - 1:1 & 4:1 ------------ $2,463.00
LONGITUDINAL RAPID TRAVERSE (STANDARD FOR 120) ------------ $2,139.00
SAFETY OPTIONS:
CHUCK GUARD WITH SAFETY LIMIT SWITCH  ------------ $478.00
MICROMETER CARRIAGE STOP  ------------ $486.00
CARRIAGE STOP - 5 POSITION BED WITH MICROMETER  ------------ $690.00
QUICK CHANGE TOOLHOLDERS:
QUICK CHANGE TOOL HOLDER SET CA #4, 5 PC. (1 TOOL POST & 4 HOLDERS), CAPACITY ¾”  ------------ $1,925.00
QUICK CHANGE TOOL HOLDER SET CA #4, 7PC. (1 TOOL POST & 6 HOLDERS), CAPACITY ¾”  ------------ $2,442.00
COLLETS:
5 C LEVER TYPE PRODUCTION COLLET CLOSER (UP TO 1 1/16” CAPACITY), D1-8  ------------ $2,378.00
HANDWHEEL TYPE COLLET CHUCK, 5-C, D1-8 (SPINDLE NOSE MOUNTED)  ------------ $2,097.00
5C COLLETS; 16 PIECES, 1/8" TO 1 1/16" CAPACITY  ------------ $694.00
TRANSPORTATION PACKING OPTION:
WOOD SKID WRAPPED IN SHRINK PLASTIC  ------------ $600.00
COMPLETELY ENCLOSED WOOD CRATE (TREATED WOOD), MACHINE TREATED WITH ANTI-RUST COAT OVER ALL METAL SURFACES AND WRAPPED IN THERMAL SEALED FOIL BAG. (NET)  ------------ $1,955.00
