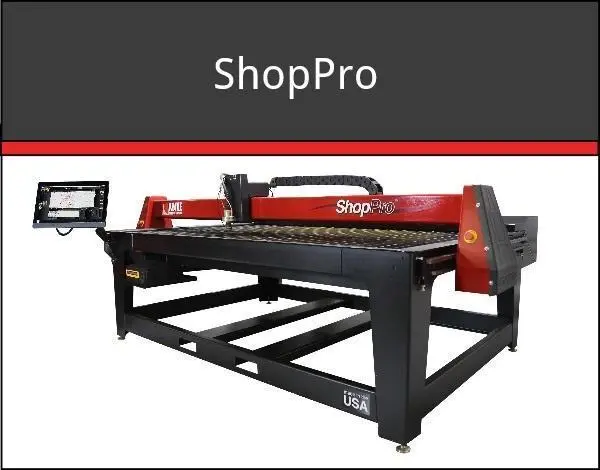

New KOIKE ARONSON SHOPPRO 5X10 | Plasma Cutters

SPECIFICATIONS:
One Piece Unitized design 84L x 152W x 56H (dimension without CNC)
7 Gauge Solid Steel Construction
Effective cutting width: 10'
Effective cutting length: 5'
Shipping Weight: 3,500 lbs
Dual Side Drive Helical Rack and Pinion
Precision Helical 10:1 Gearboxes
Machine repeatability: .005"
1,000 IPM Rapid traverse speed
Adjustable leveling pads for easy adjustment
Water table with manual fill.
Water Capacity: 220 Gallons
Machine E-Stop Located on Each Saddle
Machine input power: 115/1/60 @ 15 Amps
Maximum Plate Thickness: 2"
Flashcut Drive Control Package
4 Axis, 8 amp micro-stepping drive
NEMA-34 954 oz-in Stepper Motors
21.5" Monitor
Windows 10 Pro
Intel i5 Processor or Equivalent
Minimum 8gb Ram
Minimum 256gb Hard Drive
Wireless Capability
Keyboard
Mouse
Multiple USB Ports

Flashcut CAD/CAM Standard Software Features:
On-board Completely integrated Flash Cut 2D CAM CAD Package Includes:
Plasma Support Interface
Oxy-Fuel Support Interface
Material Database (Cut Chart Support)
Customizable Cut Charts
Customizable Default Lead-in, Lead-out Strategies
Commonly Used Plate List
Jump to Line
Dry Run
Momentary Run
Run File Forward and Backwards
Kerf Crossing Detection
THC performance History Chart
Fix Drawing Tool
Measuring Tool
Free Form Stretching and Manipulation
Layer Support
Centerline Image Import
Silhouette Image Import
DXF/DWG Import
TrueShape Nesting
Automatic Kerf Compensation
Grid Nesting
Graphical editing of Lead in Lead out Location
Tabbing
Overburn Support
Assign Different Operations to Each Part
Cut Sequencing Drag, Delete, Rotate, Copy Parts on the Nest
Operation Sequencing
Cutout or Part Mode
Custom views of Kerf Width, Cut Direction , Toolpath, Rapids and Part Geometry
Customizable Post Processor

Pro Series Software Upgrade Includes:
Standard Software Package
Marker and Plasma Marking
DXF Export
Advanced Text including True Type Font Support Without
Exploding and Curved Text Around Any Shape
Part Shading
3D Cutting Simulation
Automatic Lead-In on Restart
Dynamic THC On/Off Progress Meter
Move to Point in View port
Rip Cutting
Smart Touch Off
Shape Library
Bridge Entities Tool
Fix Drawing Tool
Shape Welding Tool
Part Shading
Arc Fitting
Multi Layer Color Image Import
Import of parts from external files
TrueShape Nesting
Multi-Sheet and Fill Sheet TrueShape Nesting
Corner Looping
Advanced Leadin Leadout Editing
Animated 3D Cutting Simulation
Advanced Small Hole Processing
Multi Tabs
1 additional seat Flashcut Software for remote PC/laptop (additional seats available for purchase)
Koike Z-Axis torch height control with torch breakaway
CNC controlled THC electronics package
4" Stroke @ 500 ipm

Laser Pointer Includes:
Laser Pointer with Red Dot
Mounting Bracket
Interface Cable
Plate Alignment Software
OPTIONAL:

POWERMAX 65 SYNC Plasma Cutting System by Hypertherm: $4,600.00
POWERMAX 65 SYNC Plasma Cutting System by Hypertherm Includes:
Self-regulating primary input
(200 - 480, single or three phase, 50 or 60 hertz)
Gas Supply - clean dry, oil-free air or nitrogen @ 450 scfh,
Minimum 85 psi flow rate
Power supply, air filter and controls variable power output
from 20 to 65 amps
Air plasma system includes:
(1) Powermax 65 Sync power supply with CPC port and
voltage divider 200-600V/1-3 Phase
(1) Robotic Mini Torch with shielded leads
(1) SmartSYNC Ohmic Ring
(1) Work Lead with ring terminal
(5) 65 Amp Smart Sync cartridges for mechanized cutting
Recommended Cut Capacity - Gauge material to 5/8 inch
mild steel
50% duty cycle @ 65 amps, 230-600 V, 1/3 PH
40% duty cylce @ 65 amps, 200-208 V, 1/3 PH
100% duty cycle @ 46 amps, 230 - 600 V, 1/3 PH
Recommended Fuse @ 200V/208V/240V, 1 PH: 80 AMP

low Blow
Recommended Fuse @ 480V, 1 PH: 40 AMP Slow Blow
Recommended Fuse @ 200V/208V/240V, 3 PH: 50 AMP Slow Blow
Recommended Fuse @ 400V, 3 PH: 30 AMP Slow Blow
Recommended Fuse @ 480V/600v, 3 PH: 25 AMP Slow Blow
Water Table Additive (5 Gallon Bucket): $149.00
A general purpose additive for water tables, and is
specifically formulated to be safe for ferrous and
non-ferrous metals. Standard water table additives
will stain aluminum, and can attack and pit soft metal
surfaces. Plasma Green 9010 is designed to be safe
for aluminum, and mixed metals. This product will not
only trap smoke and air-born particles from a cutting
table, but is also designed to provide corrosion
protection to the work piece and water table, and inhibit
bioactivity in plasma torch, oxy-acetylene, M.A.P.P. gas
metal cutting operations. A recommended solution of
3% will provide excellent tank life, and can be maintained
until soil load or contaminants dictate a dump. This
product has a green tint to aid in concentration control.
ShopPro
4 x 4 = 1 Bucket (Use 2.5 Gallons)
4 x 8 = 1 Bucket (Use 5 Gallons)
5 x 10 = 2 Buckets (Use 7-1/2 Gallons)
ShopProXHD
4 X 8 = 3 Buckets (use 12 gallons)
5 x 10 = 4 Buckets (use 17-1/2 gallons)
6 x 12 = 5 Buckets (use 25 gallons)
Koike Part Number 1118-1015-00
Cutting Installation: $6,000.00
Installation and training to be performed by Koike
Aronson, Inc.
Installation charges are included in this quotation and
cover labor, travel and living expenses.
Commodity Surcharge: $2,044.00

Live Online Training with Koike Includes: $600.00
A one time meeting lasting up to 4 hours. Consisting of
live training via virtual web meeting.
Koike can go over machine set up, software and plasma
functions and answer any questions you may have.
Delivery:
More than 8 Weeks after down payment check
