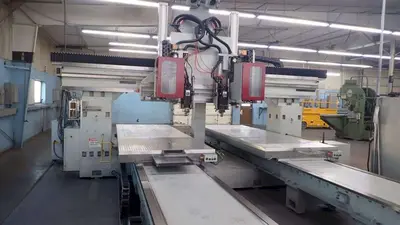

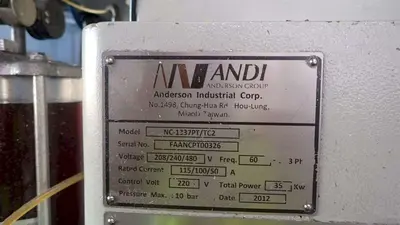

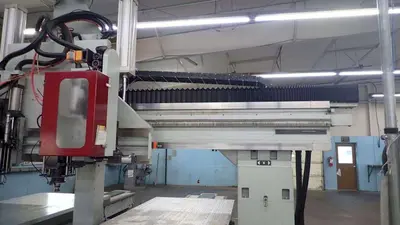

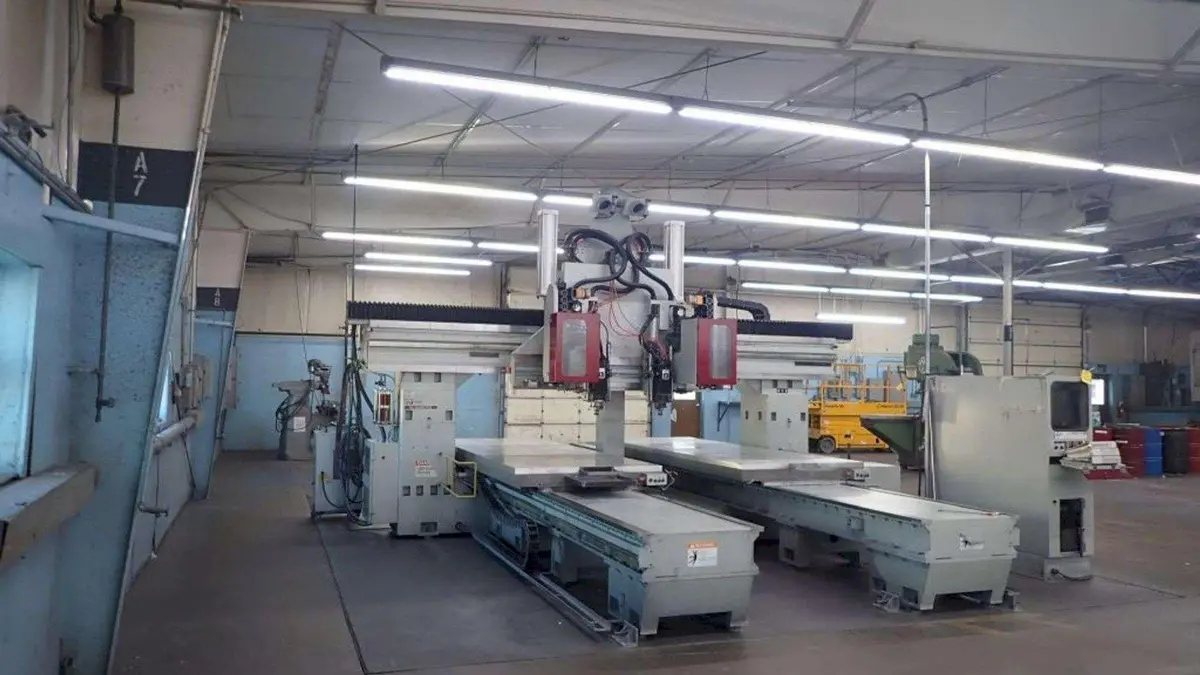

Used 2012 ANDI NC 1337PT/TC2 | Routers

SPECIFICATIONS:
STROKE:
X AXIS - 4,050mm (159.4")
Y V AXIS - 3,700mm (145.6")
Z AXIS- 600 mm (23.6")

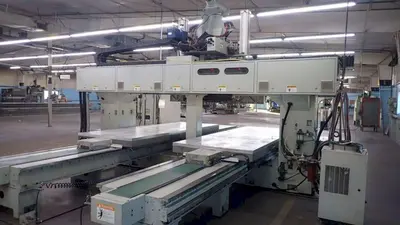

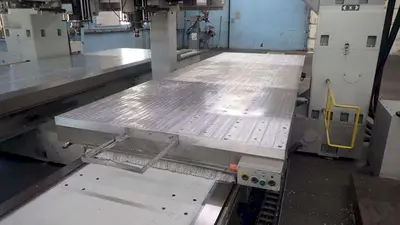

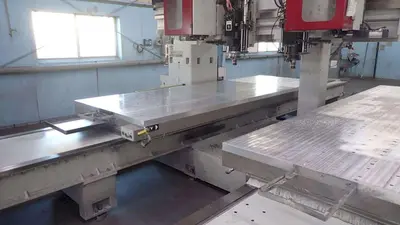

TABLE SIZE - 1,300 mm x 3,700 mm x 2 (51.1" x 145.6") (TWO VACUUM TABLES)
TABLE CAPACITY - 1000 LB PER SQ METER
MAX. FEED SPEED:
X,Y,V AXIS - 60 M/min
Z AXIS - 12 M/min

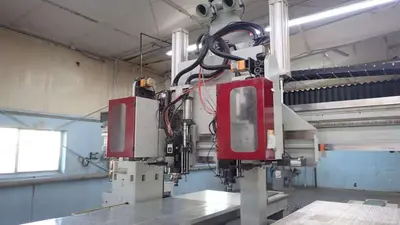

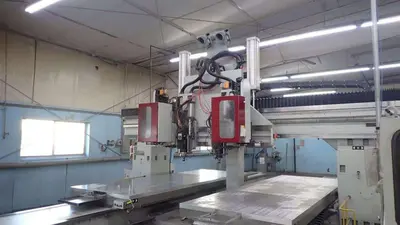

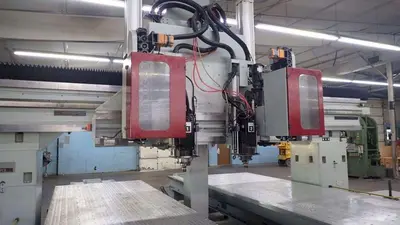

ROUTER HEAD:
NO.1,2 SPEED - 21000RPM
NO.OF SPINDLES - 2
SPINDLES INNER CONE - HSK-63F
NO.OF TOOLS CHANGEABLE - 32(TWIN TOOL CHANGERS- 16 PER)
POWER:
NO.1,2 ROUTER HEAD - 11KWx2(15 HP SPINDLE MOTORS)
AIR PRESSURE - 6 KG/CM2

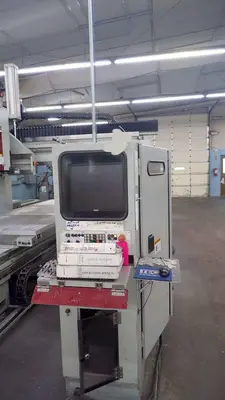

NC CONTROLLER - FANUC OIMD SERIES
DIMENSIONS FLOOR AREA - 8,600 mmx 5,800mm x 3,700mm (338.6" x 225.3" x 145.6")
WEIGHT - 11,000 KG (24,250.849 lbs)
