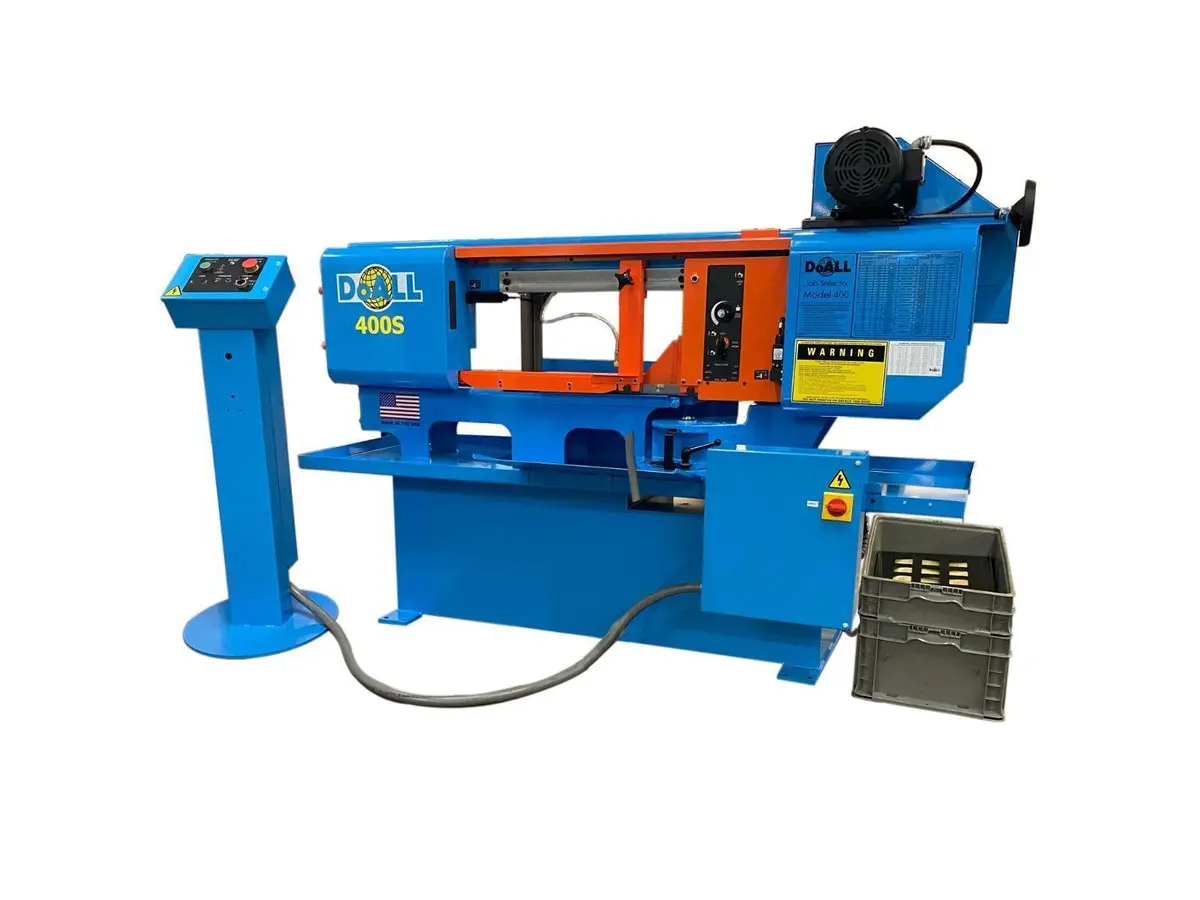

New DOALL 400-S | Saws, Bandsaws

Specifications:

Saw:

Machine Capacity: w 16″ x h 10″ (406mm x 254mm)
Round Capacity Tube: 10.75″ (273mm)
Production Level: Low

Saw Blade:

Width x Length - 1" x 158"

Band Drive:

Motor HP - 2 Hp VFD

Band Speed - 50-400 fpm

Band Tension – Manual

Coolant System:

Flood - Yes / Mist Lubrucator - OPT
Motor Hp - 1/15 Hp
Reservoir Size – 6 Gallons

Floor Space Dimensions:

W x L X H - 87" x 42" x 55"

Material Pass Height - 29"

Machine Weight - 1,200 lbs.

Electrical:

Voltage Requirement 208V,230V or 460V-60Hz-3ph, Wye configuration (Must Specify at Order Placement)

Total Amp Draw (FLA) 7.2(208) 6.9(230) 3.5(460) Amps

Details:

Operator Control Console - Independent control console can be positioned for operator comfort and safety insuring hands are away from blade at band start.

Variable Pulley Speed Control - Easily adjustable hand wheel allows the operator to control blade speed improving blade life, decreasing noise levels, and eliminating the need for machine shutdown to change belt position on step pulleys.

Rapid head down w/ Feed Control - Three position head control allows the operator in rapid mode to quickly position the saw head above the material, the head will stop at position in the hold mode, and create feed rates with the micrometer adjustment in the feed mode for maximizing cutting performance.

Coolant Thru Carbide Faced Saw Guide Inserts - Supplies coolant to the blade evenly before the cut creating straighter cuts and allowing longer blade life due to coolant being supplied at the tooth tip.

Band Wheels - Flange cast steel wheels insure band tracking to prevent tooth set loss.

Rack and Pawl Vise - Time honored rack and pawl vice system using an acme thread screw minimizes setup / clamping time aiding in increased production and decreased vise maintenance.

Manual Blade Tension - Positive stop to prevent a possible error of over/under-tightening the band for maximum cutting rates and band life.

Band Brush - Gear driven band brush removes the chips from the blade gullets which would prevent the blade from attaining maximum cutting rates and blade life.

Counter Balance Spring - Counterbalance spring maintains constant head weight throughout the cut keeping the blade tooth load equal aiding in maximum blade life.

Warranty - One-year parts only, subject to terms & conditions. 10-year DoALL Cut Above Warranty available.

Standard Features:
Variable Pulley Speed Control, Operator Control Console, Mitering and Rapid 3-Position Saw Head
The DoALL 400S general purpose band saw is part of the StructurALL® family of horizontal metal cutting scissor saws. Swiveling 45 degrees, it's the ideal machine for the small to medium fabricator or machine shop, looking to make extremely accurate (straight or miter) cuts in smaller quantities.
The 400S features a 16″ (406mm) high x 10" (254mm) wide capacity of rectangles and 10.75″ (273mm) rounds. This 400S manual machine can be equipped with a variety of options to further ease operation, such as pneumatic head-lift and pneumatic vise attachments.
We’re proud to produce the DoALL 400S at our corporate headquarters in Minnesota. Each machine is hand-assembled by our local team and features high-durability plate steel and TIG welds.
Standard Equipment:
* Swivel Head to 45°.
* Fine adjustment head feed control.
* Fixed control console.
* Rapid head down approach.
* Spring loaded, zero clearance, coolant through, carbide faced saw guide inserts.
* Quick action rack and pawl vise system w/ Acme Thread.
* Gear driven band cleaning brushes.
* Variable Frequency Drive.
* Heavy duty counter balance spring.
* Flange backing band wheels.
* Manual band tension.
* Recirculating coolant system.
* Discharge Tray.
* Replaceable steel wear plates on bed.
* Saw blade interlocks.
* Operation and parts manuals on USB sticks.
* Recommended band speed chart.
* One (1) complimentary DoALL Bi Metal Saw Blade.
* Complimentary DoALL Cutting Fluids package.

Optional Accessories:

Full Cycle attachment provides pneumatic head raise/vise operations allowing for head raise to a pre-determined height after the cut in auto mode. Pneumatic operations remain active in manual mode.: $3,000.00

5 ft Medium-duty idler conveyor 16" between frames. Roller capacity 850 Ibs.: $1,520.00

10 ft Medium-duty idler conveyor 16" between frames. Roller capacity 850 Ibs.: $2,477.00

Additional conveyor rollers: $79.00

24" Discharge table: $370.00

18" Adjustable work stop - Requires item 24" Discharge Table: $758.00

Band mist lubricator: $1,860.00

Work light: $304.00

Laser line generator: $1,248.00

Flushing hose attachment: $183.00

Additional USB stick of manuals: $91.00

A Nationally Recognized Testing Laboratory (NRTL) is an independent third-part laboratory recognized by the United States Occupational Safety and Health Administration (OSHA) to test and certify products to applicable product safety standards: $3,500.00

Four (4) hours installation and operator training: $600.00

DoALL Cut Above 10 Year Warranty Annual Investment: $840.00

Starter Kit of Six Pack Blades Consist of 1 each Silencer Plus 3-4, 4-6, 5-8, 8-12 and StructurAll 4-6, 5-8.: $383.49
5 Gallon Pail of Band All 102 Semi Synthetic.: $160.13
5 Gallon Pail of AL-2000 Mist Coolant.: $239.68
