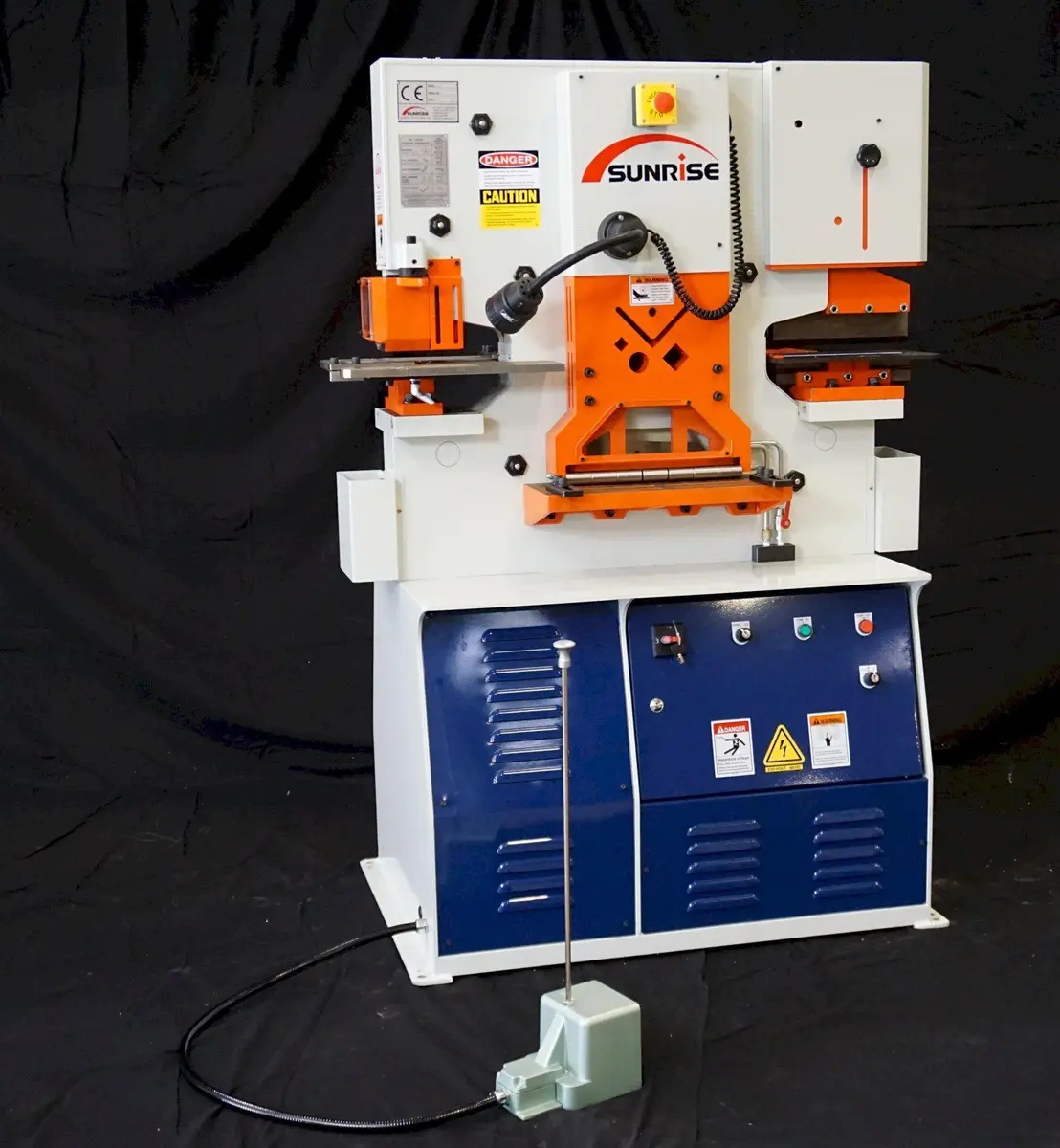

New SUNRISE IW-66KB | Ironworkers

Specifications:
Punching:
Punching Pressure - 66 Ton
Punch Capacity - 7/8" x 3/4" (Diameter x Thickness - 1.5" x 7/16")
Throat Depth - 7 7/8"
Maximum Stroke Length - 1.5"
Cycles - 34/Min.
Working Height - 41" to top of die
Angle Shearing:
Maximum capacity 90° - 4" x 4" x 5/16"
Working Height - 42"
Section Shear:

Round bar capacity - 1-1/2"
Square bar capacity - 1-1/2"
Channel capacity - 4" (channel blades optional)
Working Height - 41"
PLATE SHEAR
Maximum W x T - 14" x 9/16"
Working Height - 32"

Press Brake:
Integrated Multi-Vee Press Brake 12" Capacity - Includes Gauge System

Other:

Motor - 7.5 HP
Electrics - 3/60/220 or 480
Weight - 3,150 lbs
Dimensions - 60" L x 30" W x 64" H
Features:
     SUNRISE K-Series Ironworkers range in capacities from 50 to 95 Tons and feature a vertical cylinder design. The K-series ironworkers are built with the SUNRISE tradition of well-engineered products for high power, quality, and reliability at an incredible price.
     The low-pressure setting for tool change and spotting provides maximum operator safety. The quick, fully adjustable cylinder stroke and optional deep throat enable mounting a wide range of special equipment such as press brakes, vee-notchers, custom tooling, and more.
     The large punching base with the “T-slots” provides a solid base for securing the punch tooling, as well as a wide range of optional and custom-designed tooling.
     SUNRISE ironworkers offer the lowest cost of ownership among leading ironworker brands due to the bronze bushings and gibings, multi-sided blades, and the highest quality components as well a standard three-year parts warranty.
Equipped With:

* Three fully integrated working stations
* Single cylinder operation with remote foot pedal for the punch and shearing stations
* Compact strong design featuring vertical movement of slide provides optimum results for all stations
* Fast cylinder stroke for increased efficiency
* Heavy-Duty adjustable punch stripper with visibility window
     * Keyed quick-change punch holder
     * Slug bucket
* Die holder with single opening for punching up to 1-1/2" diameter
     * T-slot bolster for rapid adjustment of die holder and easy accessory mounting
* Machined punch gauging table with removable front section, adjustable X-Y back stops and recessed scales.
* Hydraulic hold down for integrated angle, section, and plate shearing stations
* Angle shear with no material loss cut.
* Section shear with multiple openings for 90 degree shearing of round and square bar up to machines capacity
* Plate shear with special rake angle to keep shearing deformation to a minimum. Four useable-edge lower blade two useable-edge upper blade
     * Support table for plate shear with adjustable guides and scribe marks
* 40" electric touch-and-go back gauge adjustable to accommodate plate and angle shear
* Integrated 12" Multi-Vee Press Brake (Optional 8" single vee available).
     * Gauge Table
     * Additional Foot Pedal
     * Interlock safety guard
* Jog or full-stroke functions

* 11 sets punches and dies, SUNRISE Type: 3/8",1/2",9/16",11/16",13/16" 15/16",1",1-1/16",1-1/4",1-3/8",1-1/2"
* Hydraulic and electrical systems with high quality components
* Hydraulic system protected with suction strainer and spin on return line filter.
* Electrics for 3/60/220 or 480 volt operation. Low voltage at the controls.
* Emergency stop palm buttons on both ends of machine
* Tool kit, and instruction manual

Notes:
Specifications Subject to Verification
Delivery:
Subject to Stock
