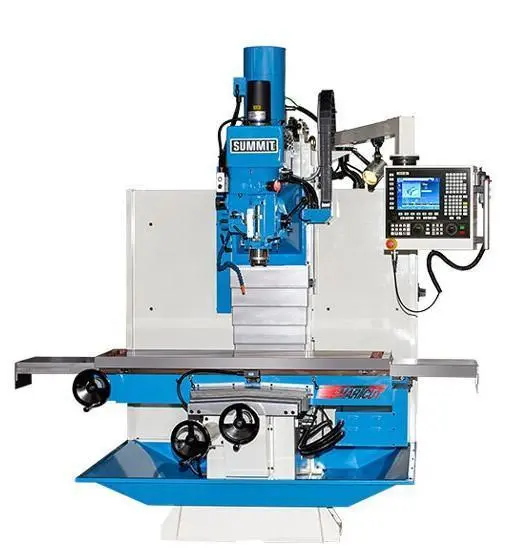

New SUMMIT EVS 760B | Millers, Bed Type

Specifications:
Vertical Head:
Motor Size: 7.5 HP
Number of Spindle Speeds: Inf. Variable
Speed Range (RPM): 0 – 3650
Vertical Travel (Z Axis): 23.6”
Feed Range: Infinitely Variable
Feed Rate: 0 – 43.7 IPM
Head Movement Side to Side: +/- 90°
Spindle Nose to Table: 2.5” – 30”
Spindle Nose to Column: 23.62”
Spindle Taper: #40
Quill Traverse: 5 1/2”
Quill Feed: .0016 - .0031 - .0059 IPR
Table:
Table Size: 16.9”x60”x3 1/8”
Maximum Weight of Workpiece: 2,200 lbs.
Table Longitudinal Feed (X Axis): 51.1”
Saddle Cross Feed (Y Axis): 23.62”
Feed Rate: 0 – 43.7 IPM
Miscellaneous:
Weight: 6,500 lbs.
Electrics: 220/3/60
Features:
SUMMIT® EVS SERIES 760-B VERTICAL BED MILLS offer high production accuracy due to their heavy construction and innovative design. The large choice of speeds and feeds makes these Vertical Bed Mills the ideal choice for job shops, production shops, repair and tool & die shops. The alloy steel main spindle is thermally treated and precision ground, then fixed on high accuracy bearings and the saddle assembly travels on precision ground slides which ensure rigidity for large capacity table loads. This machine also has an automatic lube system which ensures consistent lubrication of the speed and feed boxes. Changing of feeds and speeds is easy and efficient, combined with centralized operator controls, these machines are designed for virtually uninterrupted operation.
Standard Features:
➢ Heavy Meehanite Cast Iron Construction
➢ Huge Box Ways on Bed
➢ “Turcite – B” Inserted Guideways
➢ Double Table Locks
➢ Wipers on Saddle and Column
➢ Head Swivels Left and Right
➢ Built in Coolant Syste
➢ Automatic Lubrication
➢ Precision ground ball- screws X, Y and Z Axis
➢ Complete Electrics with Low Voltage Controls
➢ Inverter Duty, High Energy – High Efficiency Motors
➢ Compact AC Inverter Spindle Drive
➢ AC Servos and Drives
➢ Electronic Inverter Controlled Braking
➢ Fan Cooled Electrical Enclosure
Included Accessories:
➢ Oil Gun
➢ Clamping Kit
➢ Anchor Bolts
➢ Power Draw Bar
➢ Open End Wrench Set
➢ Box End Wrench Set
➢ Hex Key Wrench Set
➢ Way Covers
➢ Halogen Work Light
➢ Air Operated Power Draw Bar
Option:
➢ Newall 3 Axis Digital Readout Installed $6,000.00
➢ Rear Splash Guard $1,000.00
➢ 440 Volt Electrics $1,000.00
