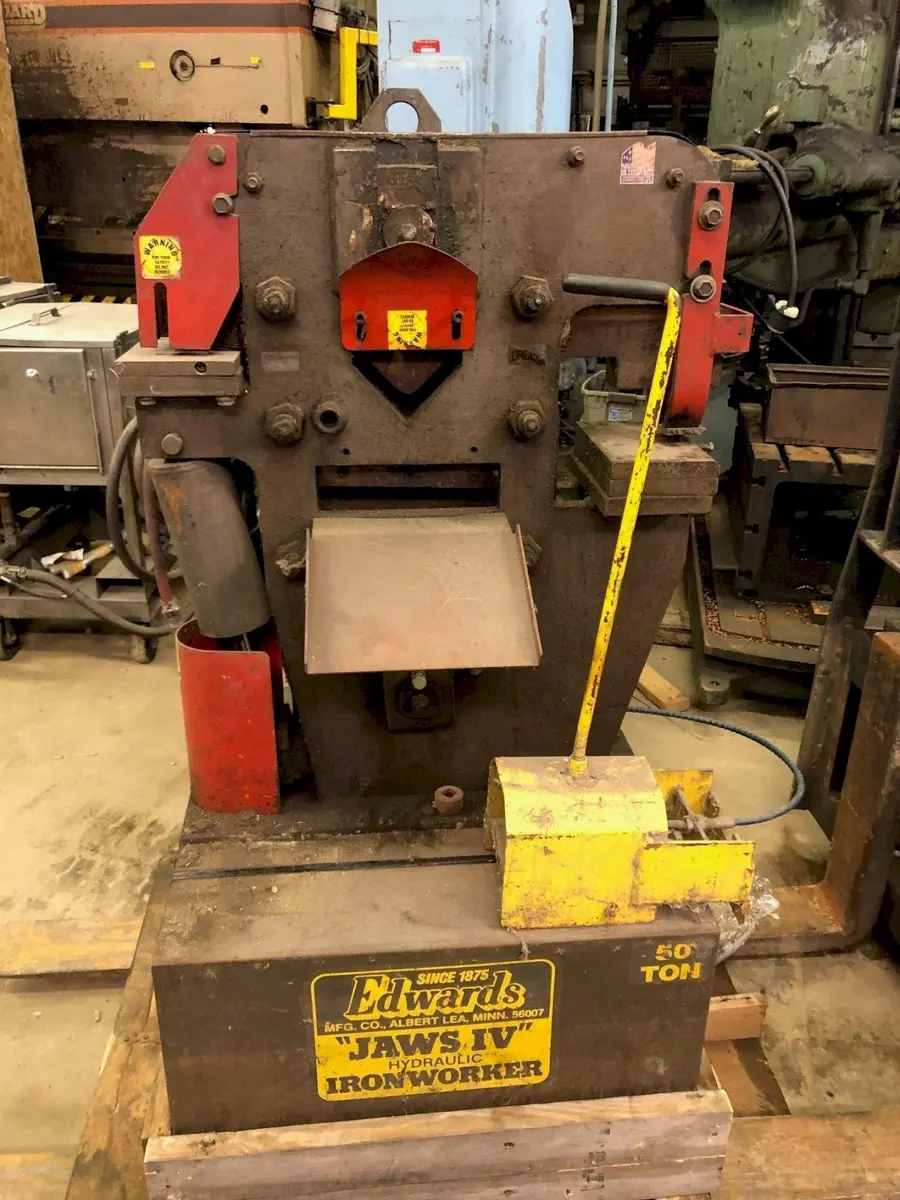

Used 1995 EDWARDS IV-50 | Ironworkers

SPECIFICATIONS:
PUNCHING:
RATED CAPACITY ---------------------------- 50 TON
THROAT DEPTH ------------------------------ 7'
MAXIMUM CAPACITY -------------------------- 1-1/4" DIA.- 1/2" PLATE
LARGEST STANDARD PUNCH & DIE -------------- 1-1/16" PUNCH, 1-1/4" DIE
OPTIONAL OVERSIZE TABLE AND HOLDER -------- 1-9/16" PUNCH, 1-5/8" DIE
OPEN HEIGHT ------------------------------- 8-1/8"
SHUT HEIGHT ------------------------------- 7"
STROKE ------------------------------------ 1-1/8"
BAR SHEAR:
ROUNDS/SQUARES ---------------------------- 1"
FLAT MAXIMUM THICKNESS -------------------- 3/4" X 4"
FLAT MAXIMUM WIDTH ------------------------ 1/2" X 10"
ANGLE SHEAR:
MAXIMUM SIZE ------------------------------ 4" X 4" X 1/4"
CYCLE TIME -------------------------------- 1/2" X 2" SHEAR (2 SEC.)
HYDRAULIC SYSTEM -------------------------- 6-GAL. RESERVOIR 2,200 PSI 1" - 4" CYLINDER
MOTOR STANDARD ---------------------------- WIRED 230V/3PH.
MACHINE:
DIMENSIONS - BASE ------------------------- 30-1/4" X 30-1/4"
HEIGHT ----------------------- 62"
WEIGHT ----------------------- 1,400 LBS.
NOTES:
WIRED 230V/3PH.
SPECIFICATIONS SUBJECT TO VERIFICATION
DELIVERY:
IMMEDIATE, SUBJECT TO PRIOR SALE
