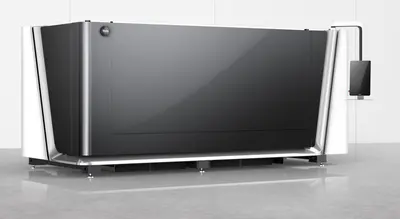

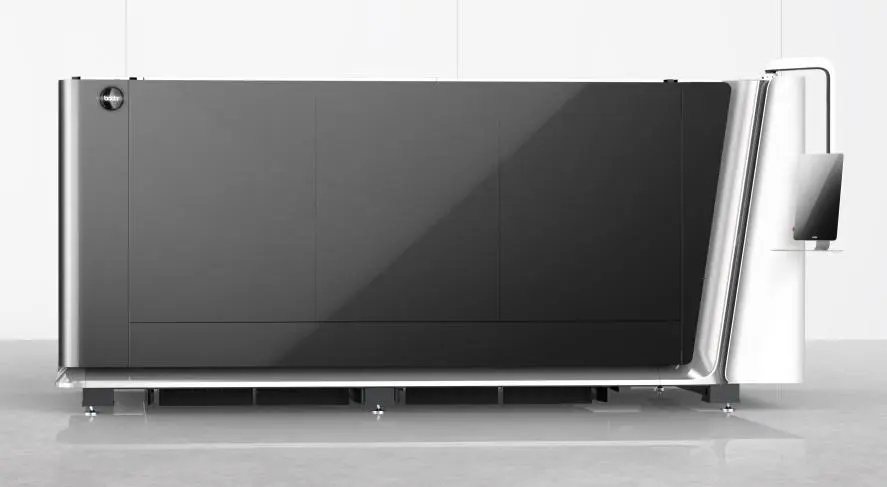

New BODOR I7 6KW | Laser Cutters

FIBER LASER CUTTING MACHINE:

Freight & Tariff
Included

Installation & Training Cost
Included

Transportantion
By Sea

Loading Container
1*40'HQ

Payment Terms
30% down payment, 70% before shipment.

Warranty
Five years limited warranty for main parts. One year free labor.

Optional:

Fume filter


Air Compressor
3kw, 6kw


12kw


Spare Laser Head
3kw


6kw


12kw


Basic Parameter:

Working area
3048mm*1524mm (5'x10')

Max. linkage speed
91m/min (298'/min)

Intelligent Function:

Remnant Typesetting
Yes

Bodor Lightning perforation technology
Yes

High Speed Cutting Expert Database
Yes

Touchscreen Display
Yes

Air pressure intelligent control
12KW and above

Automatic adjustment of cutting gas pressure
6KW below：O2
6KW and above：O2, N2, air

Gas filtration alarm device
12KW

Auto-focus of laser head
Yes

Laser cutting technology expert database
Yes

Ergonomic Remote Control (Bodor Mango®)
Yes

Active anti-collision function
Yes

Intellgent over-heat adaptation
12KW and above

Intelligent anti-shake
Yes

High quality Cutting Expert Database
Yes

Mineral casting anti burning
Yes

Anti-slag Protection
Yes

Gas-saving steady flow nozzle
Yes

Intelligent maintenance reminder
Yes

WIFI internet connection
Yes

Bodor Cloud  sevice
Yes

Performance:

Requirements for sheet
Plate thickness≥0.8mm

Max. acceleration
1.5G

Table load bearing
900kg

Machine overall dimensions
4955mm×2320mm×2200mm (≈16'x7.6'x7.2')

Overall weight
4980kg

Z axis travel
120mm (≈4.7'')

Positioning accuracy
±0.05mm/m

Repositioning accuracy
±0.03mm

Φ30mm roundness
≤0.15mm

□30mm adjacent side dimension difference
≤0.06mm

□190mm adjacent side dimension difference
≤0.15mm

□190mm diagonal size difference
≤0.20mm

Configuration:

Laser source
BodorPower

Laser head
BodorGenius

Bed functions
Electric bed

Machine bed
Tenon and mortise structure bed

Linear Rails
Bodor

Rack
Bodor

X-axis, Y-axis, Z-axis, A-axis
Servo motor and driver
Bodor

Protective Enclosure
Yes

Control system
BodorThinker

Display size
21.5 inches

Door-open Protection
Yes

Intelligent alarm
Yes

Water Chiller
Yes

Centrifugal fan
Yes

Power Requirements
220V/440V/480V, 60HZ, 3PHASE (Up to Clients Power Requirement)

Total power capacity/current with 12KW source (380V)
88.6kVA/134.7A

Total power capacity/current with 6KW source (380V)
58.1KVA/88.3A

Total power capacity/current with 3KW source (380V)
51.8KVA/78.6A
