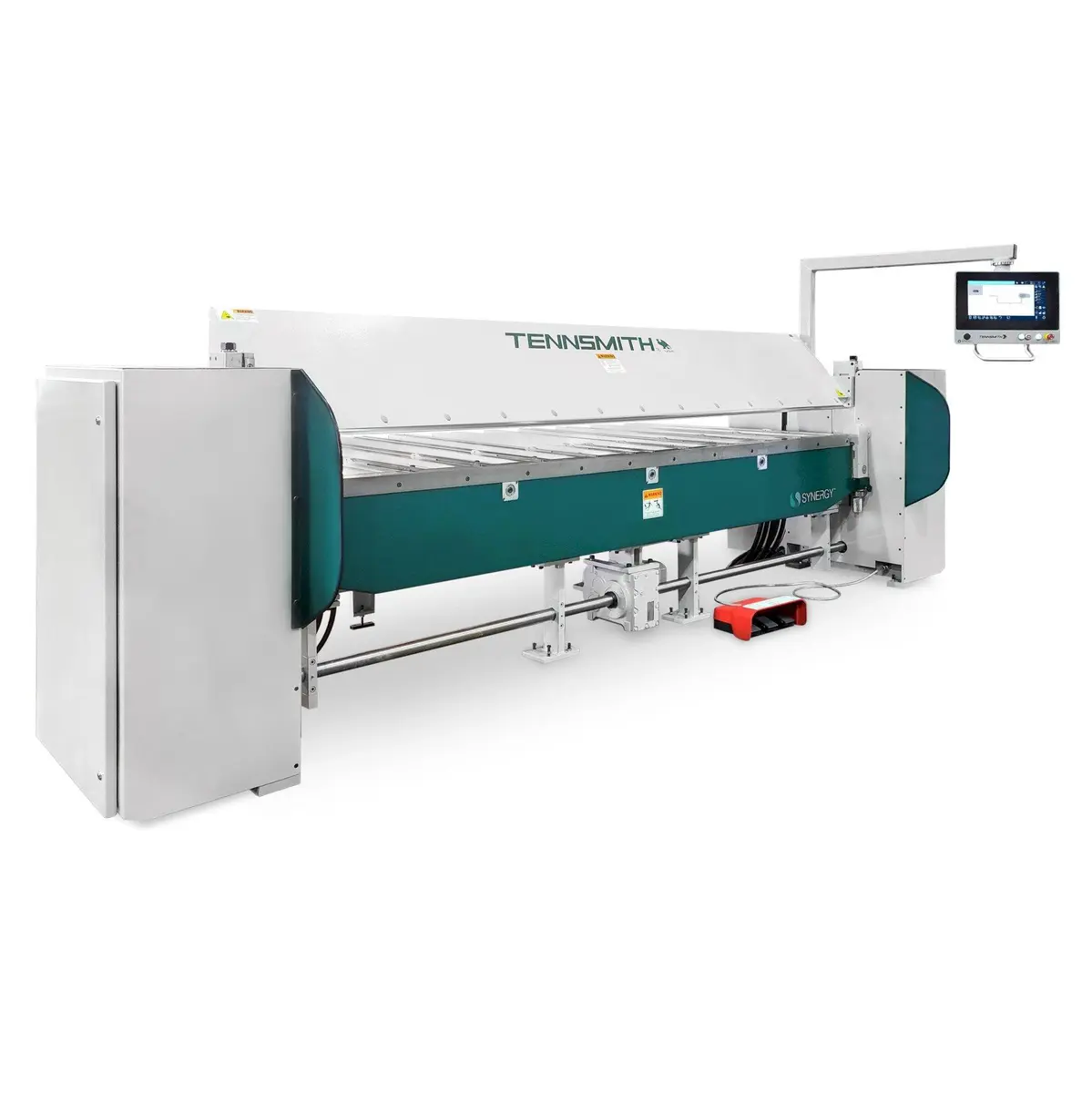

New TENNSMITH SBS126-14-40 | Folding Machines

Control Features:
• SBS126-14 with SYNERGY Control and 40” back gauge
• Windows 8.1 imbedded industry pro.
• Automatic sequencing of the part that is drawn.
• Possibility of saving programs in folders and subfolders.
• 3D Part display.
• Part simulation to verify bends sequence, material handling and collisions.
• A search function is used to make it easier to identify a part.
• Calculates the stretch out of the part.
• Export of programs, library materials and back up to USB stick.
• The actual values of the axis are shown on the display, as well as the motion of the machine in real time.
• There are 3 different hems: Open Closed or Tear Drop.
• Capable of importing DXF files.
• Konstruct offline programming
• Konnect online service and operator assistance.
• Accepts Eagleview® files
Optional Features:
Tooling 126-14:
126-14 Folding Beam Rail (0.250” /6mm) $2,022.00
126-14 - 20 Degree Upper Clamping Beam Rail $2,150.00
126-14 - 45 Degree Upper Clamping Beam Rail $2,150.00
126-14 Radius Upper Clamping Beam Rail 1/16” $3,419.00
Safety Enhancements 126-14:
10’ Light Curtain System $6,750.00
10’ Laser Scanner $14,200.00
Second Operator Foot Pedal $2,400.00
Rear Operator Foot Pedal $2,800.00
Training & Service:
126-14Installation & Training 2 days Continental US California $5,000.00
126-14 Install & Training 2 days Cont. US East/Mountain Time Zone $3,800.00
126-14 Installation & Training 2 days Continental US Central Time Zone $3,500.00
126-14 Installation & Training 2 Days Canada $5,000.00
126-14 Installation & Training 2 days Alaska & Hawaii $7,000.00
Synergy:
18.5 Inch Touch Screen Monitor Upgrade $2,000.00
Synergy Offline Programming 1 Seat $1,150.00
Konstruct Software $1,700.00
Konstruct Mobile Software Package $575.00/yr.
Delivery:
Approx. 36-40 Weeks
