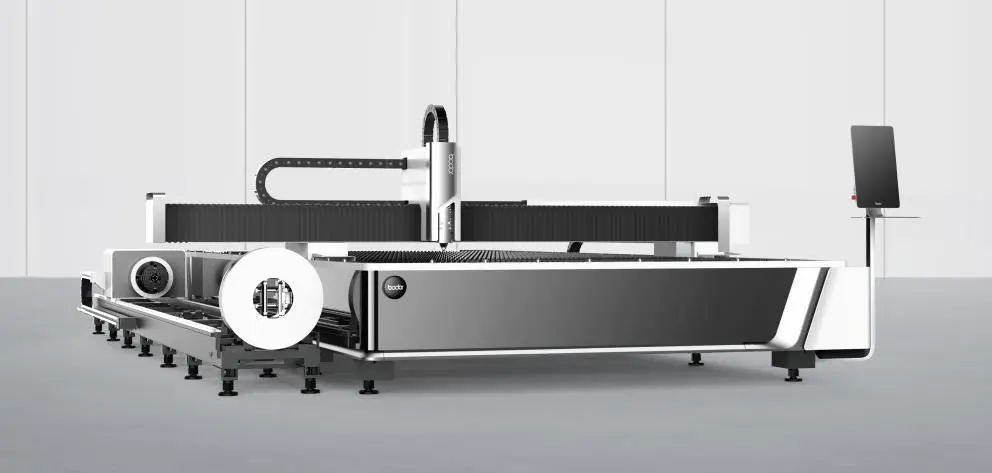

FIBER LASER CUTTING MACHINE:


Laser Power



6kw


Centrifugal Fan
Included

Freight & Tariff
Included

Installation & Training Cost
Included

Transportation
By Sea

Loading Container
1*40'HQ

Payment Terms
30% down payment, 70% before shipment.

Warranty
Three years limited warranty for main parts. One year free labor.

Optional:

Fume Filter


Air Compressor


Basic Parameter:

Working area
6100mm*2500mm

Max. linkage speed
100m/min (328ft/min）

Tube size range
Round tube：φ20 φ230mm                                                                              Square tube ：□20 □230mm                                                                    Rectangular tube：230mm≥Side length≥20mm

Pneumatic chuck maximum load
200kg 33.4kg/m

Intelligent Function:

Bodor Lightning perforation technology
Yes

High Speed Cutting Expert Database
Yes

Automatic adjustment of cutting gas pressure
6kW and below：O2
 above 6kW：O2, N2, air

Automatic tube inspection
Edge-seeking, center-finding

Auto-focus of laser head
Yes

Laser cutting technology expert database
Yes

Ergonomic Remote Control (Bodor Mango®)
Yes

Active anti-collision function
Yes

Angle steel, channel steel cutting
Yes

High quality Cutting Expert Database
Yes

Anti-slag Protection
Yes

Mineral casting anti burning
Yes

Linear rail self-lubrication
Yes

Gas-saving steady flow nozzle
Yes

Automatic lubrication
Yes

Intelligent maintenance reminder
Yes

WIFI internet connection
Yes

Bodor Cloud  service
Yes

Performance:

Operating parameters of board machine
Table load bearing
3000kg

Machine overall dimensions
8641*4879*2103mm

Overall weight
6000kg

Z axis travel
100mm

Max. acceleration
1.5G

Positioning accuracy
±0.05mm/m

Repositioning accuracy
±0.03mm

Operation parameters of pipe cutting
Requirements for tubes
Diameter＜φ50mm
Wall thickness of tubes≥1.2mm；
Diameter≥φ50mm
Wall thickness≥2.5% of Diameters of tubes

Min. tube material surplus
150mm                                        520mm (Optional open type pipe special claw)

W axis rotation angle
Unlimited n*360

Max. rotational speed of W axis
60RPM

A-T6U axis positioning accuracy
0.05mm

A-T6U axis repositioning accuracy
0.03mm

Z axis travel
315mm

U axis maximum moving speed
25m/min

□20mm square position size difference
≤0.50mm

Configuration:

Laser source
Bodor Power

Laser head
BodorGenius

Machine bed
Mortise-and-tenon structure bed

Chuck drive types
pneumatic chuck

Max. length of tube
6m

Linear Rails
Bodor

Rack
Bodor

X-axis, Y-axis, Z-axis, A-axis
Servo motor and driver
Bodor

Integral aluminum cantilever for high pressure steel mould casting
Yes

Control system
Bodor Thinker

Display size
21.5 inches

Acceptable file formats, sheet cutting
G file, DXF, DWG, PLT, ENG

Acceptable file formats, pipe/tube cutting
IGS

Intelligent alarm
Yes

Water Chiller
Yes

Power Requirements
220V/440V/480V, 60HZ  3PHASE (Up to Clients Power Requirement)

Total power capacity/current with 6KW source (380V)
50.6KVA/76.9A

Total power capacity/current with 3KW source (380V)
44.3KVA/67.2A
