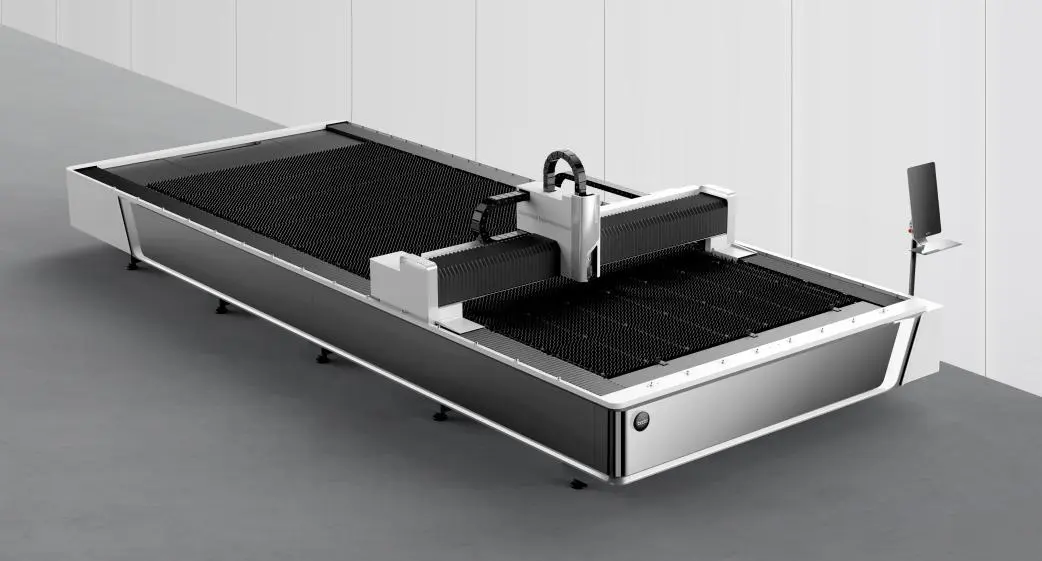

New BODOR A6P | Lasers, CNC

FIBER LASER CUTTING MACHINE:


Laser Power



6kw


Centrifugal Fan
Included

Freight & Tariff
Included

Installation & Training Cost
Included

Transportation
By Sea

Loading Container
1*40'FR

Payment Terms
30% down payment, 70% before shipment.

Warranty
Three years limited warranty for main parts. One year free labor.

Optional:

Scanning Cutting


Fume Filter


Air Compressor


Basic Parameter:

Working area
6100mm*2500mm (≈20'x8.2')

Max. linkage speed
100m/min (328ft/min）

Intelligent Function:

Bodor Lightning perforation technology
Yes

High Speed Cutting Expert Database
Yes

Remnant Typesetting
Yes

Air pressure intelligent control
12KW and above

Automatic adjustment of cutting gas pressure
6kW and below：O2
 above 6kW：O2, N2, air

Gas filtration alarm device
12KW and above

Auto-focus of laser head
Yes

Laser cutting technology expert database
Yes

Ergonomic Remote Control (Bodor Mango®)
Yes

Active anti-collision function
Yes

Intelligent anti-shake of sheet edge
Yes

High quality Cutting Expert Database
Yes

Anti-slag Protection
Yes

Mineral casting anti burning
Yes

Gas-saving steady flow nozzle
Yes

Automatic lubrication
Yes

Intelligent maintenance reminder
Yes

WIFI internet connection
Yes

Bodor Cloud  sevice
Yes

Performance:

Requirements for sheet
Plate thickness≥0.8mm

Max. acceleration
1.5G

Table load bearing
2992kg（1-6kw）
3595kg（12kw）

Machine overall dimensions
8121mm*3925mm*1830mm  (≈26.6'x12.9'x6')

Overall weight
3530kg

Z axis travel
100mm (≈3.9'')

Positioning accuracy
±0.05mm/m

Repositioning accuracy
±0.03mm

Φ30mm roundness
≤0.15mm

□30mm adjacent side dimension difference
≤0.06mm

□190mm adjacent side dimension difference
≤0.15mm

□190mm diagonal size difference
≤0.20mm

Configuration:

Laser source
Bodor Power

Laser head
BodorGenius

Machine bed
Mortise-and-tenon structure bed

Gantry structure
Stretched Aluminum gantry

Linear Rails
Bodor

Rack
Bodor

X-axis, Y-axis, Z-axis, A-axis
Servo motor and driver
Bodor

Integral aluminum cantilever for high pressure steel mould casting
Yes

Control system
Bodor Thinker

Display size
21.5 inches

System identification file format
DXF, DWG, PLT, NC, G file

Intelligent alarm
Yes

Water Chiller
Yes

Power Requirements
220V/440V/480V  60HZ  3PHASE (Up to Clients Power Requirement)

Total power capacity/current with 12KW source (380V)
78.6KVA/119.5A

Total power capacity/current with 6KW source (380V)
48.1KVA/73.1A

Total power capacity/current with 3KW source (380V)
41.8KVA/63.4A
