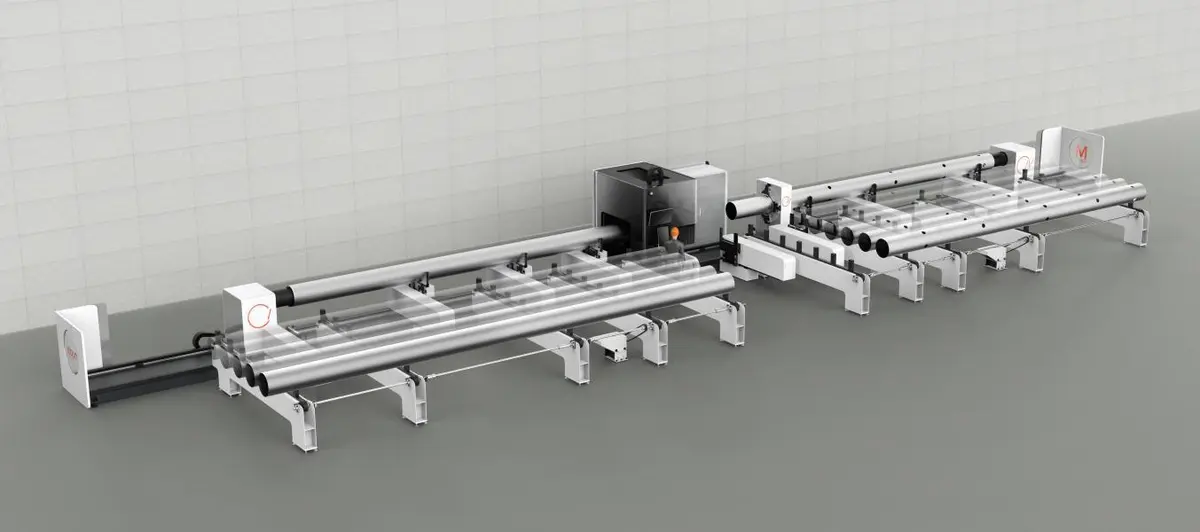

New BODOR M500-120-120 | Laser Cutters



FIBER LASER CUTTING MACHINE:


Laser Power



6kw


Freight & Tariff
Included

Installation & Training Cost
Included

Transportation
By Sea

Loading Container
3*40'GP+3*40'OT+1*20'GP

Payment Terms
30% down payment, 70% before shipment.

Warranty
Three years limited warranty for main parts. One year free labor.

Optional:

M-Loader500-120


Fume Filter


Air Compressor


Bevel Cutting


Weld Recognition


Basic Parameter:

Tube size range
Round tube: Φ60-Φ530mm
Square tube: □60 - □530mm
Rectangular tube: 60mm≤Side length≤530mm
I-beam: 10#-40#

Maximum machinable tube length
12000mm (≈39')

Maximum tube weight
3000kg

Intelligent Function:

Automatic positioning
Yes

Bodor Lightning perforation technology
Yes

High Speed Cutting Expert Database
Yes

Servo roller
Yes

Unloading assist
Yes

Cutting gas automatic pressure regulation function
O2

Touch screen control
Yes

Manual / Automatic control modes
Yes

Variable frequency control of feeding speed
Yes

Automatic focusing function of laser head
Yes

Laser cutting technology database
Yes

Bevel cutting
Yes

Over edge protection
Yes

Active collision prevention
Yes (Not available when optional bevel cutting)

Cutting Angle Steel and Channel Steel
Yes

Gas-saving steady flow nozzle
Yes

Out-of-material alarm
Yes

Intelligent maintenance reminder
Yes

BodorCloud  service
Yes

WIFI internet connection
Yes

Performance:

Tube cross-sectional shape
Round tube, square tube, rectangular tube, angle steel, channel steel, H-beam, etc.

Requirements for tubes
3mm-20mm tube wall thickness

Maximum tube length
12000mm (≈39')

Shortest remaining material
No waste of materials

Dimensions
39000kg

Overall weight
33000mm×4800mm×3400mm (≈108.3'x15.8'x11.2')

Positioning accuracy
±0.05mm/m

Repositioning accuracy
±0.03mm/m

Max. Chuck rotating speed
40r/min

X axis maximum speed
35m/min

Y axis maximum speed
35m/min

X maximum acceleration
0.5G

Y maximum acceleration
0.5G

Z axis maximum speed
25m/min

Configuration:

Laser source
BodorPower

Laser head
BodorGenius T

Chuck drive types
Pneumatic chuck

Number of chucks
4

Linear Rails
Bodor

Rack
Bodor

X-axis, Y-axis, Z-axis, A-axis
Servo motor and driver
Bodor

Control system
BodorThinker  Tube

Special typesetting software for cutting tube machine
BodorNest Tube V1.5

Display size
21.5 inches

File format
IGS

Water Chiller
Yes

Dust removal
Centrifugal fan

Total power capacity/current with 12KW source (380V)
241kVA/305A

Total power capacity/current with 6KW source (380V)
208kVA/263A

M-Loader500-120:

Adaptive length
12000mm (≈39')

One-click setting
Yes

Lack of material alarm
Yes

Add tube midway
Yes

Automatic loading
Yes

Anti-scratch tube
Yes

Host security interlock
Yes

Tube type
Round tube
Yes

Square tube
Yes

Rectangular tube
Yes

Channel tube
Yes

H-tube
Yes

Tube size range
Round tube
  Φ60 - Φ500mm

Square tube
□60 - □350mm

Rectangular tube
350mm≥Side length≥60mm

Channel tube
320mm≥Side length≥60mm

H-tube
320mm≥Side length≥60mm

Maximum tube weight
1600kg

Tube loading length range
Loading: 3500-12000mm (≈11.5'-39')                             Unloading：≤12000mm (39')
Due to the long overhang of some length tubes, the overhang is large

Maximum load capacity of storage bin
9.6t

Location number
11（φ<90）6(φ>90)

Module dimensions
Loading：9300*4700mm*1300mm  (≈30.5'x15.4'x4.3')                            Unloading：11000mm*4700mm*1300mm           (≈36'x15.4'x4.3')

Weight
Loading：700kg                                    Unloading：750kg

Total power capacity/current (380V)
6KVA/27.8A
