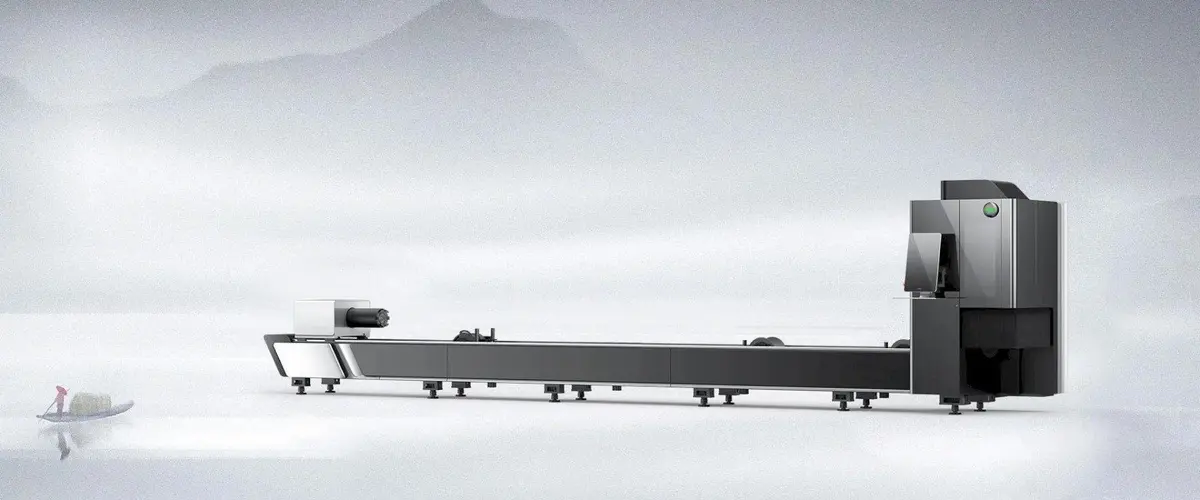

New BODOR K2-65 3 KW | Laser Cutters

FIBER LASER CUTTING MACHINE:

Laser Power


3kw


Freight & Tariff
Included

Installation & Training Cost
Included

Transportation
By Sea

Loading Container
1*40'HQ

Payment Terms
30% down payment, 70% before shipment.

Warranty
Three years limited warranty for main parts. One year free labor.

Optional:

K-Loader2-65 (Automation)


K-Trans2-65 (Automation)


Fume Filter


Air Compressor


Basic Parameter:

Tube cross-sectional shape
Round, square, rectangular, oval, rounded rectangular, Angle steel, channel steel and other tubes

Tube size range
Round tube：φ8-φ230mm
Square tube ：□8-□230mm
Rectangular tube：230mm≥Side length≥8mm
I-beam：10#-14#

Maximum machinable tube length
6500mm (≈21')

Intelligent Function:

Bodor Lightning perforation technology
Yes

High Speed Cutting Expert Database
Yes

Automatic tube inspection
Edge-seeking, center-finding

Cutting gas automatic pressure regulation function
O2

Touch screen control
No

Automatic focusing function of laser head
Yes

Laser cutting technology database
Yes

Over edge protection
Yes

Active obstacle avoidance function
Yes

Angle steel, channel steel cutting
Yes

Anti-slag Protection
Yes

Gas-saving steady flow nozzle
Yes

Intelligent maintenance reminder
Yes

BodorCloud  service
Yes

WIFI internet connection
Yes

Performance:

Requirements for tubes
Diameter＜φ50mm                                                 thickness≥1.2mm；                                      Diameter≥φ50mm               Wall thickness≥2.5% of Diameters of tubes

Shortest remaining material
70mm (≈2.8'')                                                                                                             450mm (Optional open type pipe special claw)

Dimensions
9347mm×1872mm×2286mm (≈30.7'x6.2'x7.5')

Maximum tube weight
300Kg  46Kg/m

Overall weight
2450kg

Positioning accuracy
0.05mm/m

Repositioning accuracy
0.03mm

Max. Chuck rotating speed
90r/min

X axis maximum speed
90m/min

Y axis maximum speed
60m/min

X maximum acceleration
1G

Y maximum acceleration
1G

Z axis maximum speed
≥50m/min

Configuration:

Processing precision（□38mm stainless steel square tube）
Φ20mm roundness
≤0.15mm

□20mm square diagonal size difference
≤0.20mm

□20mm square position size difference
≤0.50mm

Laser source
BodorPower

Laser head
BodorGenius T

Chuck drive types
Pneumatic chuck

Waste Trolley
Yes

Standard tube support holder
Yes

Linear Rails
Bodor

Rack
Bodor

X-axis, Y-axis, Z-axis, A-axis
Servo motor and driver
Bodor

Control system
BodorThinker  Tube

Display size
21.5 inches

Intelligent alarm
Yes

Intelligent LED alert lights
Yes

File format
IGS, DXF, G Code

Water Chiller
Yes

Dust removal
Centrifugal fan

Total power capacity/current with 6KW source (380V)
50KVA/76A

Total power capacity/current with 3KW source (380V)
34.3KVA/52A

K-Loader2-65:

Adaptive length
6500mm (≈21')

One-click setting
Yes

Lack of material alarm
Yes

Add tube midway
Yes

Automatic loading
Yes

Host security interlock
Yes

Tube type
Round tube
Yes

Square tube
Yes

Rectangular tube
Yes

Tube size range
Round tube
 Φ25 - Φ230mm

Square tube
□25 - □160mm

Rectangular tube
230mm≥Side length≥25mm，
Circumscribed circle diameter≤230mm

Maximum tube weight
300KG

Tube loading length range
5000mm-6500mm (≈16.4'-21')

Maximum load capacity of storage bin
1800kg

Location number
Distributed arrangement

Module dimensions
7654mm*2300mm*942mm               (≈25'x7.5'x3')

Weight
1000kg

Total power capacity/current (380V)
3KVA/6.9A
