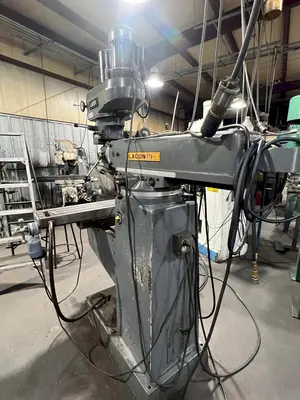

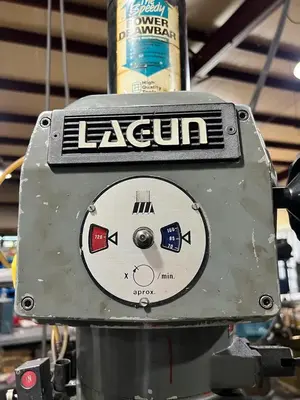

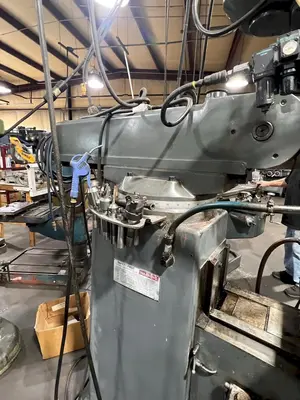

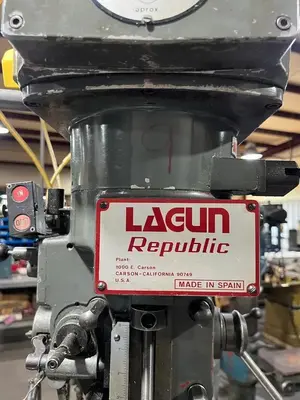

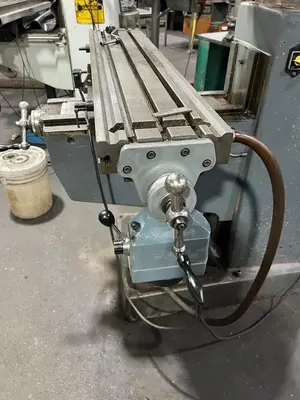

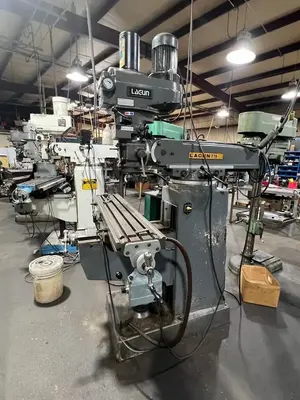

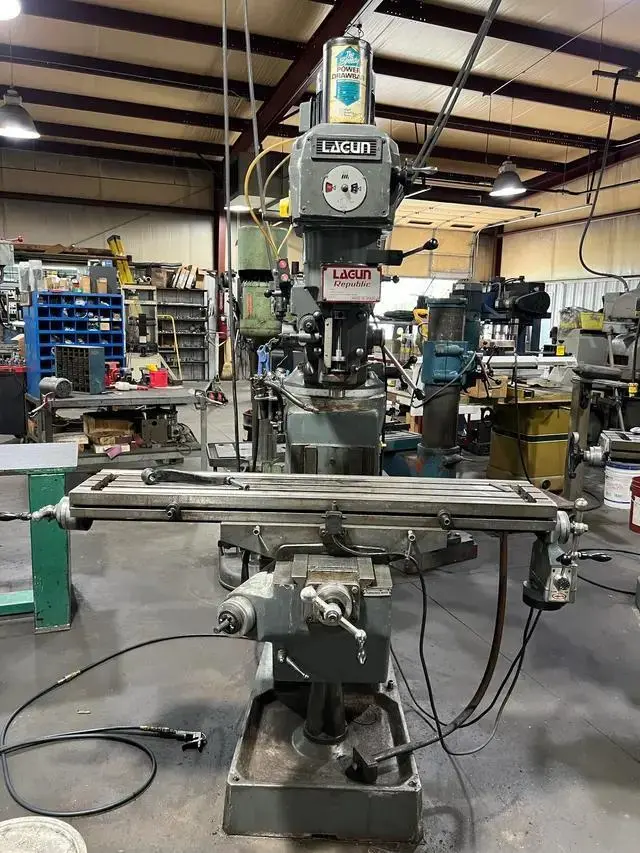

Used REPUBLIC LAGUN FTV | Millers, Vertical

SPECIFICATIONS:
TABLE SIZE ---------------------------- 10 in FB x 50 in LR
T-SLOT SIZE --------------------------- 5/8 in
T-SLOTS ------------------------------- 3 ON 2-1/2 in CENTERS
X-AXIS TRAVEL ------------------------- 16 in
Y-AXIS TRAVEL ------------------------- 18 in
Z-AXIS TRAVEL ------------------------- 16 in
HEAD:
SPINDLE SPEEDS (VARIABLE) ------------- 50 - 4250 RPM
SPINDLE TAPER ------------------------- R-8
QUILL TRAVEL -------------------------- 5 in
COLLET CAPACITY ----------------------- 1/8 in - 3/4 in
MOTOR --------------------------------- 3 HP
WEIGHT -------------------------------- 231 LBS
SHIPPING:
OVERALL WIDTH ------------------------- 66-1/2 in
OVERALL DEPTH ------------------------- 69 in
OVERALL HEIGHT ------------------------ 85 in
APPROXIMATE OVERALL WEIGHT ------------ 2270 LBS
EQUIPPED WITH:
SERVO II POWER FEED
COOLANT SYSTEM
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
DELIVERY:
IMMEDIATE, SUBJECT TO PRIOR SALE
