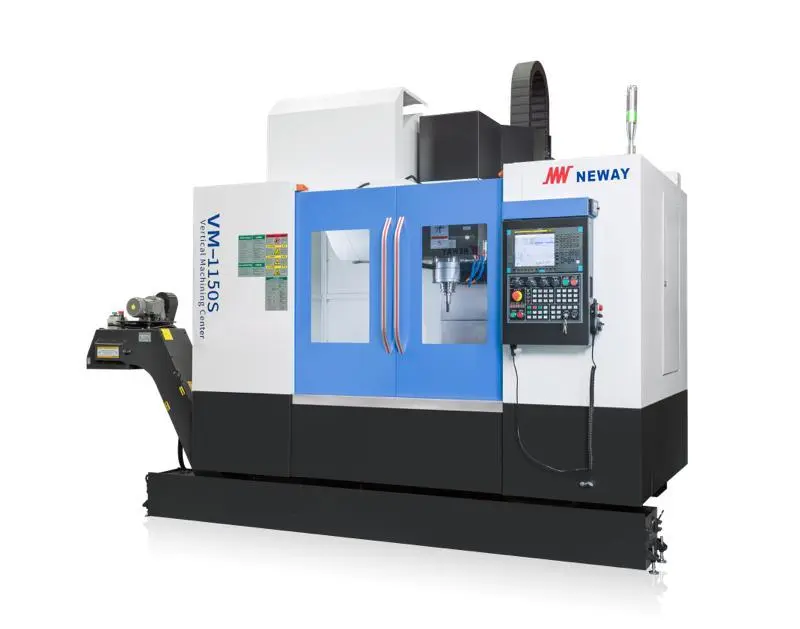

Used NEWAY VM1150-S | Machining Centers, Vertical

SPECIFICATIONS:
Capacity:
* Table Work Area Size: 43.3" x 20.5"(1,100 x 520 mm)
* Table Height from Floor: 36.4"(925 mm)
* Table Max Load: 1,650 Ib (750 Kg)
* Table to Spindle Nose: 5.9''-28" (150- 710 mm)
* Spindle Center to Column: 23" (590 mm)
TRAVELS:
* X/Y/Z Axis: 39.3/ 20.5/ 22” (1000/ 520/ 560mm)
SPINDLE:
* Spindle Nose: CAT-40
* Spindle Motor Power: 20 HP
* Spindle Speed: 10,000 RPM
* Tool Clamping Force: 2,205 lb. (1,000Kg)
* Spindle Bearings Source: NSK
AUTOMATIC TOOL CHANGER:
* Tool Stations – 24 tools
* Max Tool Diameter: 3.07''(78 mm)
* Max Tool Length: 11.8'' (30 0mm)
* Max Tool Weight: 17.6 lbs. (8 Kg)
* Tool-to-Tool Time: 1.8 sec.
* Pull Stud Type: MAS 403 P40T-1
FEEDRATE:
* X /Y/Z Axis Rapid: 1181 /1181 / 945 IPM (30/ 30/ 24 m/min)
* Cutting Feed Rates: 394 IPM (10m/min)
* Jog Feed Rates: 0～150％
POWER & AIR REQUIREMENTS:
220 Volts/ 3 Phase/ 60 Cycle
25KVA
10 cfm Air Flow 87～116 PSI - Air Pressure (280L/min 6～8 bar)
AXIS SPECIFICATION:
* X / Y /Z Axis Ball Screws: 40 mm
* X & Y Axis Motors: 2.4 HP (1.8 KW), Z axis Motor: 4.02 HP (3.0 KW)
COOLANT SYSTEM:
* Pump Motor Output: 0.75 HP (0.55 KW)
* Pump Flow Rate: 7.3 GPM
* Pump Pressure: 217.5 psi (15 bar)
* Tank Capacity: 66gal (300L)
GENERAL:
* Machine Weight: 15,400 lb. (7,000 KG)
* Floor space (L x W X H): 154" x 96" x 118"
EQUIPPED WITH:
-       FANUC 0i-MF PLUS Control
-       Air conditioner electric cabinet
-       Arm type tool changer with 24-tool magazine
-       Air Nozzle
-       Air gun
-       Automatic lubricating system w/ pressure detection sensor
-       Ball screw bearing and spindle bearing (NSK)
-       Big Plus spindle
-       Chip conveyor
-       Coolant pump with 300 liters coolant tank
-       Coolant rear flush
-       CTS interface with rotary coupling ready
-       Dual LED work light
-       Foundation Kit with Leveling bolts and Pads
-       Full roof enclosures
-       Machine manuals
-       Remote MPG
-       Spindle oil chiller
-       Scrap cart
-       Spindle protecting air curtain
-       Tool holder storage shelf
-       Water gun
-       3-color cycle light
SETUP REQUIREMENTS:
Customer must specify voltage (machine voltage 220V)
Customer supplies power& air to the machine.
Customer supplies transformer if required.
Machine must be grounded by customer.
NOTES:
SPECIFICATION SUBJECT TO VERIFICATION
OPTIONAL FETURES:
Accessories Upgrades:
* Air conditioner electrical cabinet
* 300 PSI Coolant through spindle
* Lift-up chip conveyor with scrap cart
* Spindle chiller
* Tool holder storage shelf
* Water gun / air gun to direct chips to conveyor
Control Upgrades:
* 10.4” LCD screen with full keypad
* AICC I (40 blocks look ahead), High Speed Machining Mode
* 2 MB Program Storage
DEVILERY:
SUBJECT TO STOCK
