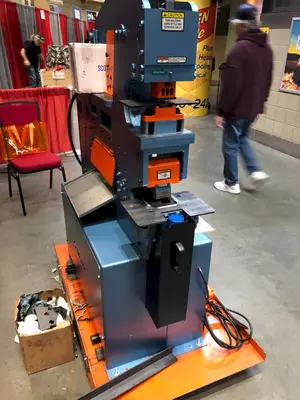

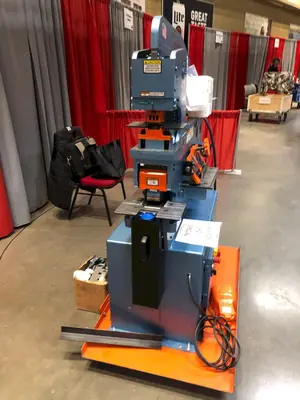

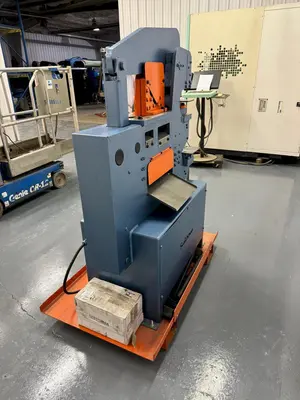

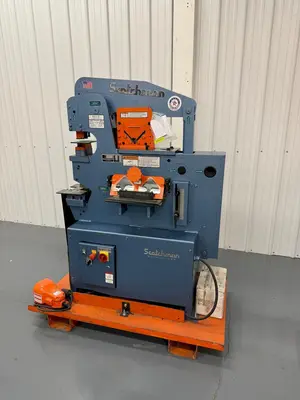

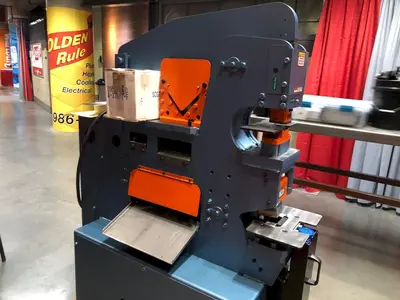

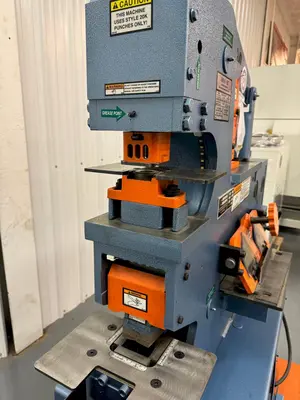

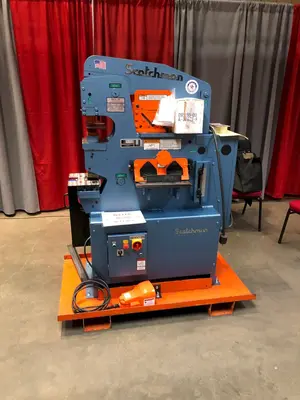

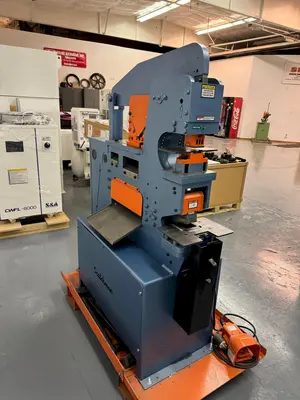

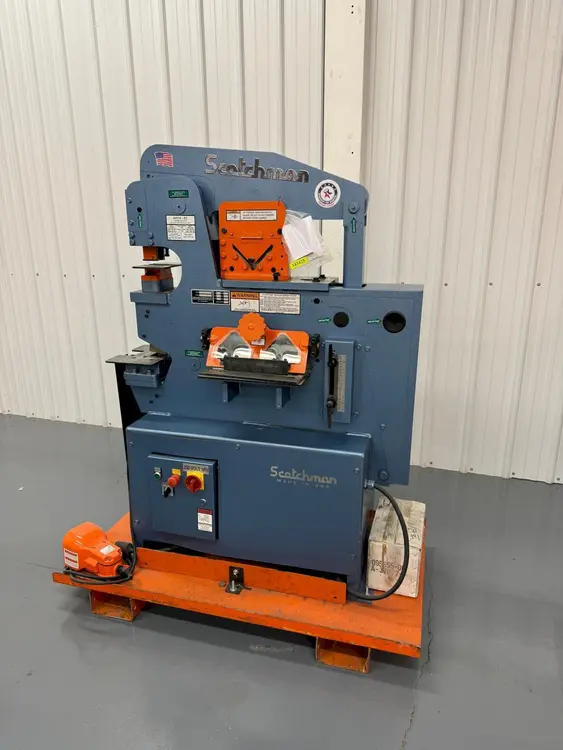

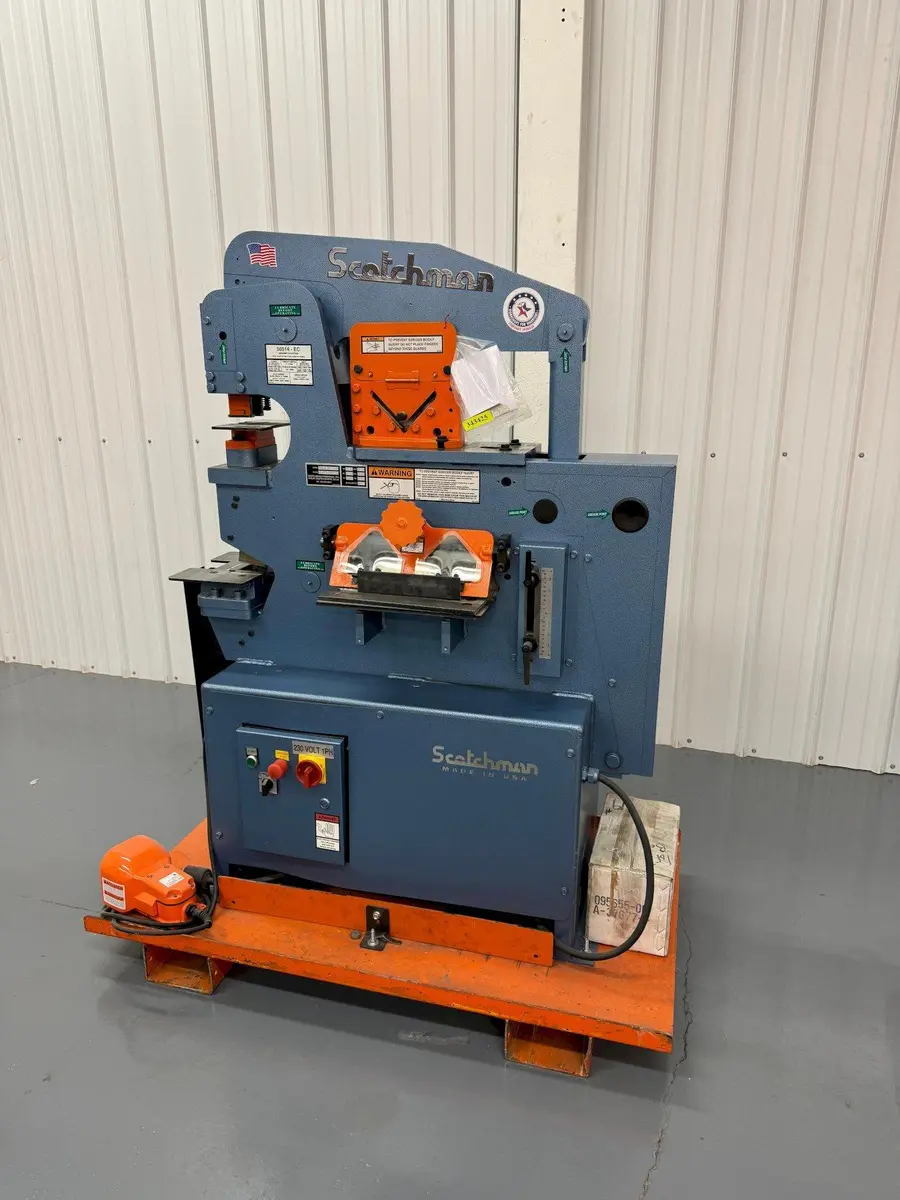

New 2024 SCOTCHMAN 50514 EC | Ironworkers

FEATURES:
* Single Operator
* Keyed Punch Ram for Safety
* Punch Nut W/Wrench & Stripper
* One Round Punch & Die: Max Diameter 1"
* Adjustable Electric Stroke Control w/Scale
* Electric Remote Foot Pedal
* 14" Flat Bar Shear With 4-Way Reversible Blade
* Tool Table Work Area
* Slug Receptacle

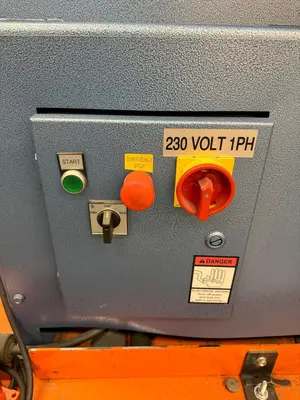

* Electrical Box Supplied with Emergency Palm Button and Lock-Out Tag-Out Accommodations
* All Guards Comply with ANSI B 11-5 Standards
* Forklift Accommodations
* Made in the USA
EQUIPPED WITH:
* Economy #20 Punch & Die Package (16th), Includes:  12 sets of round punches and dies:  11/32, 13/32, 15/32, 17/32, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1 & a snap ring removal tool
* Single Phase Motor, 5 hp 220 volt / 60 Hz
* L.E.D. Light Package-50EC
* Heavy Duty Skid with Fork Pockets
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
OPTIONAL FEATURES:
Single Phase Motor, 5 hp 220 volt / 60 Hz: $500.00
L.E.D. Light Package-50EC (Factory Installation): $485.00
Laser Light - Bar Shear (Factory Installation): $1,075.00
Optional Jog Box - 50EC&ET (Factory Installation): $625.00
Tool Table Extension W/ Punch & Die Drawer (100 lbs. Max): $925.00
Punch Gauging Table with Fence & Scale: $295.00
Shear Table w/Mitre Fence: $325.00
48" Deluxe Back Gauge: $825.00
LG Measuring Package (50C/T): $525.00
Infeed Conveyor (24" X 5 Foot w / Support Arms): $3,295.00
6" Brake Complete (With 4-Way Lower V-Die): $550.00
8" Brake Complete (With 2" V opening dies standard - For 1/4" material): $1,695.00
12" Brake Complete (With 2" V opening dies standard - For 1/4" material): $2,095.00
Brake Length Gauge with Scale: $225.00
12" Brake Table with Scale & Squaring Arm: $425.00
Open End Brake (Max 1/4" x 3" Flat or 1/4" x 3" Angle Iron): $1,625.00
Pipe Notcher Housing (Separate Dies Required for Each Size): $370.00
3/4" Schedule 40 Pipe Upper & Lower Dies - Set: $620.00
1" Schedule 40 Pipe Upper & Lower Dies - Set: $620.00
1-1/4" Schedule 40 Pipe Upper & Lower Dies - Set: $645.00
1-1/2" Schedule 40 Pipe Upper & Lower Dies - Set: $645.00
2" Schedule 40 Pipe Upper & Lower Dies - Set: $675.00
Tool Table Pusher for Pipe Notcher: $75.00
Punch Pusher: $175.00

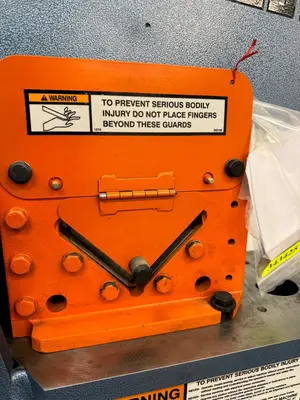

90° V-Notcher (6" x 6" x 1/8" or 3" x 3" x 1/4"): $2,595.00
Rod Shear (Up To 1" Round or 3/4" Square): $1,595.00
Square Tube Shear (1/2" to 1" - 14 Gauge Maximum): $1,275.00
Picket Tool Housing (Separate Dies Req'd for Each Size): $1,195.00
1/2" 14 Gauge Max. Upper & Lower Dies: $395.00
3/4" 14 Gauge Max. Upper & Lower Dies: $395.00
1" 14 Gauge Max. Upper & Lower Dies: $395.00
2-5/8" Die Holder: $200.00
2-5/8" Die Holder Spacer: $120.00
4" x 6" Die Riser Blocks (Set Of 2): $135.00
Bolts - M12 X 110 SHCS (Requires 2): $7.00
Angle Shear 4" x 4" x 3/8" (When Ordered Separately): $1,595.00
Angle Iron Miter Guide: $55.00
Unistrut Shear (PF45 & 50 Ton) (Material Sample Required for All Orders Prior To Order Approval): $Call for Pricing
Weld Coupon Bender - PF45, 50C & 50T (Max 3/8"x2"x7"): $1,825.00
Economy #20 Punch & Die Package (32nd), Includes:  12 sets of round punches and dies:  11/32, 13/32, 15/32, 17/32, 19/32, 21/32, 23/32, 25/32, 27/32, 29/32, 31/32, 1-1/32 & a snap ring removal tool.: $375.00
Economy #20 Punch & Die Package (Metric), Includes:  12 sets of round, metric punches and dies:  8, 10, 12, 14, 16, 18, 20, 22, 24, 28, 30, 32 & a snap ring removal tool.: $395.00
Deluxe #20 Punch & Die Package: Includes:  Round:  9/32, 11/32, 13/32, 15/32, 17/32, 19/32, 21/32, 23/32, 25/32, 27/32, 29/32, 31/32, 1-1/32, 1-1/8, & 1-1/4;  Squares:  3/8, 1/2, 5/8, & 3/4; Ovals:  5/16 x 3/4, 7/16 x 3/4, 9/16 x 3/4, 5/16 x 1, 7/16 x 1, 9/16 x 1, 5/16 x 1-1/4, 7/16 x 1-1/4, 9/16 x 1-1/4 & a snap ring removal tool.: $1,225.00
8" Brake Package: 8" Brake & Brake Length Gauge w/Scale: $1,725.00
12" Brake Package: 12" Brake, Brake Length Gauge w/Scale, & 12" Brake Table w/Scale & Squaring Arm.: $2,150.00
Pipe Notcher Package: Housing, 1-1/4" Sch. 40 Pipe Dies,1-1/2" Sch. 40 Pipe Dies, Tool Table Pusher & Punch Pusher.: $1,345.00
Productivity Package: Infeed Conveyor (24" x 5' w/Support Arms), Laser Light for Bar Shear, LED Light Package, Punch Gauging Table w/Fence & Scale, 48" Deluxe Back Gauge, & Shear Table w/Miter Fence.: $4,850.00
DELIVERY:
SUBJECT TO STOCK
