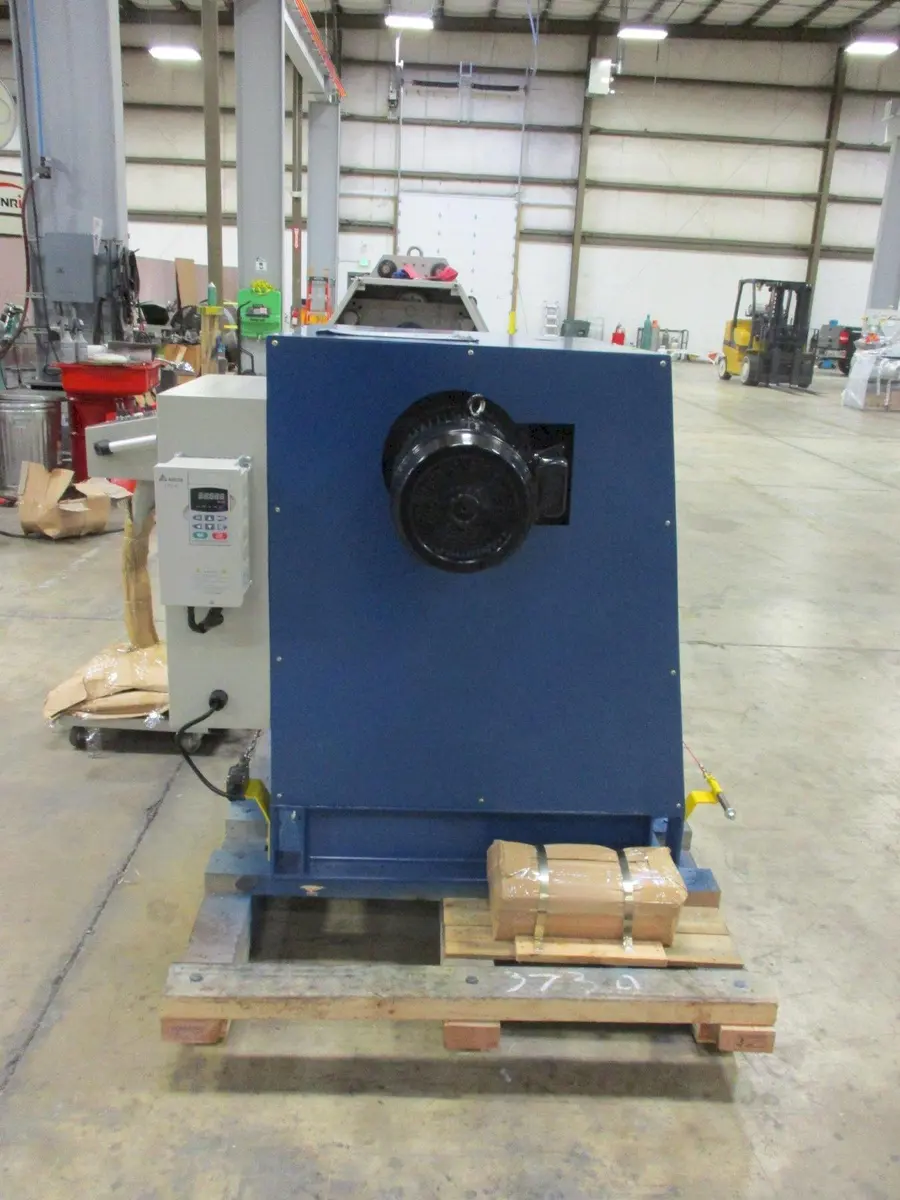

New LEMAS 4-TR 120/5 | Rolls, Plate Bending (incld Pinch)

SPECIFICATIONS:

Capacities in mild steel with 36,000 PSI yield strength: 5' x 10 ga
Diameter of all rolls: 4.72"
Rolling speed - approximately 16' per minute
Total connected motor power @ 480 volts – 2 HP drive motor; 1 HP hydraulic system motor
Approximate net weight – 4,600 pounds
FEATURES:

Direct-Drive design using no belts or chains
Spherical roller bearings on roll shafts
Hydraulically powered adjustment of both side bending rolls
Hydraulic tilting of both side bending rolls for cone rolling
Cone bending attachment
Digital readouts for position of both bending rolls
Hydraulically operated drop end for quick removal of rolled product
Hydraulic pinch roll adjustment with adjustable pinch pressure with pressure gauge
Manual tilt of the lower pinch roll
Dual Forward/Reverse rotation controls - Console mounted and remote hand control on cable
Upper and lower pinch rolls driven
All rolls heat treated to 50 Rc
Electrics for 3/60/220 or 480 volt operation. Low voltage at the controls.
Emergency stop palm button on the control console
Emergency stop cable around the machine

NOTES:
SPECIFICATION SUBJECT TO VERIFICATION
OPTIONAL FEATURES:
* Variable rotation speeds via frequency changer in place of single speed drive: $2,495.00

* Simple adjustable squaring arm, mounted at the front of the machine, to help align parts. Only available on factory ordered machines. Cannot be added to in-stock models.: $1,750.00

* Additional digital readouts to display the position of both ends of both side bending rolls. Helpful for cone rolling applications so the operator can easily repeat the same tilt on the side bending rolls. Only available on factory ordered machines. Cannot be added to in-stock models.: $3,500.00

* Electromechanically operated top support device for supporting cylinders being rolled. Only available on factory ordered machines. Cannot be added to in-stock models.: $9,950.00

DELIVERY:
APPROX. 18-20 WEEKS (TO BE CONFIRMED AT TIME OF ORDER.)
