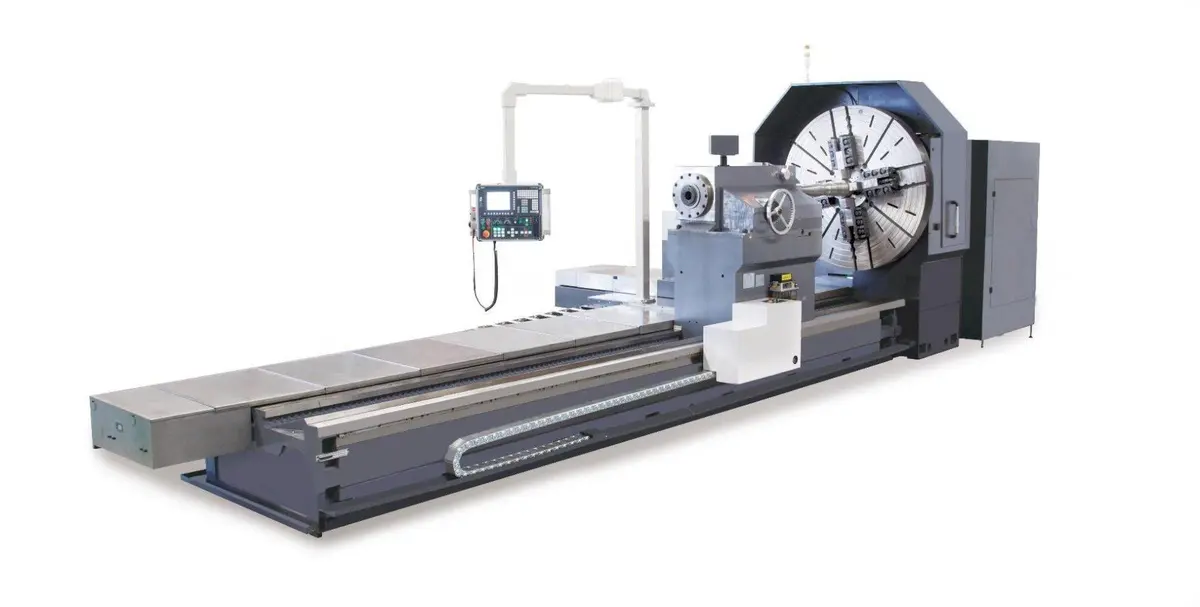

Used NEWAY NL-20050S | Lathes, Flat Bed, CNC

Specification:

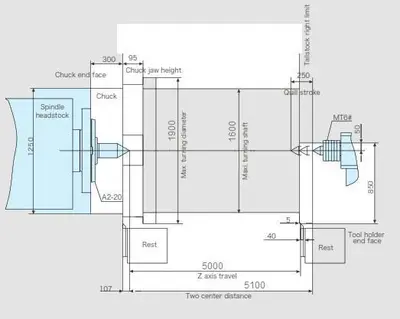

CAPACITY
Max. Work Swing: 86.6’’ (2,200mm)
Swing over Cross Slide: 63’’ (1,600mm)
Max. Turning Diameter: (Disk) 74.8’’ (1,900mm)
                             (Shaft) 63” (1,600 mm)
Max. Turning length: 197’’ (5,000mm)
Max. Loading capacity: 40,000 lbs. (20 tons)
TRAVELS
X Axis: 36.6’’ (930 mm)
Z Axis: 197’’(5,000mm)
SPINDLE
Spindle Nose: A2-20
Spindle Bore: 5.1''(130mm)
Spindle centerline to floor: 81” (2,060 mm)
Spindle Motor Power: 75 / 105 HP (55 / 78 KW)
2-speed gear headstock
Spindle Speed: 4 - 450 RPM
AUTOMATIC TURRET
Tool Stations – 4
Tool Size (turning tool): 40×40 mm (1.5 x 1.5”)
TAILSTOCK
Dia./travel of the sleeve: Æ12.6 / 9.8’’ (Æ320/ 250 mm)
Mandrel taper hole: Metric 100
FEEDRATE
X/Z Axis Rapid: 236.4 / 236.4 IPM (6 / 6 m/min)
POWER & AIR REQUIREMENTS
220 Volts/ 3 Phase/ 60 Cycle
GENERAL
Machine Weight: 90,000 lbs. (45,000 Kg)

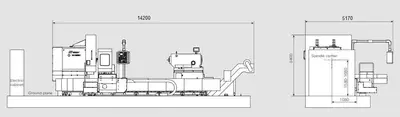

Floor space (L x W X H): 559" x 203.5" x 129.9" (14,200 x 5,170x 3,300 mm)
Equipped With:
* FANUC 0i–TF Plus control
* 1,800 mm, 4-Jaw Manual chuck
* 4-station hydraulic turret
* 4-Jaw Manual chuck 1,800 mm
* A/C Electric cabinet
* Automatic Lubricating System
* Hydraulic system
* Coolant System & Air Gun
* Operation manual
* Hydraulic tailstock
* Linear glass scale on X/Y axis
* Lift-up chip conveyor
* Scrap cart
* 3-color cycle light
* Work light
* Foundation kit
Optional Features:
* Custom Made open top steady rest: PUR
* Custom made full enclosed steady rest: PUR
