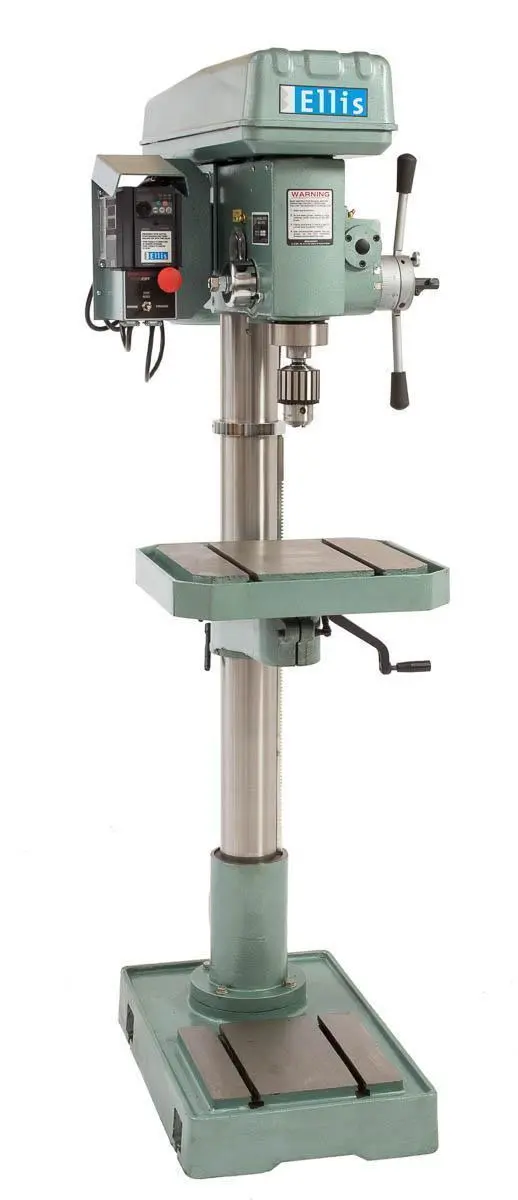

New ELLIS 9400 | Presses, Drill

SPECIFICATIONS:
MOTOR --------------------------- 2 HP AC SINGLE PHASE, CHOOSE 110/220
SPINDLE SPEEDS ------------------ 0-1200 RPM
DRILLS TO CENTER ---------------- 18-1/8 in
DRILLING CAPACITY --------------- STEEL 1-1/16 in CAST IRON 1-1/4 in
TAPPING CAPACITY ---------------- 3/4 in
MORSE TAPER --------------------- #3
COLUMN DIAMETER ----------------- 4 in
SPINDLE TRAVEL ------------------ 5-3/8 in
SPINDLE TO TABLE (MAX) ---------- 27-1/4 in
SPINDLE TO BASE ----------------- 46-1/4 in
SHIPPING WEIGHT ----------------- 675 LBS
DIMENSIONS ---------------------- 69-1/2 in H X 20 in W X 29 in D
TABLE-PRODUCTION TYPE ----------- T- SLOTTED 15-7/8 in X 17-7/8 in 2 SLOTS FOR 1/2 in T-BOLTS GROUND WORKING SURFACE
COOLANT TROUGH BASE ---------------------------- T-SLOTTED 16-3/8 in X 26-5/8 in 2 SLOTS FOR 1/2 in T-BOLTS GROUND WORKING SURFACE
CONTROL BOX --------------------- INFINITELY VARIABLE SPEED WITH A TURN OF THE DIAL ALL SOLID STATE CIRCUITRY
FEATURES:
- POWER DOWN FEED
- VARIABLE SPEED FROM 0-1200 RPM
- ADJUST SPEEDS WHILE OPERATING IN THE MATERIAL
- HIGH TORQUE AT LOW RPM SPEEDS
- INSTANTANEOUS REVERSING FOR TAPPING
- TAPPING HEAD IS NOT NEEDED
- MACHINE TAP GOES INTO BALL BEARING
EQUIPPED WITH:
 Drill Press Chuck ........... 1/16" thru 3/4" with MT3 arbor and key........................................................................$220.00Drill Press Vise .............. 6-1/4" capacity .................. 22 lbs. wt. .........................................................................$325.00
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
DELIVERY:
IMMEDIATE, SUBJECT TO STOCK
