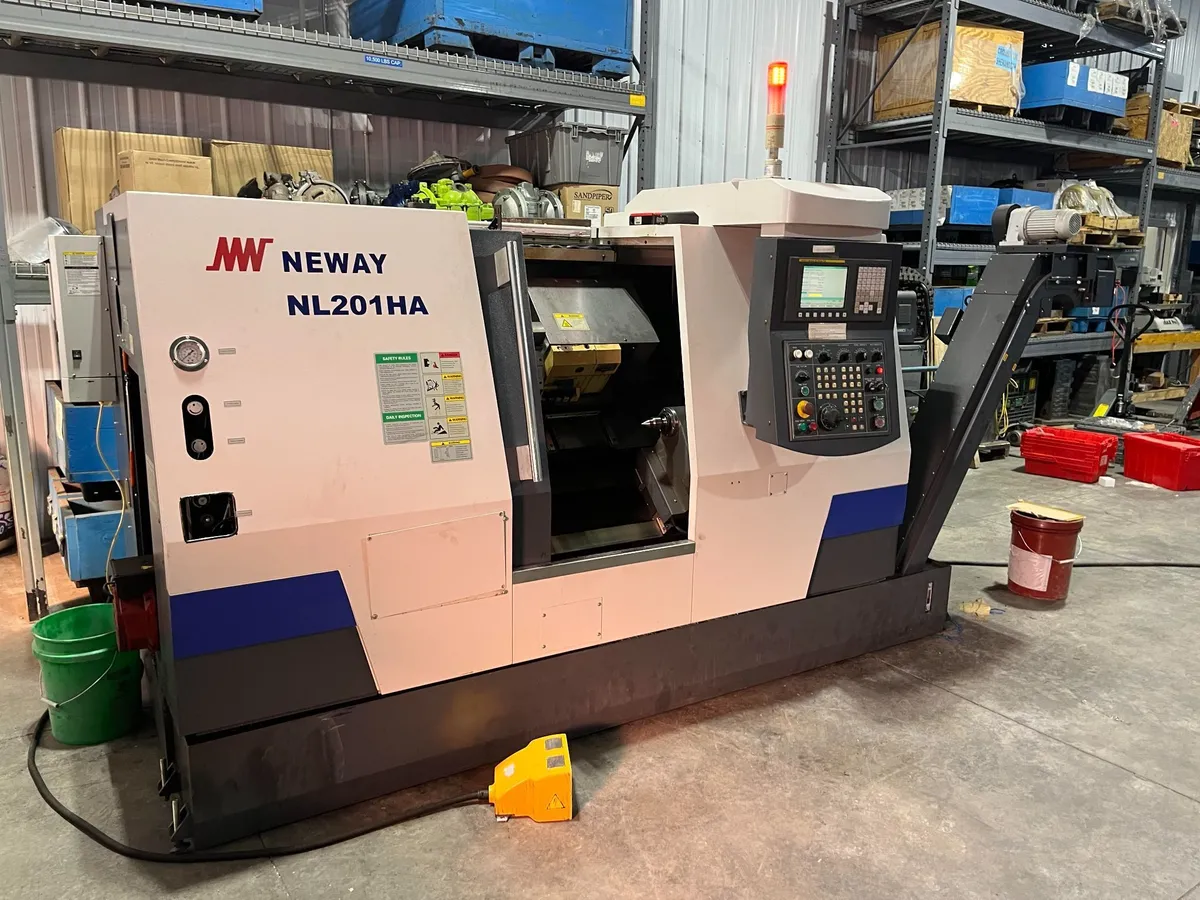

Neway NL201HA Turning Center - CERTIFIED PREOWNED

Max. Swing over bed: 17.7" (Φ 450 mm)

Max. Machining diameter: 7.9" (Φ 200 mm)

Max. Machining length: 14.2" (360 mm)

Diameter of through spindle hole: 2.2" (Φ 56 mm)

X-axis travel: 4.9" (125 mm)

Z-axis travel: 15.7" (400 mm)

Output power: 10/15 HP (7.5/11 kW)

Spindle end form: A2-5

Max. Spindle speed: 6000 rpm

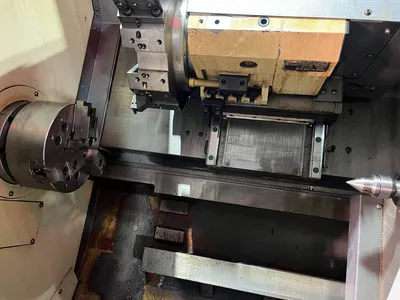

Chuck size: 6"

Rapid feed rate (X-axis): 945 in/min (24 m/min)

Rapid feed rate (Z-axis): 1181 in/min (30 m/min)

Cutting feed rate: 708.7 in/min (18000 mm/min)

Number of tool stations: 8 stations

Tool indexing time: 0.5 sec/station

Lathe tool size: 1" x 1" (25 x 25 mm)

Max. diameter of boring bar: 1.26" (32 mm)

Positioning accuracy (X-axis): 0.00024" (0.006 mm)

Positioning accuracy (Z-axis): 0.00031" (0.008 mm)

Repeatability (X-axis): 0.00016" (0.004 mm)

Repeatability (Z-axis): 0.00024" (0.006 mm)

Power capacity: 27 HP (20 kVA)

Cutting liquid groove volume: 42.3 gal (160 L)

Machine dimensions (L × W × H): 70.5" × 59.8" × 65" (1790 mm × 1520 mm × 1650 mm)

Net weight: 8818 lbs (4000 kg)
