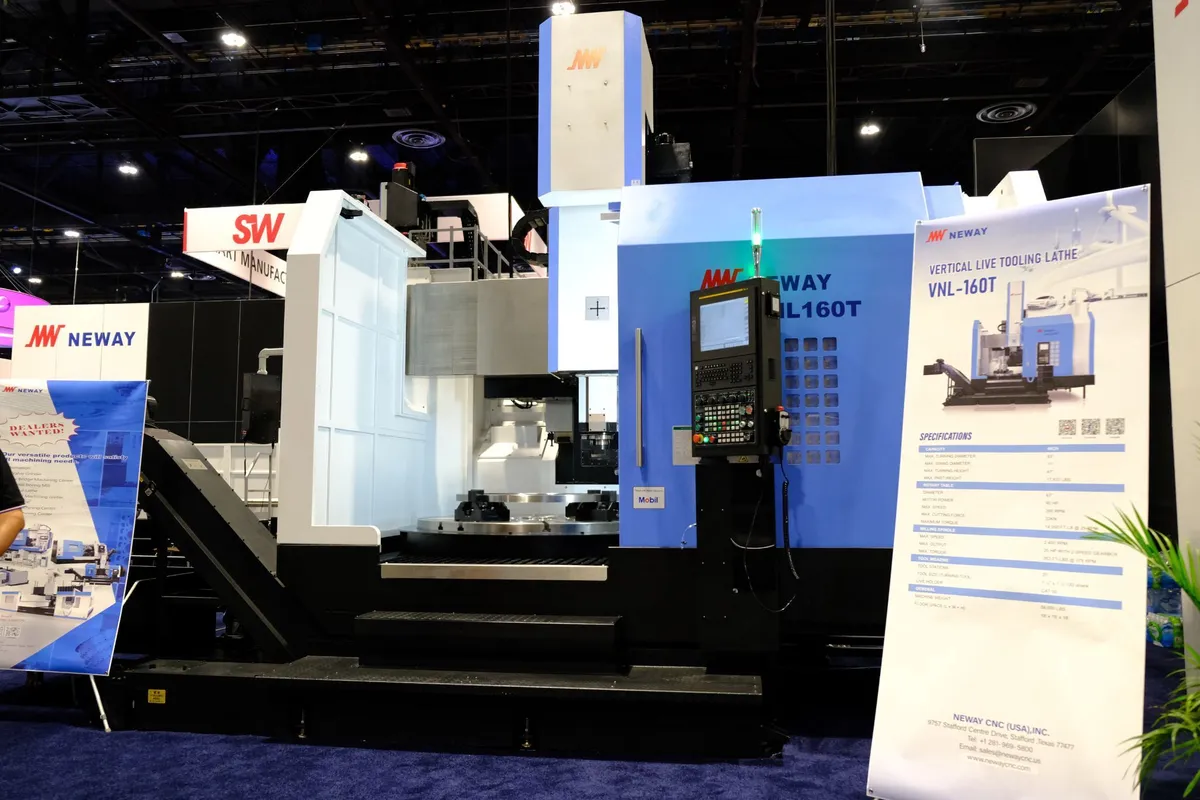

2025 NEWAY VNL160T Vertical Turning Lathe – High-Performance CNC Turning for Heavy-Duty Applications
The 2025 NEWAY VNL160T is a high-performance vertical turning lathe (VTL) designed to provide precision, versatility, and reliability for the most demanding CNC turning applications. Engineered for heavy-duty use, this machine excels in the aerospace, automotive, energy, and general manufacturing industries, delivering superior performance in large part machining. With its robust construction and advanced CNC control, the VNL160T offers unmatched efficiency, accuracy, and productivity in both high-volume and complex turning tasks.
Key Features:
Heavy-Duty Construction: Built for durability, the robust frame ensures exceptional rigidity and stability, reducing vibrations for high-precision machining of large, heavy parts.
High-Speed CNC Spindle: Offers outstanding cutting capabilities for steel, cast iron, titanium, and other tough materials, ensuring smooth finishes and efficient material removal.
Advanced CNC Control: Features an intuitive, user-friendly interface that simplifies programming and setup, making it easy to manage complex turning operations.
Large Part Capacity: Accommodates large workpieces with a generous turning diameter, making it ideal for industries that require heavy-duty turning and machining of large components.
Precision Rotary Table: Ensures smooth and accurate part rotation for improved machining precision and repeatability during turning operations.
Automatic Tool Changer (ATC): Enhances productivity by reducing downtime with quick and efficient tool changes, allowing for smooth, uninterrupted machining.
Efficient Chip and Coolant Management: Keeps the work environment clean and maintains machining efficiency by optimizing chip removal and coolant flow.
The 2025 NEWAY VNL160T Vertical Turning Lathe is the ultimate CNC lathe solution for manufacturers seeking high-performance, heavy-duty vertical turning capabilities. With its robust construction, advanced features, and exceptional versatility, the VNL160T ensures consistent quality, precision machining, and enhanced productivity for large part manufacturing in a variety of industries.
Max. Swing Over Bed: 70.9" (1800 mm)
Max. Turning Diameter: 63" (1600 mm)
Max. Cutting Height: 47.2" (1200 mm)
Max. Workpiece Weight: 17,637 lbs (8000 kg)
Worktable Diameter: 63" (1600 mm)
Max. Worktable Speed: 260 rpm
Live Tool Speed: 2400 rpm
Max. Worktable Torque: 14,005 ft-lbs (19,000 Nm)
ATC Capacity: 16 tools
Tool Type: BT50
Ram Size: 9.8" × 9.8" (250 mm × 250 mm)
Max. Tool Size: 11.0" W × 5.9" T × 15.0" L (280 mm W × 150 mm T × 380 mm L)
Max. Tool Weight: 110 lbs (50 kg)
Max. Tool Load: 1,411 lbs (640 kg)
Tool Change Time (T to T): 45 seconds
Rapid Travel Speed X: 472.4 in/min (12 m/min)
Rapid Travel Speed Z: 393.7 in/min (10 m/min)
Cutting Feed Rate: 78.7 in/min (2000 mm/min)
Travel X: -3.9" to 37.4" (-100 mm to 950 mm)
Travel Z: 35.4" (900 mm)
Travel of Beam: 29.5" (750 mm)
Spindle Motor Power: 50/60 HP (37/45 kW)
Dimension (L × W): 227.9" × 176.0" (5790 mm × 4470 mm)
Height: 208.7" (5300 mm)
Machine Weight: 59,525 lbs (27,000 kg)
