NEWAY VM-1160H VERTICAL MACHINING CENTER - IN STOCK USA
Have one to sell?
ConditionNew
1 available
New
IN STOCK CEDAR RAPIDS IOWA USA

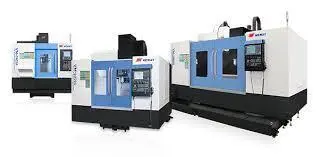

2025 NEWAY VM1160H Vertical Machining Center – Precision CNC Milling for High-Productivity Manufacturing
The 2025 NEWAY VM1160H Vertical Machining Center (VMC) is designed for high-precision CNC milling and is built to meet the demanding needs of industries such as aerospace, automotive, medical, and general manufacturing. With its robust design and advanced features, the VM1160H offers exceptional performance for both complex part machining and high-volume production, delivering the ideal balance of speed, accuracy, and durability.
Key Features:
High-Speed CNC Spindle: Delivers fast material removal and superior surface finishes on a variety of materials, including aluminum, steel, and titanium, ensuring efficiency and high-quality results.
Rigid Cast-Iron Frame: Provides excellent stability and vibration reduction during machining, maintaining precision even under heavy workloads and long production runs.
Precision Linear Guideways: Ensures smooth, accurate motion for improved part accuracy, repeatability, and long-term reliability in demanding CNC milling operations.
Large Work Envelope: Offers ample space for larger workpieces, making it a versatile machine for handling a wide range of machining tasks, from complex geometries to large-scale production runs.
Advanced CNC Control: Features a user-friendly interface for easy programming and setup, allowing operators to quickly adapt to new tasks and boost productivity.
Automatic Tool Changer (ATC): Enhances efficiency by quickly swapping tools during production, reducing downtime in both low- and high-mix production environments.
Efficient Chip and Coolant Management: Optimizes chip removal and coolant flow, ensuring a clean work environment and maintaining high machining performance during long production cycles.
The 2025 NEWAY VM1160H is an ideal solution for manufacturers seeking a high-performance vertical machining center that excels in precision, productivity, and reliability. With its robust construction and advanced features, the VM1160H is built to handle the most demanding CNC milling applications while ensuring consistent, high-quality results.
Worktable Size: 43.3" × 23.6" (1100 mm × 600 mm)
Max. Worktable Load: 1,653 lbs (750 kg)
Axis Travel (X/Y/Z): 39.4" / 23.6" / 22.0" (1000 mm / 600 mm / 560 mm)
Spindle Nose to Worktable: 5.9" to 28.0" (150 mm to 710 mm)
Spindle Center to Column Guideway: 26.0" (660 mm)
Axis Rapid Travel Speed (X/Y/Z): 1417 in/min / 1417 in/min / 1181 in/min (36 m/min / 36 m/min / 30 m/min)
Spindle Motor Power: 10/15 HP (7.5/11 kW [11/15 kW])
Max. Spindle Speed: 8000 rpm
Spindle Taper: 7:24 taper NO.40
ATC Capacity: 24 tools
Max. Tool Diameter/Length/Weight: 3.15" / 11.8" / 17.6 lbs (80 mm / 300 mm / 8 kg)
Tool Change Time (T to T): 1.8 seconds
Positioning Accuracy (X/Y/Z): 0.00031" (0.008 mm)
Repeatability Accuracy (X/Y/Z): 0.00020" (0.005 mm)
Auto Chip Conveyor: Sideway
Machine Weight: 14,991 lbs (6800 kg)
