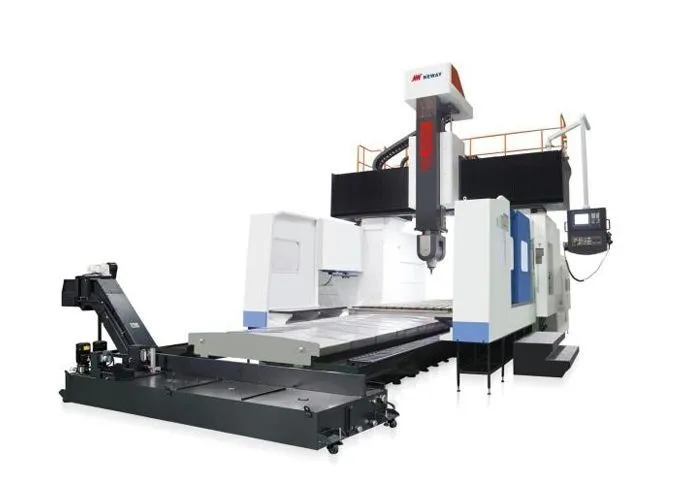

NEWAY PM-2040U 5-Axis Double Column Bridge Machining Center
Have one to sell?
ConditionNew
1 available
New
CAPACITY
Table Size 158” x 79” (4,000 × 2,000 mm)
Spindle Nose to Table 7.9” - 49” (200 - 1,200 mm)
Max. Table Load 44,000 lbs. (20,000 kg)
Distance between Columns 110” (2,800 mm)
TRAVEL
X Travel 165” (4,200 mm)
Y Travel 126” (3,200 mm)
Z Travel 39” (1,000 mm)
SPINDLE
Manufacture German Kessler
Spindle Motor (S1 /S6) 62HP(46KW)
Spindle Speed 24,000 rpm
Max. Torque 73 NM (54 ft-lb)-S6
Spindle Taper HSK-A63
X-AXIS
Rapids 787ipm (20 m/min)
Cutting Feed rate 591 ipm (15 m/min)
Slide way two heavy-duty roller guide ways
Y-AXIS
Rapids 787ipm (20 m/min)
Cutting Feed rate 591 ipm (15 m/min)
Slide way two heavy-duty roller guide ways
Z-AXIS
Rapids 787ipm (20 m/min)
Cutting feed rate 591 ipm (15 m/min)
Slide way four heavy-duty roller guide ways
A-AXIS
Max torque 1,150 Nm
Max speed 100 rpm
Index angle ±105°
Positioning Accuracy ±5 arc second
C-Axis
Max torque 810 Nm
Max speed 100 rpm
Index angle ±360°
Positioning Accuracy ±3 arc second
GENERAL
Power required 220V, 3 phases
Power Consumption 120 KVA
Air System Pressure 6-8 bar
Coolant Tank Capacity 265 gallons (1,000L)
Machine Gross Weight 99,000 lbs. (45,000 kg)
Floor Space (L x W X H) 36’ x 18’ x 20’ (11,000 x 5,500 x 6,000 mm)
3-color cycle light
1,000 Liters coolant tank
Air gun
Air conditioner electric cabinet
Automatic lubrication system
Absolute encoder feedback system
Chip conveyor
Foundation kit with leveling screws and pads
Hydraulic system
Heidenhain Linear scales on X, Y, & Z axis
Heidenhain Angular scales on A & C axis
Nitrogen Control Hydraulic Counter-Weight Balance System
Oil skimmer
Operation manual
Pneumatic system
Remote MPG
Scrap cart
Spindle chiller
Two internal chip augers
Toolbox with hand tools
Water gun
Way covers in all axes
Full splash guard
Work light
OPTIONAL ACCESSORIES
Upgrade to High Torque Kessler HSK-A100 spindle, 55 KW (74 HP), Max.
rpm: 12,500; Max torque: 320 NM@500 rpm
Renishaw RMP60 radio part probe
Renishaw RTS tool Pre-setter
Blum NT Laser Tool Probe
24-tool ATC
40-tool ATC
60-tool ATC
300 PSI CTS
450 PSI CTS
Full wall enclosures
Roof enclosures
Oil mist collector
