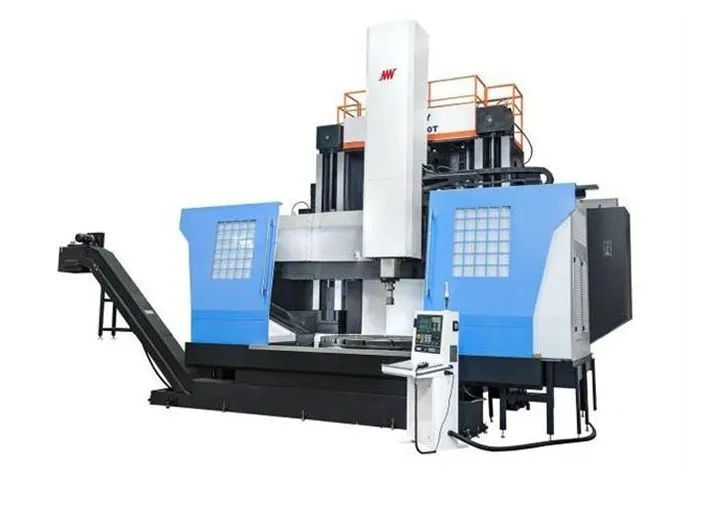

NEWAY VNL250T SUPER DUTY VERTICAL LIVE TOOLING CNC LATHE

Machine Upgrades
300 PSI Coolant through live holder
Auto Tool Pre-setter

Control Upgrades
15” LCD touch screen with full keypad 1
2 GB Data server with Fast Ethernet

CAPACITY
Max. Work Swing: 108.6’’ (2,750 mm)
Max. Turning Diameter: 98.4’’ (2,500 mm)
Max. Turning Height: 78.7’’ (2,000 mm)
Max. Part Load: 35,300 lbs. (16,000 kg)

TABLE
Table diameter: 98’’ (2,500mm)
Chuck type: 4-jaw manual
Speed:1.25 - 120 RPM
Motor rating: 100 HP
4-speed Gearbox
Maximum torque: 55 KNM (40,404 ft-lb)

TRAVELS
X Axis: -0.8 - 55’’ (-20 – 1,400 mm)
Z Axis: 55’’ (1,400 mm)
Elevating Cross Railtravel: 49’’(1,250mm)
C Axis: 360°

MILLING SPINDLE
Max. speed: 2,400rpm
Max. output: 25 HP (18 KW)
2-speed German Gearbox
Spindle taper: CT / BT 50 (Big Plus)

TOOL CHANGE
Tool Stations: 16
Spindle taper:CT/ BT 50
Tool Size (turning tool): 1 ¼”/ 32mmOD shank

POWER & AIR REQUIREMENTS
480 Volts/ 3 Phase/ 60 Cycle / 120 KVA

FEEDRATE
X/Z Axis Rapid: 354 /354 IPM (9/9 m/min)
Cutting Feed Rates: 79 IPM (2m/min)
