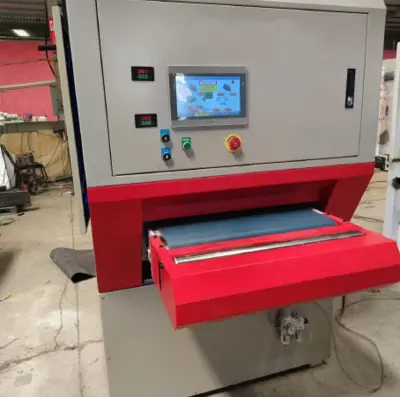

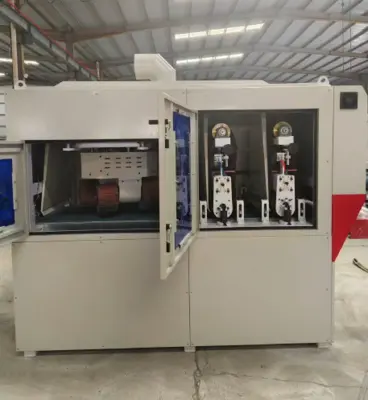

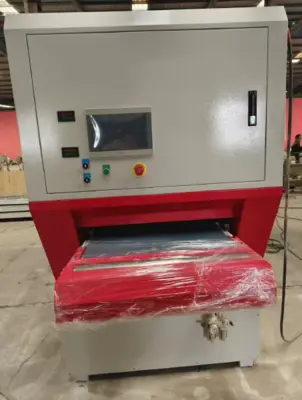

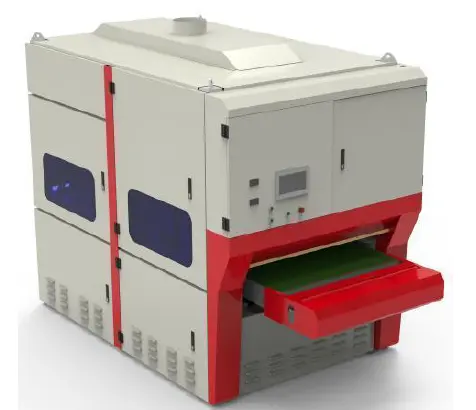

SMC SSD630 DEBURRING MACHINE

Ordinary Sand Belt: 6 units
Edge-Rounding Brush Rollers: 20 units
Loading Container: 1×20 GP
Freight & Tariff: Not Included
Trade Term: DDP
Payment Terms: 30% down payment, 70% before shipment
Warranty: One year warranty for the machine

Options:
Dust Collector: 10.1 hp (7.5 kW) (Optional)
Vacuum Table: (Optional for Stainless Steel)
Transformer

Basic Parameter:
Structure: Two-side sand belt and four edge-rounding rollers
Working Width: 24.8 inches (630 mm)

Configuration:
Working Width Range: 0.4-24.8 inches (10-630 mm)
Metal Piece Thickness: 0.04-1.97 inches (1-50 mm)
Minimum Piece Size: 2x2x0.04 inches (50x50x1 mm)
Total Power: 24.1 hp (18 kW)
Sand Belt Speed: 1,600 RPM
Edge-Rounding Roller Speed (adjustable): 300-1,400 RPM
Conveyor Running Speed: 3.3-16.4 ft/min (1-5 m/min)
Repositioning Accuracy: 0.0008 inches (0.02 mm)
Working Air Pressure: 5.8-10.2 psi (0.4-0.7 kPa)
Control Mode: Manual/Automatic
Edge-Rounding Roller Size: 11x2x1.6 inches (280x50x40 mm) with 12 segments
Sand Belt Size: 64.6x25.2 inches (1640x640 mm)
Conveyor Size: 226.8x24.8x0.28 inches (5760x630x7 mm)
Machine Weight: 4,104 lbs (1,862 kg)
Machine Overall Dimensions: 102.4x43.3x78.7 inches (2600x1100x2000 mm)
