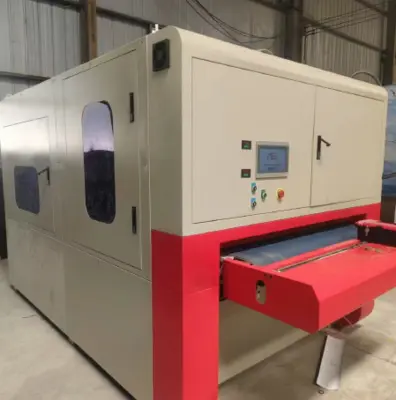

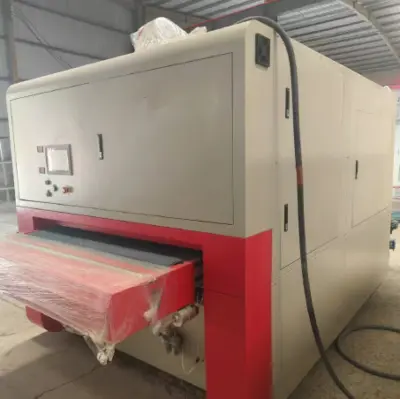

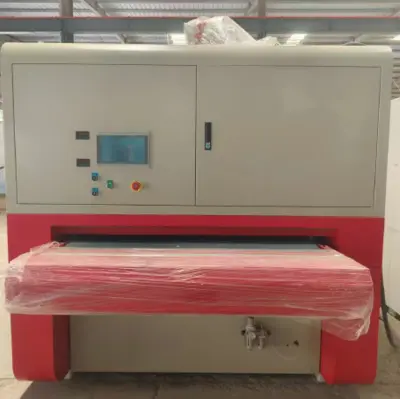

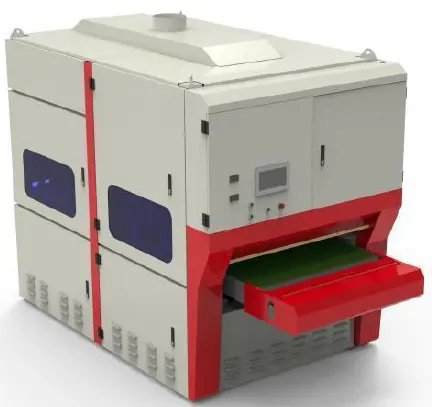

SMC SSD1300 DEBURRING MACHINE

Basic Parameter:
Structure: Two sides sand belt and six edge-rounding rollers
Working Width: 51.2 inches (1300 mm)

Configuration:
Working Width Range: 0.4-51.2 inches (10-1300 mm)
Metal Piece Thickness: 0.06-1.97 inches (1.5-50 mm)
Minimum Piece Size: 2x2x0.04 inches (50x50x1 mm)
Total Power: 70.8 hp (52.75 kW)
Sand Belt Speed: 1,250 RPM
Edge-Rounding Roller Speed (adjustable): 300-1,400 RPM
Conveyor Running Speed: 3.3-16.4 ft/min (1-5 m/min)
Repositioning Accuracy: 0.0008 inches (0.02 mm)
Working Air Pressure: 5.8-10.2 psi (0.4-0.7 kPa)
Control Mode: Manual/Automatic
Edge-Rounding Roller Size: 11x2x1.6 inches (280x50x40 mm) with 48 segments
Sand Belt Size: 86.6x51.6 inches (2200x1310 mm)
Conveyor Size: 278x51.2x0.28 inches (7060x1300x7 mm)
Machine Weight: 8,818 lbs (4000 kg)
Machine Overall Dimensions: 161.4x82.7x90.6 inches (4100x2100x2300 mm)
