NEWAY HE50D HIGH SPEED HORIZONTAL MACHINING CENTER - IN STOCK USA
Have one to sell?
ConditionNew
1 available
New

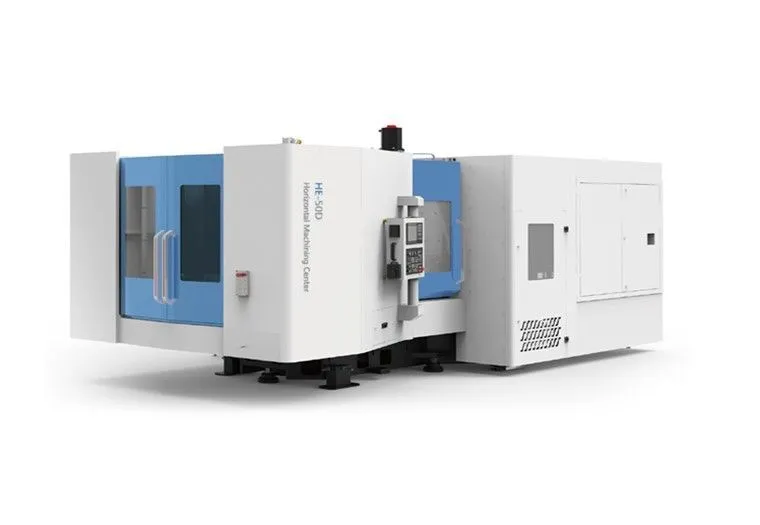

2025 NEWAY HE50D Horizontal Machining Center – High-Precision CNC Milling for Versatile Manufacturing
The 2025 NEWAY HE50D Horizontal Machining Center (HMC) is a high-performance CNC milling machine designed to provide superior precision and efficiency for a wide range of manufacturing applications. With its advanced features and robust construction, the HE50D is ideal for industries such as aerospace, automotive, medical, and general manufacturing. This versatile HMC offers unmatched performance for both complex part machining and high-volume production, making it the perfect solution for today’s precision-driven production environments.
Key Features:
High-Speed CNC Spindle: Provides excellent material removal rates and fine surface finishes across a variety of materials, including aluminum, steel, and titanium, ensuring fast, efficient machining with precision.
Rigid Machine Structure: Built with a heavy-duty, rigid frame to minimize vibrations and maintain accuracy even during demanding cutting operations, ensuring consistent, high-quality results.
Precision Rotary Table: The horizontal rotary table ensures precise part rotation for improved machining accuracy and repeatability in multi-sided part processing.
Advanced CNC Control: The intuitive, user-friendly control system supports complex programming and reduces setup times, optimizing workflow for increased productivity.
Automatic Tool Changer (ATC): Enhances efficiency by reducing downtime and providing fast, reliable tool changes, making it ideal for both low- and high-mix production environments.
Large Work Envelope: Offers an ample work area for machining larger parts, increasing flexibility and capability for a wide range of machining tasks.
Efficient Chip and Coolant Management: The optimized chip removal system and coolant management ensure a clean work environment and improve machining performance during long production runs.
The 2025 NEWAY HE50D Horizontal Machining Center is designed for manufacturers seeking a versatile, high-performance CNC milling solution that delivers precision, productivity, and reliability. With its robust features and exceptional machining capabilities, the HE50D is the ideal choice for a wide range of CNC milling applications, ensuring high-quality results in both complex and high-volume manufacturing tasks.
CAPACITY:
Table Dimension: 19.7 x 19.7 inches (500 x 500 mm)
Max. Load: 1,100 lb (500 kg)
Table Index: 0.001° × 360,000
Spindle Centerline to Table: 1.2–30 inches (30–760 mm)
Spindle Nose to Table’s Centerline: 2.8–34.3 inches (70–870 mm)
Maximum Part Dimension: Ø31.5 × 39.4 inches (Ø800 × 1,000 mm)
Pallet Quantity: 2
Pallet (L × W): 19.7 × 19.7 inches (500 × 500 mm)
Pallet Change Time: 12 seconds
TRAVELS:
X / Y / Z / B Axis: 28.7 / 28.7 / 31.5 inches / 360° (730 / 730 / 800 mm / 360°)
SPINDLE:
Spindle Taper: CT40 / BT40
Spindle Motor Power: 40.2 hp (30 kW, S3)
Spindle Speed: 20 – 12,000 RPM
Spindle Torque: 141 ft-lb (191 Nm)
Spindle Type: Built-in spindle
AUTOMATIC TOOL CHANGER:
Tool Stations: 40 tools
Tool Type: HSK-A63 / CT40 / BT40
Max Tool Diameter: 3.5 inches (85 mm)
Max Tool Length: 21.7 inches (550 mm)
Max Tool Weight: 18 lb (8 kg)
Tool-to-Tool Time: 1.5 seconds
Tool Selection: Random
FEEDRATE:
X / Y / Z Axis Rapid: 2,362 IPM (60 m/min)
Cutting Feed Rates: 2,362 IPM (60 m/min)
Minimum Increment: 0.001 mm
ACCURACY (Full Travel ~ Laser Calibrated):
Positioning (X / Y / Z): 0.00039 inches (0.01 mm)
Repeatability (X / Y / Z): 0.0002 inches (0.006 mm)
B-Axis Indexing Accuracy: ±15 arc seconds
B-Axis Indexing Repeatability: ±6 arc seconds
GENERAL:
Power Supply: 220 Volts / 3 Phase / 60 Cycle
Power Consumption: 75 KVA
Air Pressure: 10.6 CFM (300 L/min) at 87–116 psi (6–8 bar)
Coolant Tank Capacity: 158.5 gallons (600 liters)
Machine Weight: 26,455 lb (12,000 kg)
Floor Space (L × W × H): 21 × 9.5 × 9.6 feet (6,385 × 2,900 × 2,935 mm)
- FANUC Oi-MF PLUS control w/ 10.4” LCD screen
- 12,000 rpm, Built-in spindle
- 0.001° x 360,000indexing rotary table
- 300 PSI coolant through spindle
- 40-tool magazine
- 3-color cycle light
- 600 liters coolant tank
- Air Conditioner Electric cabinet
- Air Gun
- Automatic Lubricating System with pressure detection
- Air Blast around Spindle
- Air through spindle
- Coolant nozzles around spindle
- Chilled ball screws
- Chip conveyor
- Foundation Kit with Leveling bolts and Pads
- Full enclosures
- Foot pedal for table unclamp
- Hydraulic system
- Internal Chip Augers (2x)
