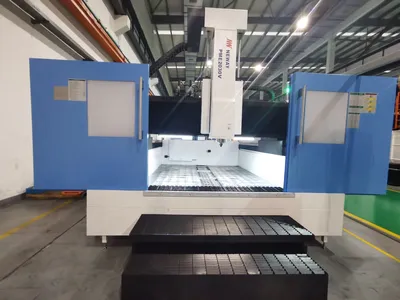

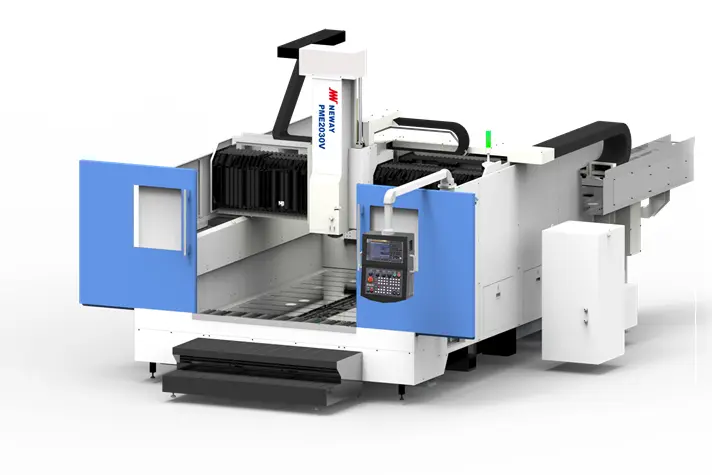

2025 NEWAY PME-2030V Gantry-Type Vertical Machining Center – High-Precision CNC Milling for Complex Part Production
The 2025 NEWAY PME-2030V Gantry-Type Vertical Machining Center (VMC) is a high-performance CNC milling machine designed for precision, flexibility, and efficiency in various manufacturing applications. With its gantry-style design, the PME-2030V provides exceptional stability and accuracy, making it ideal for industries such as aerospace, automotive, medical, and general manufacturing. This machine excels in both complex part machining and high-volume production, ensuring superior results in even the most demanding environments.
Key Features:
Gantry-Style Design: The robust gantry structure enhances machine rigidity and reduces vibrations, providing excellent accuracy and stability during high-load machining operations.
High-Speed CNC Spindle: Offers outstanding material removal rates and fine surface finishes on materials like aluminum, steel, and titanium, ensuring speed and precision in every task.
Precision Linear Guideways: Provides smooth and precise motion, improving part accuracy, repeatability, and long-term reliability, even in complex machining tasks.
Advanced CNC Control: Features a user-friendly control system for easy programming and setup, enabling faster cycle times and optimized workflow.
Large Work Envelope: Accommodates larger workpieces, increasing versatility and allowing for complex geometries and larger-scale production runs.
Automatic Tool Changer (ATC): Boosts efficiency by reducing downtime with fast, reliable tool changes, making it ideal for both low- and high-mix production environments.
Efficient Chip and Coolant Management: Optimized chip removal and coolant flow ensure a clean work environment and improved machining performance during long production cycles.
The 2025 NEWAY PME-2030V Gantry-Type Vertical Machining Center offers exceptional precision, flexibility, and performance for manufacturers seeking a reliable CNC milling solution. Whether handling intricate part designs or high-volume production, the PME-2030V is engineered to provide consistent, high-quality results and ensure long-term efficiency in demanding CNC machining applications.
CAPACITY:
Table Size: 118" × 79" (3,000 × 2,000 mm)
Spindle Nose to Table: 2" – 29.5" (50 – 750 mm)
Table Load: 11,023 lbs. (5,000 kg)
Distance between Columns: 91" (2,300 mm)
TRAVEL:
X Axis: 118" (3,000 mm)
Y Axis: 79" (2,000 mm)
Z Axis: 28" (700 mm)
SPINDLE:
Type: Motorized spindle
Spindle Motor (S6; 40%): 25 HP (18.5 kW)
Spindle Speed: 40 – 18,000 RPM
Max. Torque (S1 / S6): 52 Nm (38.3 ft-lb)
Spindle Taper: HSK-A63
X-AXIS:
Rapids: 1,969 IPM (50 m/min)
Cutting Feed Rate: 983 IPM (25 m/min)
Y-AXIS:
Rapids: 1,969 IPM (50 m/min)
Cutting Feed Rate: 983 IPM (25 m/min)
Z-AXIS:
Rapids: 1,890 IPM (48 m/min)
Cutting Feed Rate: 983 IPM (25 m/min)
GENERAL:
Air System Pressure: 87 – 116 psi (6 – 8 bar) at 17.7 CFM (500 L/min)
Coolant Tank Capacity: 120 gallons (450 L)
Power Supply: 220V, 3 phases
Power Consumption: 45 KVA
Machine Gross Weight: 30,870 lbs. (14,000 kg)
Floor Space (L × W × H): 22' × 13' × 11' (6,600 × 3,900 × 3,400 mm)
Houston Tx
3-color cycle light
18K rpm, HSK-A63 integral spindle
40-Tool servo driven carousel type ATC
Air gun
Air conditioner electric cabinet
Automatic lubrication system
Absolute encoder feedback system
Coolant system with 120 gallons coolant tank
Foundation kit with leveling screws and pads
Hydraulic unit
LED Work light
Lift-up chip conveyor and scrap cart
Nitrogen Control Hydraulic Counter Weight Balance System
Oil skimmer
Operation manual
Operator Platforms
Overhead control pendent
Pneumatic system
Remote MPG
Spindle chiller
Toolbox with hand tools
Way covers in all axes
Wall splash guard
X & Y axis linear scales
