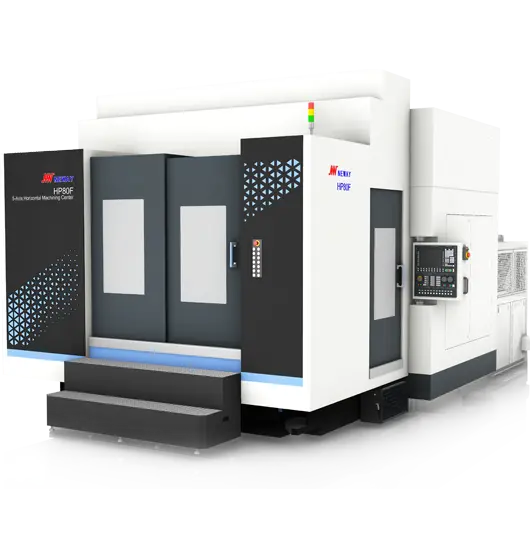

2025 NEWAY HP80F 5-Axis CNC Horizontal Machining Center – Precision CNC Machining for Complex Part Production
Have one to sell?
ConditionNew
1 available
New
2025 NEWAY HP80F 5-Axis CNC Horizontal Machining Center – Precision CNC Machining for Complex Part Production
The 2025 NEWAY HP80F is a high-performance 5-axis CNC horizontal machining center designed to deliver speed, precision, and versatility for demanding manufacturing environments. Perfect for industries such as aerospace, automotive, medical, and general manufacturing, the HP80F is engineered to handle both complex geometries and high-volume production with ease.
Key Features:
5-Axis Rotary Table: Enables precise multi-angle machining for complex parts, reducing setup time and increasing flexibility in production.
High-Speed CNC Spindle: Provides exceptional cutting performance for a wide range of materials, including aluminum, steel, and titanium, ensuring high-quality finishes and fast material removal.
Rigid Cast Iron Frame: Built for stability and vibration resistance, ensuring consistent, high-precision machining throughout long production runs.
Advanced CNC Control: Offers a user-friendly interface for quick setup and easy operation, streamlining the machining process for operators of all skill levels.
High-Precision Linear Guideways: Ensures smooth, accurate motion for precise part production, improving repeatability and minimizing errors in complex machining tasks.
Automatic Tool Changer (ATC): Optimizes efficiency with quick and reliable tool changes, reducing downtime and enhancing productivity in both low- and high-mix production environments.
Efficient Chip and Coolant Management: Keeps the work area clean and improves machining efficiency by effectively managing chip removal and coolant flow.
The 2025 NEWAY HP80F is the ideal solution for manufacturers looking to optimize precision CNC horizontal machining capabilities. With its advanced technology and durable design, the HP80F delivers exceptional results for both intricate, high-precision tasks and high-volume part production.
Worktable Size: 31.5" x 31.5"
Max Worktable Load: 2200 lbs
Max Worktable Rotate Speed: 25(A)/40(B)
Max Part Diameter/Height 72.83"
Axis Travel X/Y/Z: 59.06" x 52.17" x 25.98"
A-Axis Rotation Range: +/_ 120 Degrees
B-Axis Rotation Range: 360 Degrees
Rapid Traverse X/Y/X: 4725 IPM
Spindle Motor Power: 53.65/80.46 HP
Max Spindle Speed: 10,000 RPM
Spindle Torque: 87.8/132.8 ft-lb
Spindle Taper: HSK-A100
ATC Capacity: 40 Tools
Tool Shank: HSK-A100
Max Tool Dia./Length/Weight: 4.33" x 19.6" x 66 lbs
Tool Change Time T-T: 3 Seconds
Positioning Accuracy X/Y/Z: 0.0003"
Repeatability Accuracy X/Y/Z: 0.0002"
CNC Controller: SIEMENS
Chip Conveyor: Yes
