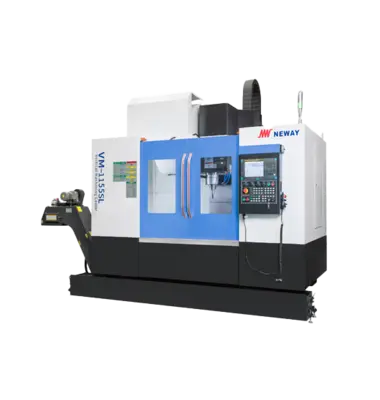

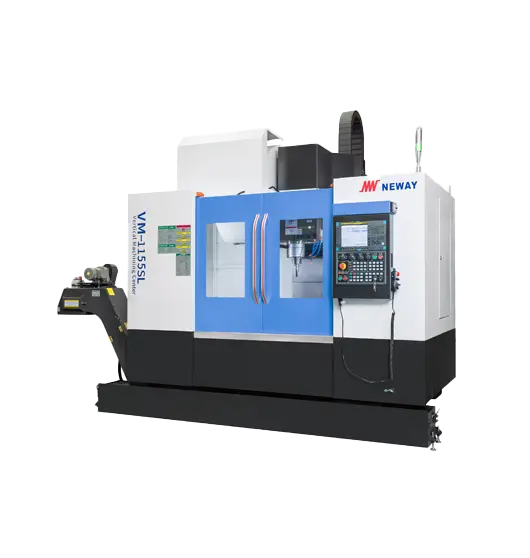

2025 NEWAY CNC VM1155SL/HL Vertical Machining Center
Have one to sell?
ConditionNew
1 available
New
The VM1155SL/HL Vertical Machining Center is a high-performance CNC machine designed for demanding machining applications, including aerospace manufacturing, defense industries, heavy machinery production, and energy sector fabrication. Built for precision and high-speed metal cutting, this machine delivers exceptional rigidity, accuracy, and repeatability, making it the ideal solution for complex and large-scale machining operations.
With a 7.5/11 kW (10/14.8 HP) spindle motor, a 12,000 RPM (15,000 RPM optional) direct-drive spindle, and a 24-tool automatic tool changer (ATC), the VM1155SL/HL ensures maximum spindle utilization and fast cycle times. The oil-cooled spindle system enhances thermal stability, while rapid traverse speeds of 1,890 inches per minute in X/Y and 1,180 IPM in Z allow for efficient roughing and finishing operations.
Key Benefits for CNC Production:
✅ Large 43.3" × 21.6" (1100 × 550 mm) worktable for heavy-duty machining
✅ High-speed spindle for enhanced material removal rates
✅ Advanced FANUC CNC control for seamless programming and automation
✅ Positioning accuracy of ±0.0003” and repeatability of ±0.0002” for precision parts
✅ Optimized for high-volume CNC machining, aerospace component production, and industrial fabrication
The VM1155SL/HL is an excellent choice for manufacturers seeking high-speed, high-accuracy machining capabilities for large and complex components. Contact us today for a quote or a machine demonstration!
VM1155SL/HL
Worktable Size: 43.3 × 21.7 in
Max. Worktable Load: 1320 lbs
Axis Travel (X/Y/Z): 39.4 / 21.7 / 22 in
Spindle Terminal to Worktable: 4.7 - 26.8 in
Spindle Center to Column Guideway: 22.8 in
Axis Rapid Travel Speed (X/Y/Z): 1890 / 1890 / 1890 in/min
Spindle Motor Power: 10 / 15 hp
Max. Spindle Speed: 12,000 [15,000] rpm
Spindle Taper: 7:24 taper NO.40
Spindle Temperature Control: Oil cooler
Number of Tools (Disc Type): 24
Tool Shank: MAS403 BT40
Max. Tool Diameter / Length / Weight: Ø3.15 in / 11.8 in / 17.6 lbs
Tool Change Time (T-T): 1.8 sec
Drilling Capacity (Normalized Carbon Steel): Ø1.57 in
Tapping Capacity (Normalized Carbon Steel): M20
Milling Capacity (Normalized Carbon Steel): 12.2 in³/min
Positioning Accuracy (X/Y/Z): 0.0003 in
Repeatability Accuracy (X/Y/Z): 0.0002 in
CNC System: NEWAY FANUC [SIEMENS/Mitsubishi]
Auto Chip Conveyor: Side way
Machine Weight: 13,230 lbs
