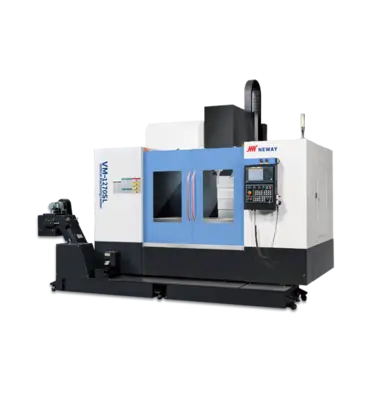

2025 NEWAY CNC VM1270SL Vertical Machining Center
Have one to sell?
ConditionNew
1 available
New
The VM1270SL/HL Vertical Machining Center is built for high-precision, heavy-duty CNC machining, catering to industries such as aerospace, heavy equipment manufacturing, oil and gas, and precision mold and die making. With its extra-large worktable (47.2" × 27.5") and high load capacity (1,760 lbs.), this machine is engineered for machining large workpieces with extreme accuracy and efficiency.
Equipped with a powerful 11/15 kW (14.8/20 HP) direct-drive spindle motor, a BT40 spindle taper, and a 24-tool automatic tool changer (ATC), the VM1270SL/HL is designed for rapid metal removal, high-speed milling, and uninterrupted production cycles. The oil-cooled spindle system maintains optimal thermal stability, ensuring consistent machining accuracy over long production runs.
Key Features for High-Volume CNC Machining:
✅ 12,000 RPM (15,000 RPM optional) direct-drive spindle for superior cutting performance
✅ Extra-large 47.2" × 27.5" (1200 × 700 mm) worktable for maximum machining versatility
✅ FANUC CNC control system with advanced motion control and precision programming
✅ Positioning accuracy of ±0.0003” and repeatability of ±0.0002” for high-tolerance parts
✅ Ideal for large aerospace structures, heavy industrial components, and precision machining
The VM1270SL/HL is the ultimate machining solution for manufacturers needing high-speed, high-precision, and heavy-duty CNC capabilities. Contact us today to learn how this machine can improve your production efficiency and part quality!
VM1270SL/HL
Worktable Size: 47.2 × 27.6 in
Max. Worktable Load: 1760 lbs
Axis Travel (X/Y/Z): 43.3 / 27.6 / 23.6 in
Spindle Terminal to Worktable: 5.5 - 29.1 in
Spindle Center to Column Guideway: 30.3 in
Axis Rapid Travel Speed (X/Y/Z): 1417 / 1417 / 1180 in/min
Spindle Motor Power: 15 / 20 hp
Max. Spindle Speed: 12,000 [15,000] rpm
Spindle Taper: 7:24 taper NO.40
Spindle Temperature Control: Oil cooler
Number of Tools (Disc Type): 24
Tool Shank: MAS403 BT40
Max. Tool Diameter / Length / Weight: Ø3.15 in / 11.8 in / 17.6 lbs
Tool Change Time (T-T): 1.8 sec
Drilling Capacity (Normalized Carbon Steel): Ø1.57 in
Tapping Capacity (Normalized Carbon Steel): M20
Milling Capacity (Normalized Carbon Steel): 12.2 in³/min
Positioning Accuracy (X/Y/Z): 0.0003 in
Repeatability Accuracy (X/Y/Z): 0.0002 in
CNC System: NEWAY FANUC [SIEMENS/Mitsubishi]
Auto Chip Conveyor: Side way
Machine Weight: 17,640 lbs
