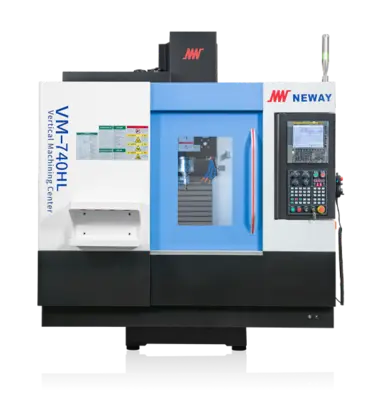

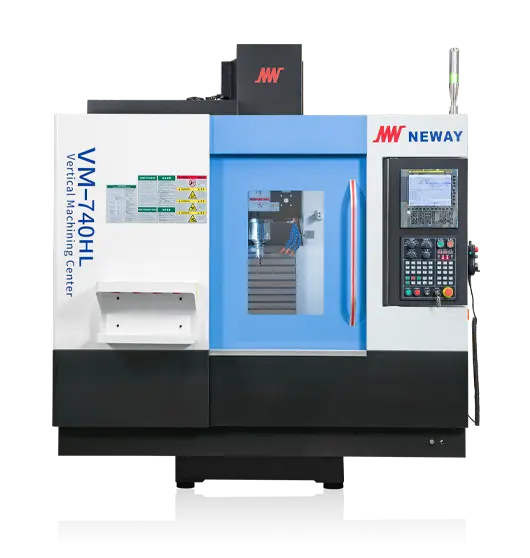

2025 NEWAY CNC VM740SL/HL Vertical Machining Center
Have one to sell?
ConditionNew
1 available
New
The VM740SL/HL Vertical Machining Center is designed for precision CNC machining, high-speed milling, and complex metalworking applications. Engineered for industries such as aerospace manufacturing, automotive production, medical device machining, and precision mold and die making, this machine offers exceptional rigidity, accuracy, and repeatability for demanding manufacturing environments.
With a robust 5.5/7.5 kW (7.4/10 HP) direct-drive spindle motor, the BT40 spindle taper, and a high-speed 20-tool automatic tool changer (ATC), the VM740SL/HL is optimized for rapid production cycles, reduced machining downtime, and superior surface finishes. The oil-cooled spindle system ensures thermal stability for precision machining, while rapid X/Y/Z axis travel speeds of 1,890 inches per minute allow for efficient material removal rates in steel, aluminum, titanium, and composite materials.
Key Features for Industrial CNC Machining:
✅ 12,000 RPM (15,000 RPM optional) high-speed spindle for precision metal cutting
✅ Large 29.5" × 16.5" (750 × 420 mm) worktable for versatile machining applications
✅ Advanced FANUC CNC control system for seamless programming and automation
✅ High-accuracy positioning (±0.0003") and repeatability (±0.0002") for tight-tolerance machining
✅ Ideal for aerospace components, automotive mold machining, medical device prototyping, and custom fabrication
The VM740SL/HL is the perfect solution for high-volume CNC production, prototyping, and contract manufacturing, offering unmatched efficiency, durability, and precision. Contact us today to learn how this machining center can streamline your production process and maximize ROI!
VM740SL/HL
Worktable Size: 29.5 × 16.5 in
Max. Worktable Load: 770 lbs
Axis Travel (X/Y/Z): 25.6 / 16.5 / 19.7 in
Spindle Terminal to Worktable: 4.7 - 24.4 in
Spindle Center to Column Guideway: 19.1 in
Axis Rapid Travel Speed (X/Y/Z): 1890 / 1890 / 1890 in/min
Spindle Motor Power: 7.5 / 10 hp
Max. Spindle Speed: 12,000 [15,000] rpm
Spindle Taper: 7:24 taper NO.40
Spindle Temperature Control: Oil cooler
Number of Tools (Disc Type): 20
Tool Shank: MAS403 BT40
Max. Tool Diameter / Length / Weight: Ø3.15 in / 11.8 in / 17.6 lbs
Tool Change Time (T-T): 1.7 sec
Drilling Capacity (Normalized Carbon Steel): Ø1.18 in
Tapping Capacity (Normalized Carbon Steel): M16
Milling Capacity (Normalized Carbon Steel): 9.15 in³/min
Positioning Accuracy (X/Y/Z): 0.0003 in
Repeatability Accuracy (X/Y/Z): 0.0002 in
CNC System: NEWAY FANUC [SIEMENS/Mitsubishi]
Auto Chip Conveyor: [Side way (rear)]
Machine Weight: 8,380 lbs
