2025 NEWAY NL251M Turning Center - Live Tooling CNC Lathe - In Stock USA
Have one to sell?
ConditionUsed
1 available

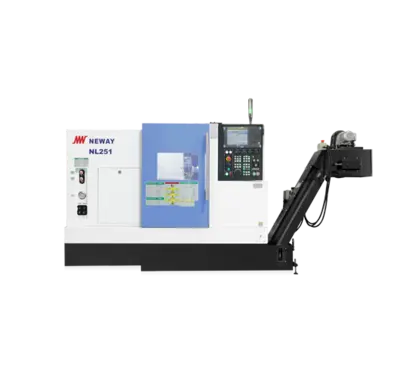

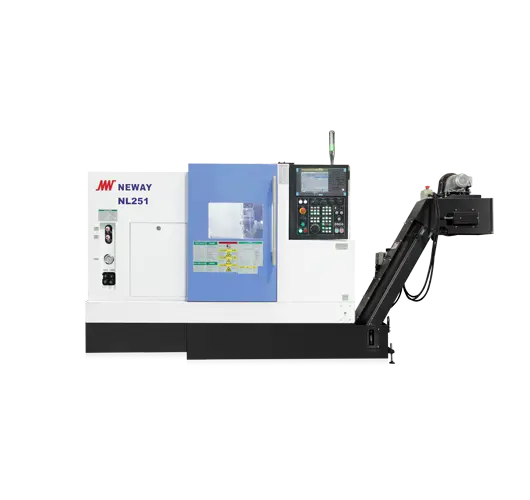

The Neway NL251M is a high-performance CNC turning center designed for precision machining in demanding production environments. This model combines robust construction with advanced features to deliver exceptional accuracy and efficiency. This machine also comes with live tooling making it even more versatile for your most challenging parts.
Neway NL251 CNC Lathe – Specifications
Max. Swing over Bed: 21.65 in
Max. Swing over Saddle: 12.99 in
Max. Turning Diameter: 14.17 in
Max. Turning Length: 12.99 in
Max. Bar Capacity: 1.73 in
Spindle Speed: 5000 rpm
Spindle End: A2-6
Spindle Bore: 2.20 in
Spindle Motor Power: 10.06 / 14.75 HP
Hydraulic Chuck: 6" Hollow Chuck
Tailstock Quill Diameter: 2.95 in
Tailstock Quill Travel: 3.15 in
Tailstock Taper: #4 Morse Live Center
Travel (X / Z): 9.45 / 12.99 in
Rapid Traverse (X / Z): 78.74 / 98.43 ft/min
Turret Positions: 8-Station Servo Turret
External Turning Tool Holder Size: 0.98 x 0.98 in
Boring Tool Holder Diameter: 1.57 in
Positioning Accuracy (X / Z): 0.00024 in
Repeatability (X / Z): 0.00016 in
